FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STP25N80K5MOSFET N-CH 800V 19.5A TO220 |
1,000 |
|
Datasheet |
SuperMESH5™ | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 19.5A (Tc) | 10V | 260mOhm @ 19.5A, 10V | 5V @ 100µA | 40 nC @ 10 V | ±30V | 1600 pF @ 100 V | - | 250W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 |
|
R6030JNZC17MOSFET N-CH 600V 30A TO3PF |
300 |
|
Datasheet |
- | TO-3P-3 Full Pack | Bag | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 30A (Tc) | 15V | 143mOhm @ 15A, 15V | 7V @ 5.5mA | 74 nC @ 15 V | ±30V | 2500 pF @ 100 V | - | 93W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-3PF |
|
TK160F10N1,LXGQMOSFET N-CH 100V 160A TO220SM |
4,477 |
|
Datasheet |
U-MOSVIII-H | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 100 V | 160A (Ta) | 10V | 2.4mOhm @ 80A, 10V | 4V @ 1mA | 121 nC @ 10 V | ±20V | 8510 pF @ 10 V | - | 375W (Tc) | 175°C | - | - | Surface Mount | TO-220SM(W) |
|

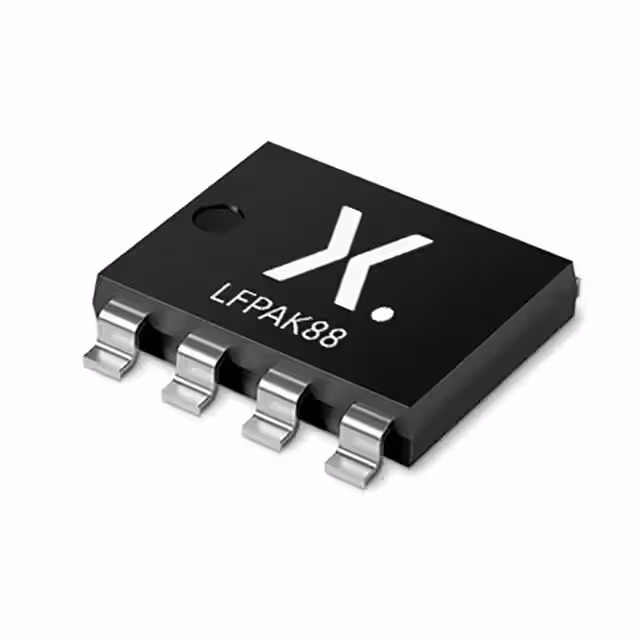

BUK7S1R2-40HJMOSFET N-CH 40V 300A LFPAK88 |
4,578 |
|
Datasheet |
- | SOT-1235 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 300A (Tc) | 10V | 1.2mOhm @ 25A, 10V | 3.6V @ 1mA | 112 nC @ 10 V | +20V, -10V | 8420 pF @ 25 V | - | 294W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | LFPAK88 (SOT1235) |
|

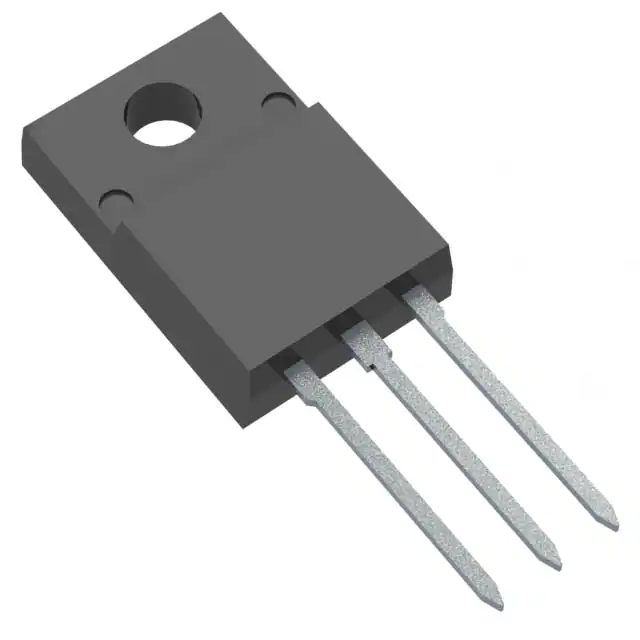

TK22A65X,S5XX35 PB-F POWER MOSFET TRANSISTOR |
183 |
|
Datasheet |
- | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 22A (Ta) | 10V | 150mOhm @ 11A, 10V | 3.5V @ 1.1mA | 50 nC @ 10 V | ±30V | 2400 pF @ 300 V | - | 45W (Tc) | 150°C | - | - | Through Hole | TO-220SIS |
|
|
IPT022N10NF2SATMA1MOSFET |
1,800 |
|
Datasheet |
StrongIRFET™ 2 | 8-PowerSFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 29A (Ta), 236A (Tc) | 6V, 10V | 2.25mOhm @ 150A, 10V | 3.8V @ 169µA | 155 nC @ 10 V | ±20V | 7300 pF @ 50 V | - | 3.8W (Ta), 250W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-HSOF-8-10 |
|
STH150N10F7-2MOSFET N-CH 100V 110A H2PAK-2 |
760 |
|
Datasheet |
DeepGATE™, STripFET™ VII | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 110A (Tc) | 10V | 3.9mOhm @ 55A, 10V | 4.5V @ 250µA | 117 nC @ 10 V | ±20V | 8115 pF @ 50 V | - | 250W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | H2PAK-2 |
|
IXFP38N30X3MMOSFET N-CH 300V 38A TO220 |
2,357 |
|
Datasheet |
HiPerFET™, Ultra X3 | TO-220-3 Full Pack, Isolated Tab | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 300 V | 38A (Tc) | - | - | - | 35 nC @ 10 V | ±20V | 2440 pF @ 25 V | - | 34W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 Isolated Tab |
|
R8011KNXC7GHIGH-SPEED SWITCHING NCH 800V 11 |
2,172 |
|
Datasheet |
- | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 11A (Ta) | 10V | 450mOhm @ 5.5A, 10V | 4.5V @ 5.5mA | 37 nC @ 10 V | ±20V | 1200 pF @ 100 V | - | 65W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-220FM |
|
IXTP3N100PMOSFET N-CH 1000V 3A TO220AB |
263 |
|
Datasheet |
Polar P3™ | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 3A (Tc) | 10V | 4.8Ohm @ 1.5A, 10V | 4.5V @ 250µA | 39 nC @ 10 V | ±20V | 1100 pF @ 25 V | - | 125W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220-3 |
|
|
IXFP36N20X3MOSFET N-CH 200V 36A TO220 |
154 |
|
Datasheet |
HiPerFET™, Ultra X3 | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 36A (Tc) | 10V | 45mOhm @ 18A, 10V | 4.5V @ 500µA | 21 nC @ 10 V | ±20V | 1425 pF @ 25 V | - | 176W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220-3 |
|
FCPF190N60MOSFET N-CH 600V 20.2A TO220F |
635 |
|
Datasheet |
SuperFET® II | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 20.2A (Tc) | 10V | 199mOhm @ 10A, 10V | 3.5V @ 250µA | 74 nC @ 10 V | ±20V | 2950 pF @ 25 V | - | 39W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220F-3 |
|
IRF644STRRPBFMOSFET N-CH 250V 14A D2PAK |
605 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 250 V | 14A (Tc) | 10V | 280mOhm @ 8.4A, 10V | 4V @ 250µA | 68 nC @ 10 V | ±20V | 1300 pF @ 25 V | - | 3.1W (Ta), 125W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
|
NTPF250N65S3HPOWER MOSFET, N-CHANNEL, SUPERFE |
496 |
|
Datasheet |
SuperFET® III | TO-220-3 Full Pack | Tube | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 650 V | 13A (Tj) | 10V | 250mOhm @ 6.5A, 10V | 4V @ 1.1mA | 24 nC @ 10 V | ±30V | 1261 pF @ 400 V | - | 29W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220FP |
|
IXFH34N50P3MOSFET N-CH 500V 34A TO247AD |
292 |
|
Datasheet |
HiPerFET™, Polar3™ | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 34A (Tc) | 10V | 170mOhm @ 17A, 10V | 5V @ 4mA | 60 nC @ 10 V | ±30V | 3260 pF @ 25 V | - | 695W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247AD (IXFH) |
|
|
R6018JNXC7GMOSFET N-CH 600V 18A TO220FM |
2,795 |
|
Datasheet |
- | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 18A (Tc) | 15V | 286mOhm @ 9A, 15V | 7V @ 4.2mA | 42 nC @ 15 V | ±30V | 1300 pF @ 100 V | - | 72W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220FM |
|
|
IPP60R120C7XKSA1MOSFET N-CH 600V 19A TO220-3 |
622 |
|
Datasheet |
CoolMOS™ C7 | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 19A (Tc) | 10V | 120mOhm @ 7.8A, 10V | 4V @ 390µA | 34 nC @ 10 V | ±20V | 1500 pF @ 400 V | - | 92W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO220-3 |
|
STL26N60DM6MOSFET N-CH 600V 15A PWRFLAT HV |
2,997 |
|
Datasheet |
MDmesh™ DM6 | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 15A (Tc) | 10V | 215mOhm @ 7.5A, 10V | 4.75V @ 250µA | 24 nC @ 10 V | ±25V | 940 pF @ 100 V | - | 110W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerFlat™ (8x8) HV |
|
IPB024N08N5ATMA1MOSFET N-CH 80V 120A D2PAK |
990 |
|
Datasheet |
OptiMOS™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 120A (Tc) | 6V, 10V | 2.4mOhm @ 100A, 10V | 3.8V @ 154µA | 123 nC @ 10 V | ±20V | 8970 pF @ 40 V | - | 214W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-TO263-3 |
|
|
IPW65R155CFD7XKSA1HIGH POWER_NEW |
240 |
|
Datasheet |
CoolMOS™ CFD7 | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 15A (Tc) | 10V | 155mOhm @ 6.4A, 10V | 4.5V @ 320µA | 28 nC @ 10 V | ±20V | 1283 pF @ 400 V | - | 77W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO247-3 |
