FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R6530KNZC17MOSFET N-CH 650V 30A TO3 |
300 |
|
Datasheet |
- | TO-3P-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 30A (Tc) | 10V | 140mOhm @ 14.5A, 10V | 5V @ 960µA | 56 nC @ 10 V | ±20V | 2350 pF @ 25 V | - | 86W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-3PF |
|
|
R6530ENZC17MOSFET N-CH 650V 30A TO3 |
300 |
|
Datasheet |
- | TO-3P-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 30A (Tc) | 10V | 140mOhm @ 14.5A, 10V | 4V @ 960µA | 90 nC @ 10 V | ±20V | 2100 pF @ 25 V | - | 86W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-3PF |
.jpg)
|
RSS095N05HZGTBNCH 45V 9.5A POWER MOSFET: RSS09 |
2,250 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 45 V | 9.5A (Ta) | 4V, 10V | 16mOhm @ 9.5A, 10V | 2.5V @ 1mA | 26.5 nC @ 5 V | ±20V | 1830 pF @ 10 V | - | 1.4W (Ta) | 150°C (TJ) | - | - | Surface Mount | 8-SOP |
|

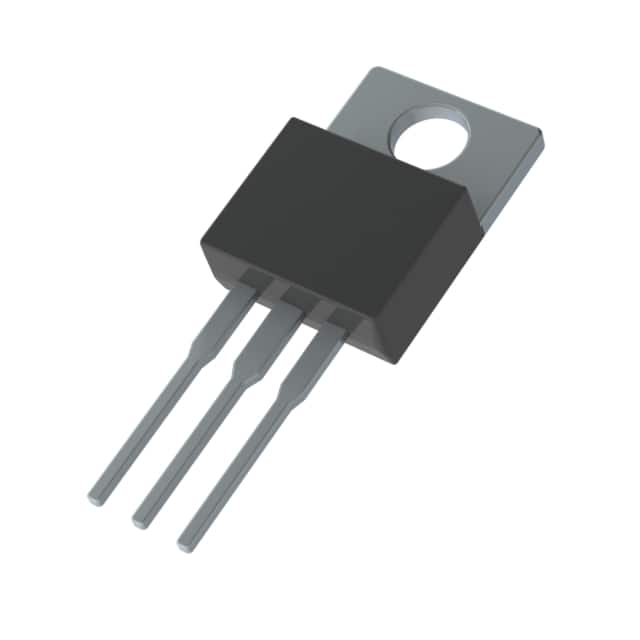

PJMF390N65EC_T0_00001650V SUPER JUNCTION MOSFET |
1,785 |
|
Datasheet |
- | TO-220-3 Full Pack, Isolated Tab | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 10A (Tc) | 10V | 390mOhm @ 5A, 10V | 4V @ 250µA | 19 nC @ 10 V | ±30V | 726 pF @ 400 V | - | 29.5W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | ITO-220AB-F |
|
STP12NK30ZMOSFET N-CH 300V 9A TO220AB |
1,490 |
|
Datasheet |
SuperMESH™ | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 300 V | 9A (Tc) | 10V | 400mOhm @ 4.5A, 10V | 4.5V @ 50µA | 35 nC @ 10 V | ±30V | 670 pF @ 25 V | - | 90W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 |
|
NVMFS4C302NT1GMOSFET N-CH 30V 43A/241A 5DFN |
1,455 |
|
Datasheet |
- | 8-PowerTDFN, 5 Leads | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 43A (Ta), 241A (Tc) | 4.5V, 10V | 1.15mOhm @ 30A, 10V | 2.2V @ 250µA | 82 nC @ 10 V | ±20V | 5780 pF @ 15 V | - | 3.75W (Ta), 115W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 5-DFN (5x6) (8-SOFL) |
|
N0436N-ZK-E1-AYABU / MOSFET |
5,857 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 56A (Ta) | 10V | 4.7mOhm @ 28A, 10V | 4V @ 1mA | 62 nC @ 10 V | ±20V | 3200 pF @ 25 V | - | 1W (Ta), 87.4W (Tc) | 150°C | - | - | Surface Mount | TO-252 |
|
|
RJK5035DPP-A0#T2MOSFET N-CH 600V 5A TO220FP |
2,015 |
|
Datasheet |
- | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 5A (Ta) | 10V | 1.6Ohm @ 2.5A, 10V | - | 19 nC @ 10 V | ±30V | 600 pF @ 25 V | - | 29W (Ta) | 150°C | - | - | Through Hole | TO-220FP |
|
|
SIHA15N80AE-GE3MOSFET N-CH 800V 6A TO220 |
973 |
|
Datasheet |
E | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 6A (Tc) | 10V | 350mOhm @ 7.5A, 10V | 4V @ 250µA | 53 nC @ 10 V | ±30V | 1093 pF @ 100 V | - | 33W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 Full Pack |
|

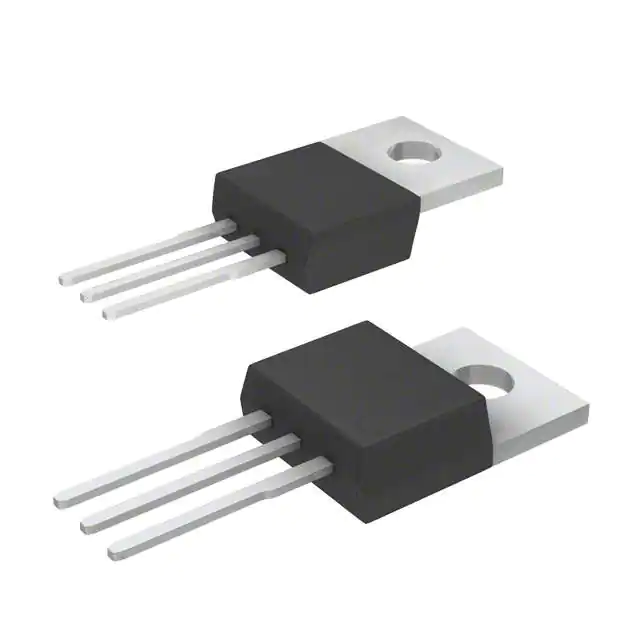

IPP60R210CFD7XKSA1MOSFET N CH |
435 |
|
Datasheet |
CoolMOS™ CFD7 | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 12A (Tc) | 10V | 210mOhm @ 4.9A, 10V | 4.5V @ 240µA | 23 nC @ 10 V | ±20V | 1015 pF @ 400 V | - | 64W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO220-3 |
|
FCPF1300N80ZMOSFET N-CH 800V 4A TO220F |
380 |
|
Datasheet |
SuperFET® II | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 4A (Tc) | 10V | 1.3Ohm @ 2A, 10V | 4.5V @ 400µA | 21 nC @ 10 V | ±20V | 880 pF @ 100 V | - | 24W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220F-3 |
|
TK1R4F04PB,LXGQMOSFET N-CH 40V 160A TO220SM |
1,000 |
|
Datasheet |
U-MOSIX-H | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 160A (Ta) | 6V, 10V | 1.9mOhm @ 80A, 6V | 3V @ 500µA | 103 nC @ 10 V | ±20V | 5500 pF @ 10 V | - | 205W (Tc) | 175°C | - | - | Surface Mount | TO-220SM(W) |
|
IPA60R180C7XKSA1MOSFET N-CH 600V 9A TO220-FP |
203 |
|
Datasheet |
CoolMOS™ C7 | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 9A (Tc) | 10V | 180mOhm @ 5.3A, 10V | 4V @ 260µA | 24 nC @ 10 V | ±20V | 1080 pF @ 400 V | - | 29W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO220 Full Pack |
;;2.jpg)
|
STD8N65M5MOSFET N-CH 650V 7A DPAK |
4,523 |
|
Datasheet |
MDmesh™ V | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 7A (Tc) | 10V | 600mOhm @ 3.5A, 10V | 5V @ 250µA | 15 nC @ 10 V | ±25V | 690 pF @ 100 V | - | 70W (Tc) | 150°C (TJ) | - | - | Surface Mount | DPAK |
|
STF16N60M6MOSFET N-CH 600V TO220-3 FP |
1,174 |
|
Datasheet |
UltraFASTmesh™ | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 12A (Tc) | 10V | 320mOhm @ 6A, 10V | 4.75V @ 250µA | 16.7 nC @ 10 V | ±25V | 575 pF @ 100 V | - | 25W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220FP |
|
HUF75639S3STMOSFET N-CH 100V 56A D2PAK |
735 |
|
Datasheet |
UltraFET™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 56A (Tc) | 10V | 25mOhm @ 56A, 10V | 4V @ 250µA | 130 nC @ 20 V | ±20V | 2000 pF @ 25 V | - | 200W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|

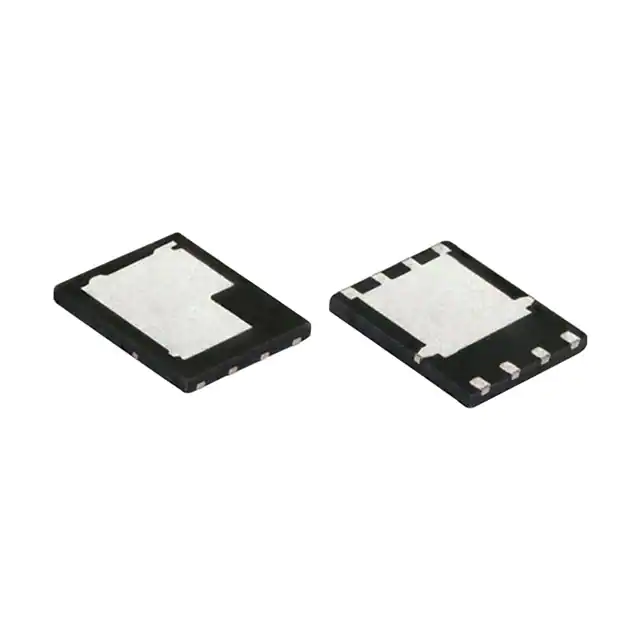

SIDR608EP-T1-RE3N-CHANNEL 45 V (D-S) 175C MOSFET |
5,990 |
|
Datasheet |
TrenchFET® | PowerPAK® SO-8 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 45 V | 56A (Ta), 228A (Tc) | 4.5V, 10V | 1.2mOhm @ 20A, 10V | 2.3V @ 250µA | 167 nC @ 10 V | +20V, -16V | 8900 pF @ 20 V | - | 7.5W (Ta), 125W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PowerPAK® SO-8DC |
|
|
STP76NF75MOSFET N-CH 75V 80A TO220 |
987 |
|
Datasheet |
STripFET™ II | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 75 V | 80A (Tc) | 10V | 11mOhm @ 40A, 10V | 4V @ 250µA | 160 nC @ 10 V | ±20V | 3700 pF @ 25 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220 |
|
|
IPF013N04NF2SATMA1TRENCH <= 40V |
800 |
|
Datasheet |
StrongIRFET™2 | TO-263-7, D2PAK (6 Leads + Tab) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 40A (Ta), 232A (Tc) | 6V, 10V | 1.35mOhm @ 100A, 10V | 3.4V @ 126µA | 159 nC @ 10 V | ±20V | 7500 pF @ 20 V | - | 3.8W (Ta), 188W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-TO263-7-U02 |
|
FCP360N65S3R0MOSFET N-CH 650V 10A TO220-3 |
407 |
|
Datasheet |
SuperFET® III | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 10A (Tc) | 10V | 360mOhm @ 5A, 10V | 4.5V @ 1mA | 18 nC @ 10 V | ±30V | 730 pF @ 400 V | - | 83W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220-3 |
