FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

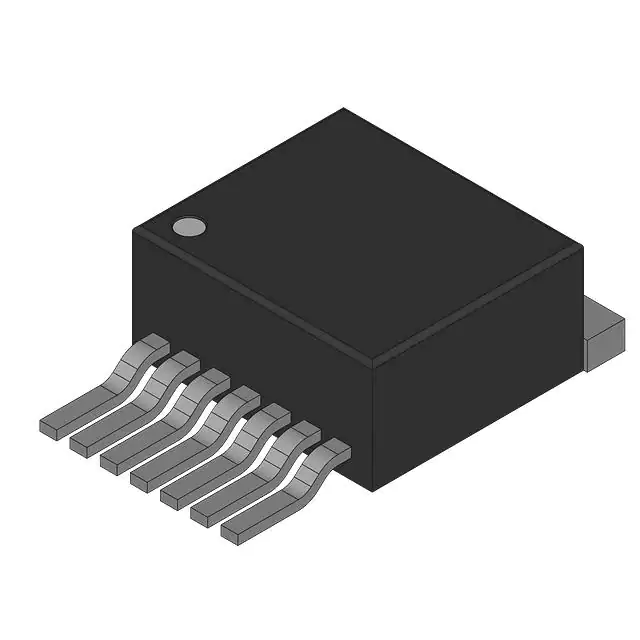

AUIRFS4115-7TRLMOSFET N-CH 150V 105A D2PAK |
0 |
|
Datasheet |
HEXFET® | TO-263-7, D2PAK (6 Leads + Tab) | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 150 V | 105A (Tc) | 10V | 11.8mOhm @ 63A, 10V | 5V @ 250µA | 110 nC @ 10 V | ±20V | 5320 pF @ 50 V | - | 380W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK (7-Lead) |
|
IRFB7746PBFMOSFET N-CH 75V 59A TO220AB |
0 |
|
Datasheet |
StrongIRFET™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 75 V | 59A (Tc) | 6V, 10V | 10.6mOhm @ 35A, 10V | 3.7V @ 100µA | 83 nC @ 10 V | ±20V | 3049 pF @ 25 V | - | 99W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
|
|
IRFB7787PBFMOSFET N-CH 75V 76A TO220AB |
0 |
|
Datasheet |
HEXFET®, StrongIRFET™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 75 V | 76A (Tc) | 6V, 10V | 8.4mOhm @ 46A, 10V | 3.7V @ 100µA | 109 nC @ 10 V | ±20V | 4020 pF @ 25 V | - | 125W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
|
IRFSL7430PBFMOSFET N-CH 40V 195A D2PAK |
0 |
|
Datasheet |
HEXFET®, StrongIRFET™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 195A (Tc) | 6V, 10V | 1.2mOhm @ 100A, 10V | 3.9V @ 250µA | 460 nC @ 10 V | ±20V | 14240 pF @ 25 V | - | 375W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK |
|
IRFSL7434PBFMOSFET N-CH 40V 195A TO262 |
0 |
|
Datasheet |
HEXFET®, StrongIRFET™ | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 195A (Tc) | 6V, 10V | 1.6mOhm @ 100A, 10V | 3.9V @ 250µA | 324 nC @ 10 V | ±20V | 10820 pF @ 25 V | - | 294W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-262 |
|
|
IRFSL7530PBFMOSFET N-CH 60V 195A TO262 |
0 |
|
Datasheet |
HEXFET®, StrongIRFET™ | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 195A (Tc) | 6V, 10V | 2mOhm @ 100A, 10V | 3.7V @ 250µA | 411 nC @ 10 V | ±20V | 13703 pF @ 25 V | - | 375W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-262 |
|
|
IRFSL7534PBFMOSFET N-CH 60V 195A TO262 |
0 |
|
Datasheet |
HEXFET®, StrongIRFET™ | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 195A (Tc) | 6V, 10V | 2.4mOhm @ 100A, 10V | 3.7V @ 250µA | 279 nC @ 10 V | ±20V | 10034 pF @ 25 V | - | 294W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-262 |
|
|
IRFSL7787PBFMOSFET N-CH 75V 76A TO262 |
0 |
|
Datasheet |
HEXFET®, StrongIRFET™ | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 75 V | 76A (Tc) | 6V, 10V | 8.4mOhm @ 46A, 10V | 3.7V @ 100µA | 109 nC @ 10 V | ±20V | 4020 pF @ 25 V | - | 125W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-262 |
|
|
IRLS3813TRLPBFMOSFET N-CH 30V 160A D2PAK |
0 |
|
Datasheet |
HEXFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 160A (Tc) | 10V | 1.95mOhm @ 148A, 10V | 2.35V @ 150µA | 83 nC @ 4.5 V | ±20V | 8020 pF @ 25 V | - | 195W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263AB (D2PAK) |
|
AOT10T60PLMOSFET N-CH 600V 10A TO220 |
0 |
|
Datasheet |
- | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 10A (Tc) | 10V | 700mOhm @ 5A, 10V | 5V @ 250µA | 40 nC @ 10 V | ±30V | 1595 pF @ 100 V | - | 208W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 |
_SOT226 Pkg.jpg)
|
PSMN8R5-108ESQMOSFET N-CH 108V 100A I2PAK |
0 |
|
- |
- | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 108 V | 100A (Tj) | 10V | 8.5mOhm @ 25A, 10V | 4V @ 1mA | 111 nC @ 10 V | ±20V | 5512 pF @ 50 V | - | 263W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | I2PAK |
|
TK10A60E,S5XMOSFET N-CH 600V 10A TO220SIS |
0 |
|
Datasheet |
- | TO-220-3 Full Pack | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 10A (Ta) | 10V | 750mOhm @ 5A, 10V | 4V @ 1mA | 40 nC @ 10 V | ±30V | 1300 pF @ 25 V | - | 45W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-220SIS |
|
|
TK12A50E,S5XMOSFET N-CH 500V 12A TO220SIS |
0 |
|
Datasheet |
- | TO-220-3 Full Pack | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 12A (Ta) | 10V | 520mOhm @ 6A, 10V | 4V @ 1.2mA | 40 nC @ 10 V | ±30V | 1300 pF @ 25 V | - | 45W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-220SIS |
|
|
BUK761R5-40EJMOSFET N-CH 40V 120A D2PAK |
0 |
|
- |
TrenchMOS™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 120A (Tc) | 10V | 1.51mOhm @ 25A, 10V | 4V @ 1mA | 145 nC @ 10 V | ±20V | 11340 pF @ 25 V | - | 349W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK |
.jpg)
|
2SJ652-1EMOSFET P-CH 60V 28A TO220F-3SG |
0 |
|
- |
- | TO-220-3 Full Pack | Tube | Obsolete | P-Channel | MOSFET (Metal Oxide) | 60 V | 28A (Ta) | 4V, 10V | 38mOhm @ 14A, 10V | - | 80 nC @ 10 V | ±20V | 4360 pF @ 20 V | - | 2W (Ta), 30W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-220F-3SG |
|
2SJ661-1EMOSFET P-CH 60V 38A TO262-3 |
0 |
|
Datasheet |
- | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | P-Channel | MOSFET (Metal Oxide) | 60 V | 38A (Ta) | 4V, 10V | 39mOhm @ 19A, 10V | - | 80 nC @ 10 V | ±20V | 4360 pF @ 20 V | - | 1.65W (Ta), 65W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-262-3 |
|
|
2SK3703-1EMOSFET N-CH 60V 30A TO220F-3SG |
0 |
|
- |
- | TO-220-3 Full Pack | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 30A (Ta) | 4V, 10V | 26mOhm @ 15A, 10V | - | 40 nC @ 10 V | ±20V | 1780 pF @ 20 V | - | 2W (Ta), 25W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-220F-3SG |
|
|
2SK3707-1EMOSFET N-CH 100V 20A TO220F-3SG |
0 |
|
- |
- | TO-220-3 Full Pack | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 20A (Ta) | 4V, 10V | 60mOhm @ 10A, 10V | - | 44 nC @ 10 V | ±20V | 2150 pF @ 20 V | - | 2W (Ta), 25W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-220F-3SG |
|
|
2SK3745LS-1EMOSFET N-CH 1500V 2A TO220F-3FS |
0 |
|
Datasheet |
- | TO-220-3 Full Pack | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 1500 V | 2A (Ta) | 10V | 13Ohm @ 1A, 10V | - | 37.5 nC @ 10 V | ±20V | 380 pF @ 30 V | - | 2W (Ta), 35W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-220F-3FS |
|
2SK3746-1EMOSFET N-CH 1500V 2A TO3P-3L |
0 |
|
Datasheet |
- | TO-3P-3, SC-65-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 1500 V | 2A (Ta) | 10V | 13Ohm @ 1A, 10V | - | 37.5 nC @ 10 V | ±20V | 380 pF @ 30 V | - | 2.5W (Ta), 110W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-3P-3L |
