FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IRFU320PBFMOSFET N-CH 400V 3.1A TO251AA |
2,342 |
|
Datasheet |
- | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 400 V | 3.1A (Tc) | 10V | 1.8Ohm @ 1.9A, 10V | 4V @ 250µA | 20 nC @ 10 V | ±20V | 350 pF @ 25 V | - | 2.5W (Ta), 42W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-251AA |
|
NVMFS5C468NLWFAFT1GMOSFET N-CH 40V 37A 5DFN |
1,205 |
|
Datasheet |
- | 8-PowerTDFN, 5 Leads | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 37A (Tc) | 4.5V, 10V | 10.3mOhm @ 20A, 10V | 2V @ 250µA | 7.3 nC @ 10 V | ±20V | 570 pF @ 25 V | - | 28W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount, Wettable Flank | 5-DFNW (4.9x5.9) (8-SOFL-WF) |
|
R6509ENXC7G650V 9A TO-220FM, LOW-NOISE POWE |
974 |
|
Datasheet |
- | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 9A (Ta) | 10V | 585mOhm @ 2.8A, 10V | 4V @ 230µA | 24 nC @ 10 V | ±20V | 430 pF @ 25 V | - | 48W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-220FM |
|
IPA50R280CEXKSA2MOSFET N-CH 500V 7.5A TO220 |
450 |
|
Datasheet |
CoolMOS™ CE | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 7.5A (Tc) | 13V | 280mOhm @ 4.2A, 13V | 3.5V @ 350µA | 32.6 nC @ 10 V | ±20V | 773 pF @ 100 V | - | 30.4W (Tc) | -40°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO220-3-FP |
|
STU5N62K3MOSFET N-CH 620V 4.2A IPAK |
3,000 |
|
Datasheet |
SuperMESH3™ | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 620 V | 4.2A (Tc) | 10V | 1.6Ohm @ 2.1A, 10V | 4.5V @ 50µA | 26 nC @ 10 V | ±30V | 680 pF @ 50 V | - | 70W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-251 (IPAK) |
|
SISS02DN-T1-GE3MOSFET N-CH 25V 51A/80A PPAK |
2,988 |
|
Datasheet |
TrenchFET® Gen IV | PowerPAK® 1212-8S | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 25 V | 51A (Ta), 80A (Tc) | 4.5V, 10V | 1.2mOhm @ 15A, 10V | 2.2V @ 250µA | 83 nC @ 10 V | +16V, -12V | 4450 pF @ 10 V | - | 5W (Ta), 65.7W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® 1212-8S |
|
|
SQJ140EP-T1_GE3MOSFET N-CH 40V 266A PPAK SO-8 |
2,945 |
|
Datasheet |
TrenchFET® Gen IV | PowerPAK® SO-8 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 266A (Tc) | 10V | 2.1mOhm @ 15A, 10V | 3.5V @ 250µA | 64 nC @ 10 V | ±20V | 3855 pF @ 25 V | - | 263W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PowerPAK® SO-8 |
|
PSMN5R0-40MSHXMOSFET N-CH 40V 85A LFPAK33 |
2,661 |
|
Datasheet |
TrenchMOS™ | SOT-1210, 8-LFPAK33 (5-Lead) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 85A (Tc) | 10V | 5mOhm @ 20A, 10V | 3.6V @ 1mA | 29 nC @ 10 V | ±20V | 2010 pF @ 20 V | - | 83W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | LFPAK33 |
|
SIHP5N80AE-GE3E SERIES POWER MOSFET TO-220AB, |
988 |
|
Datasheet |
E | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 4.4A (Tc) | 10V | 1.35Ohm @ 1.5A, 10V | 4V @ 250µA | 16.5 nC @ 10 V | ±30V | 321 pF @ 100 V | - | 62.5W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220AB |
|
SQ4410EY-T1_BE3MOSFET N-CH 30V 15A 8SOIC |
4,728 |
|
Datasheet |
TrenchFET® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 15A (Tc) | 4.5V, 10V | 12mOhm @ 10A, 10V | 2.5V @ 250µA | 53 nC @ 10 V | ±20V | 2385 pF @ 25 V | - | 5W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 8-SOIC |
|
IRFR9014TRLPBFMOSFET P-CH 60V 5.1A DPAK |
2,555 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 60 V | 5.1A (Tc) | 10V | 500mOhm @ 3.1A, 10V | 4V @ 250µA | 12 nC @ 10 V | ±20V | 270 pF @ 25 V | - | 2.5W (Ta), 25W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DPAK |
|
|
IRFU9010PBFMOSFET P-CH 50V 5.3A TO251AA |
527 |
|
Datasheet |
- | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Active | P-Channel | MOSFET (Metal Oxide) | 50 V | 5.3A (Tc) | 10V | 500mOhm @ 2.8A, 10V | 4V @ 250µA | 9.1 nC @ 10 V | ±20V | 240 pF @ 25 V | - | 25W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-251AA |
|
IXFA4N85XMOSFET N-CH 850V 3.5A TO263 |
300 |
|
Datasheet |
HiPerFET™, Ultra X | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 850 V | 3.5A (Tc) | 10V | 2.5Ohm @ 2A, 10V | 5.5V @ 250µA | 7 nC @ 10 V | ±30V | 247 pF @ 25 V | - | 150W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263 (IXFA) |
|

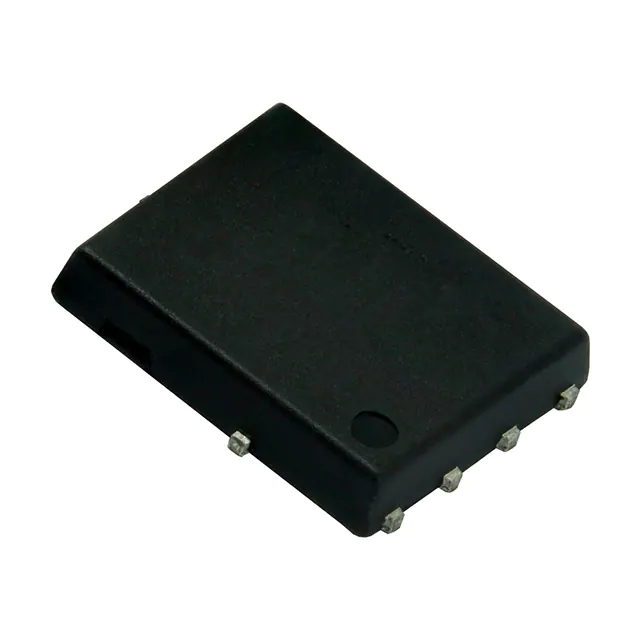

SIR184LDP-T1-RE3N-CHANNEL 60 V (D-S) MOSFET POWE |
5,288 |
|
Datasheet |
TrenchFET® | PowerPAK® SO-8 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 21.5A (Ta), 73A (Tc) | 4.5V, 10V | 5.4mOhm @ 10A, 10V | 3V @ 250µA | 41 nC @ 10 V | ±20V | 1950 pF @ 30 V | - | 5W (Ta), 56.8W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® SO-8 |
.jpg)
|
RXH100N03TB14V DRIVE NCH MOSFET: MOSFETS ARE |
2,442 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 10A (Ta) | 4V, 10V | 13mOhm @ 10A, 10V | 2.5V @ 1mA | 11 nC @ 5 V | ±20V | 800 pF @ 10 V | - | 2W (Ta) | 150°C | - | - | Surface Mount | 8-SOP |
|
|
TSM60NC390CH C5G600V, 11A, SINGLE N-CHANNEL POWE |
12,986 |
|
- |
- | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 11A (Tc) | 10V | 390mOhm @ 3.8A, 10V | 5V @ 1mA | 21.4 nC @ 10 V | ±20V | 818 pF @ 100 V | - | 125W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-251 (IPAK) |
|
STF5N60M2MOSFET N-CH 600V 3.7A TO220FP |
1,959 |
|
Datasheet |
MDmesh™ II Plus | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 3.7A (Tc) | 10V | 1.4Ohm @ 1.85A, 10V | 4V @ 250µA | 4.5 nC @ 10 V | ±25V | 165 pF @ 100 V | - | 20W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-220FP |
|
|
IRFU9020PBFMOSFET P-CH 50V 9.9A TO251AA |
8,140 |
|
Datasheet |
- | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Active | P-Channel | MOSFET (Metal Oxide) | 50 V | 9.9A (Tc) | 10V | 280mOhm @ 5.7A, 10V | 4V @ 250µA | 14 nC @ 10 V | ±20V | 490 pF @ 25 V | - | 42W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-251AA |
|
|
SI4686DY-T1-GE3MOSFET N-CH 30V 18.2A 8SO |
6,271 |
|
Datasheet |
TrenchFET®, WFET® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 18.2A (Tc) | 4.5V, 10V | 9.5mOhm @ 13.8A, 10V | 3V @ 250µA | 26 nC @ 10 V | ±20V | 1220 pF @ 15 V | - | 3W (Ta), 5.2W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
SIR450DP-T1-RE3N-CHANNEL 45 V (D-S) MOSFET POWE |
5,629 |
|
Datasheet |
TrenchFET® Gen IV | PowerPAK® SO-8 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 45 V | 36A (Ta), 113A (Tc) | 4.5V, 10V | 1.8mOhm @ 10A, 10V | 2.3V @ 250µA | 114 nC @ 10 V | +20V, -16V | 5920 pF @ 20 V | - | 4.8W (Ta), 48W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® SO-8 |
