FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R6504ENXC7G650V 4A TO-220FM, LOW-NOISE POWE |
988 |
|
Datasheet |
- | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 4A (Ta) | 10V | 1.05Ohm @ 1.5A, 10V | 4V @ 130µA | 15 nC @ 10 V | ±20V | 220 pF @ 25 V | - | 40W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-220FM |
|
|
R6004ENXC7G600V 4A TO-220FM, LOW-NOISE POWE |
820 |
|
Datasheet |
- | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 4A (Tc) | 10V | 980mOhm @ 1.5A, 10V | 4V @ 1mA | 15 nC @ 10 V | ±20V | 250 pF @ 25 V | - | 40W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-220FM |
|
DMTH43M8LPSQ-13MOSFET N-CH 40V 22A PWRDI5060 |
9,729 |
|
Datasheet |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 22A (Ta), 100A (Tc) | 5V, 10V | 3.3mOhm @ 20A, 10V | 2.5V @ 250µA | 49 nC @ 10 V | ±20V | 3367 pF @ 20 V | - | 2.7W (Ta) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PowerDI5060-8 |
|
|
NP20P06YLG-E1-AYMOSFET P-CH 60V 20A 8HSON |
4,853 |
|
Datasheet |
- | 8-PowerLDFN | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 60 V | 20A (Tc) | 4.5V, 10V | 47mOhm @ 10A, 10V | 2.5V @ 250µA | 51 nC @ 10 V | ±20V | 2407 pF @ 25 V | - | 1W (Ta), 57W (Tc) | 175°C | - | - | Surface Mount | 8-HSON (5x5.4) |
|
DMNH6012LK3Q-13MOSFET N-CH 60V 80A TO252 |
4,942 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 80A (Tc) | 4.5V, 10V | 12mOhm @ 25A, 10V | 3V @ 250µA | 35.2 nC @ 10 V | ±20V | 1926 pF @ 30 V | - | 2W (Ta) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-252-3 |
;;2.jpg)
|
STD9N60M2MOSFET N-CH 600V 5.5A DPAK |
3,640 |
|
Datasheet |
MDmesh™ II Plus | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 5.5A (Tc) | 10V | 780mOhm @ 3A, 10V | 4V @ 250µA | 10 nC @ 10 V | ±25V | 320 pF @ 100 V | - | 60W (Tc) | 150°C (TJ) | - | - | Surface Mount | DPAK |
|
SI4116DY-T1-E3MOSFET N-CH 25V 18A 8SO |
1,200 |
|
Datasheet |
TrenchFET® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 25 V | 18A (Tc) | 2.5V, 10V | 8.6mOhm @ 10A, 10V | 1.4V @ 250µA | 56 nC @ 10 V | ±12V | 1925 pF @ 15 V | - | 2.5W (Ta), 5W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
DMTH4004SPS-13MOSFET N-CH 40V 31A PWRDI5060 |
2,463 |
|
Datasheet |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 31A (Ta), 100A (Tc) | 10V | 2.7mOhm @ 90A, 10V | 4V @ 250µA | 68.6 nC @ 10 V | ±20V | 4305 pF @ 25 V | - | 3.6W (Ta), 167W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PowerDI5060-8 |
|
NVTFS4C13NWFTAGMOSFET N-CH 30V 14A 8WDFN |
1,450 |
|
Datasheet |
- | 8-PowerWDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 14A (Ta) | 4.5V, 10V | 9.4mOhm @ 30A, 10V | 2.1V @ 250µA | 15.2 nC @ 10 V | ±20V | 770 pF @ 15 V | - | 3W (Ta), 26W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 8-WDFN (3.3x3.3) |
|
|
DMTH10H010SPS-13MOSFET N-CH 100V PWRDI5060 |
4,865 |
|
Datasheet |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 11.8A (Ta), 123A (Tc) | 6V, 10V | 8.8mOhm @ 13A, 10V | 4V @ 250µA | 56.4 nC @ 10 V | ±20V | 4468 pF @ 50 V | - | 1.5W (Ta) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PowerDI5060-8 |
|
AOD600A60MOSFET N-CH 600V 8A TO252 |
2,471 |
|
Datasheet |
aMOS5™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 8A (Tc) | 10V | 600mOhm @ 2.1A, 10V | 3.5V @ 250µA | 11.5 nC @ 10 V | ±20V | 608 pF @ 100 V | - | 96W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252 (DPAK) |
|
CSD25202W15TMOSFET P-CH 20V 4A 9DSBGA |
1,450 |
|
Datasheet |
NexFET™ | 9-UFBGA, DSBGA | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 4A (Ta) | 1.8V, 4.5V | 26mOhm @ 2A, 4.5V | 1.05V @ 250µA | 7.5 nC @ 4.5 V | -6V | 1010 pF @ 10 V | - | 500mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 9-DSBGA |
|
SQJ459EP-T2_GE3P-CHANNEL 60-V (D-S) 175C MOSFET |
3,941 |
|
Datasheet |
- | PowerPAK® SO-8 Dual | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 60 V | 52A (Tc) | 4.5V, 10V | 18mOhm @ 3.5A, 10V | 2.5V @ 250µA | 108 nC @ 10 V | ±20V | 4586 pF @ 30 V | - | 83W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PowerPAK® SO-8 Dual |
|
|
RRS050P03HZGTBAUTOMOTIVE PCH -30V -5A POWER MO |
2,286 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 5A (Ta) | 4V, 10V | 50mOhm @ 5A, 10V | 2.5V @ 1mA | 9.2 nC @ 5 V | ±20V | 850 pF @ 10 V | - | 2W (Ta) | 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 8-SOP |
|
NVMFS4C310NT1GMOSFET N-CH 30V 17A/51A 5DFN |
0 |
|
Datasheet |
- | 8-PowerTDFN, 5 Leads | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 17A (Ta), 51A (Tc) | 4.5V, 10V | 6mOhm @ 30A, 10V | 2.2V @ 250µA | 18.6 nC @ 10 V | ±20V | 1000 pF @ 15 V | - | 3.5W (Ta), 32W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 5-DFN (5x6) (8-SOFL) |
|
TSM056NH04LCV RGG40V, 54A, SINGLE N-CHANNEL POWER |
9,955 |
|
Datasheet |
PerFET™ | 8-PowerWDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 16A (Ta), 54A (Tc) | 4.5V, 10V | 5.6mOhm @ 27A, 10V | 2.2V @ 250µA | 33 nC @ 10 V | ±16V | 2076 pF @ 25 V | - | 34W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-PDFN (3.1x3.1) |
|
|
TSM056NH04CV RGG40V, 54A, SINGLE N-CHANNEL POWER |
9,950 |
|
Datasheet |
PerFET™ | 8-PowerWDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 16A (Ta), 54A (Tc) | 7V, 10V | 5.6mOhm @ 27A, 10V | 3.6V @ 250µA | 29 nC @ 10 V | ±20V | 1828 pF @ 25 V | - | 34W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-PDFN (3.1x3.1) |
|

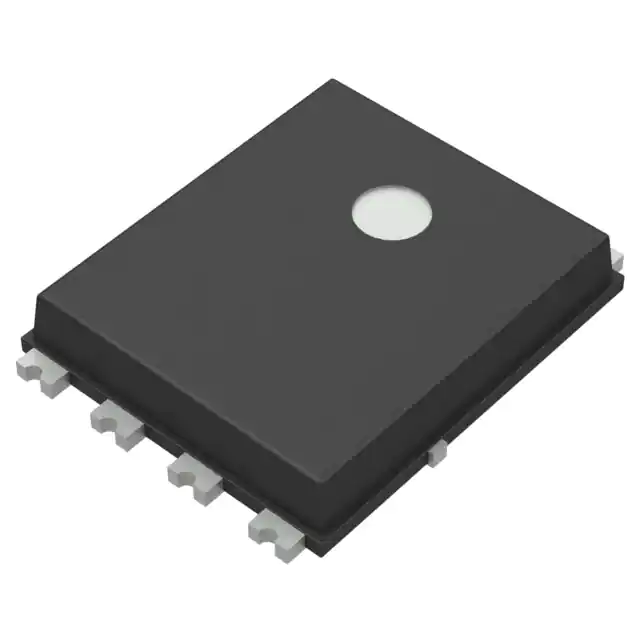

TQM110NB04CR RLGMOSFET N-CH 40V 12A/54A 8PDFNU |
4,738 |
|
Datasheet |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 12A (Ta), 54A (Tc) | 7V, 10V | 11mOhm @ 12A, 10V | 3.8V @ 250µA | 25 nC @ 10 V | ±20V | 1352 pF @ 20 V | - | 3.1W (Ta), 68W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount, Wettable Flank | 8-PDFNU (5x6) |
|
IRFR024TRPBF-BE3MOSFET N-CH 60V 14A DPAK |
2,550 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 14A (Tc) | - | 100mOhm @ 8.4A, 10V | 4V @ 250µA | 25 nC @ 10 V | ±20V | 640 pF @ 25 V | - | 2.5W (Ta), 42W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252AA |
|
|
IRFR420TRPBF-BE3MOSFET N-CH 500V 2.4A DPAK |
2,150 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 2.4A (Tc) | 10V | 3Ohm @ 1.4A, 10V | 4V @ 250µA | 19 nC @ 10 V | ±20V | 360 pF @ 25 V | - | 2.5W (Ta), 42W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252AA |
