FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BUK9M6R6-30EXMOSFET N-CH 30V 70A LFPAK33 |
1,284 |
|
Datasheet |
TrenchMOS™ | SOT-1210, 8-LFPAK33 (5-Lead) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 70A (Tc) | 5V | 5.3mOhm @ 20A, 10V | 2.1V @ 1mA | 18 nC @ 5 V | ±10V | 2001 pF @ 25 V | - | 75W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | LFPAK33 |
|
|
PSMN2R9-30MLC,115MOSFET N-CH 30V 70A LFPAK33 |
754 |
|
Datasheet |
- | SOT-1210, 8-LFPAK33 (5-Lead) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 70A (Tc) | 4.5V, 10V | 2.9mOhm @ 25A, 10V | 2.15V @ 1mA | 36.1 nC @ 10 V | ±20V | 2419 pF @ 15 V | - | 91W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | LFPAK33 |
|
|
BUK9M11-40HXMOSFET N-CH 40V 35A LFPAK33 |
5,817 |
|
Datasheet |
- | SOT-1210, 8-LFPAK33 (5-Lead) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 35A (Tc) | 4.5V, 10V | 11mOhm @ 10A, 10V | 2.2V @ 1mA | 21 nC @ 10 V | +16V, -10V | 1345 pF @ 25 V | - | 50W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | LFPAK33 |
|

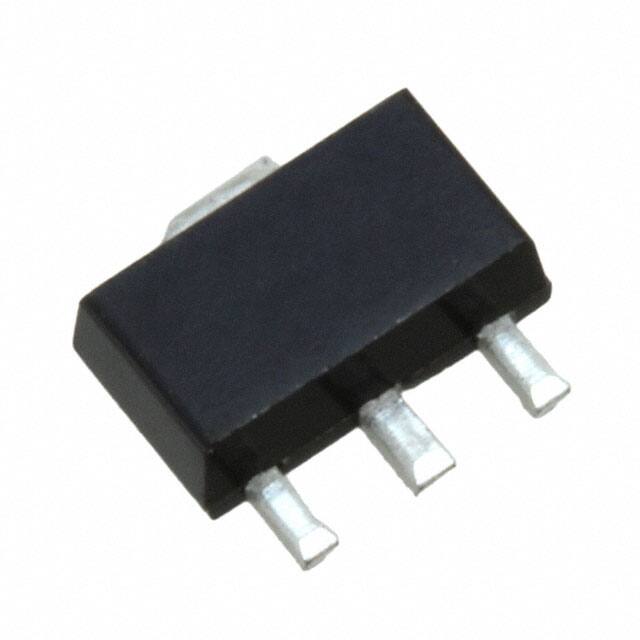

CPC3708CTRMOSFET N-CH 350V 5MA SOT89 |
3,806 |
|
Datasheet |
- | TO-243AA | Tape & Reel (TR) | Active | N-Channel, Depletion Mode | MOSFET (Metal Oxide) | 350 V | 5mA (Ta) | 0.35V | 14Ohm @ 50mA, 350mV | - | - | ±20V | 300 pF @ 0 V | - | 1.1W (Ta) | -40°C ~ 110°C (TA) | - | - | Surface Mount | SOT-89 |
|
|
BUK7M11-40HXMOSFET N-CH 40V 35A LFPAK33 |
3,709 |
|
Datasheet |
- | SOT-1210, 8-LFPAK33 (5-Lead) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 35A (Tc) | 10V | 11mOhm @ 10A, 10V | 3.6V @ 1mA | 16 nC @ 10 V | +20V, -10V | 1022 pF @ 25 V | - | 50W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | LFPAK33 |
|
IPD60R1K4C6ATMA1MOSFET N-CH 600V 3.2A TO252-3 |
19,885 |
|
Datasheet |
CoolMOS™ C6 | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 3.2A (Tc) | 10V | 1.4Ohm @ 1.1A, 10V | 3.5V @ 90µA | 9.4 nC @ 10 V | ±20V | 200 pF @ 100 V | - | 28.4W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TO252-3 |
|
SIS4604DN-T1-GE3N-CHANNEL 60 V (D-S) MOSFET POWE |
9,520 |
|
Datasheet |
TrenchFET® Gen IV | PowerPAK® 1212-8 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 14.6A (Ta), 44.4A (Tc) | 7.5V, 10V | 9.5mOhm @ 10A, 10V | 4V @ 250µA | 22 nC @ 10 V | ±20V | 960 pF @ 30 V | - | 3.6W (Ta), 33.7W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® 1212-8 |
|
|
SQS840EN-T1_BE3N-CHANNEL 40-V (D-S) 175C MOSFET |
8,928 |
|
Datasheet |
- | PowerPAK® 1212-8 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 12A (Tc) | 4.5V, 10V | 20mOhm @ 7.5A, 10V | 2.5V @ 250µA | 22.5 nC @ 10 V | ±20V | 1031 pF @ 20 V | - | 33W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PowerPAK® 1212-8 |
|
TK7S10N1Z,LXHQMOSFET N-CH 100V 7A DPAK |
2,900 |
|
Datasheet |
U-MOSVIII-H | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 7A (Ta) | 10V | 48mOhm @ 3.5A, 10V | 4V @ 100µA | 7.1 nC @ 10 V | ±20V | 470 pF @ 10 V | - | 50W (Tc) | 175°C | - | - | Surface Mount | DPAK+ |
|
SQS840EN-T1_GE3MOSFET N-CH 40V 12A PPAK1212-8 |
1,763 |
|
Datasheet |
TrenchFET® | PowerPAK® 1212-8 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 12A (Tc) | 4.5V, 10V | 20mOhm @ 7.5A, 10V | 2.5V @ 250µA | 22.5 nC @ 10 V | ±20V | 1031 pF @ 20 V | - | 33W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PowerPAK® 1212-8 |
|
ECH8310-TL-HMOSFET P-CH 30V 9A 8ECH |
0 |
|
Datasheet |
- | 8-SMD, Flat Leads | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 9A (Ta) | 4V, 10V | 17mOhm @ 4.5A, 10V | - | 28 nC @ 10 V | ±20V | 1400 pF @ 10 V | - | 1.5W (Ta) | 150°C (TJ) | - | - | Surface Mount | 8-ECH |
|
TPN30008NH,LQMOSFET N-CH 80V 9.6A 8TSON |
2,735 |
|
Datasheet |
U-MOSVIII-H | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 9.6A (Tc) | 10V | 30mOhm @ 4.8A, 10V | 4V @ 100µA | 11 nC @ 10 V | ±20V | 920 pF @ 40 V | - | 700mW (Ta), 27W (Tc) | 150°C (TJ) | - | - | Surface Mount | 8-TSON Advance (3.3x3.3) |
;;6.jpg)
|
RF4E100AJTCRMOSFET N-CH 30V 10A HUML2020L8 |
11,684 |
|
Datasheet |
- | 8-PowerUDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 10A (Ta) | 4.5V | 12.4mOhm @ 10A, 4.5V | 1.5V @ 1mA | 13 nC @ 4.5 V | ±12V | 1460 pF @ 15 V | - | 2W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | HUML2020L8 |
|
SIRC10DP-T1-GE3MOSFET N-CH 30V 60A PPAK SO-8 |
5,967 |
|
Datasheet |
TrenchFET® Gen IV | PowerPAK® SO-8 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 60A (Tc) | 4.5V, 10V | 3.5mOhm @ 10A, 10V | 2.4V @ 250µA | 36 nC @ 10 V | +20V, -16V | 1873 pF @ 15 V | Schottky Diode (Body) | 43W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® SO-8 |
|
DMTH4007LPS-13MOSFET N-CH 40V 15.5A PWRDI5060 |
2,500 |
|
Datasheet |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 15.5A (Ta), 100A (Tc) | 4.5V, 10V | 6.5mOhm @ 20A, 10V | 3V @ 250µA | 29.1 nC @ 10 V | ±20V | 1895 pF @ 30 V | - | 2.7W (Ta), 150W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PowerDI5060-8 |
|
ZVN2120GTAMOSFET N-CH 200V 320MA SOT223 |
1,775 |
|
Datasheet |
- | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 320mA (Ta) | 10V | 10Ohm @ 250mA, 10V | 3V @ 1mA | - | ±20V | 85 pF @ 25 V | - | 2W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-223-3 |
|
NVGS4141NT1GMOSFET N-CH 30V 3.5A 6TSOP |
1,690 |
|
Datasheet |
- | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 3.5A (Ta) | 4.5V, 10V | 25mOhm @ 7A, 10V | 3V @ 250µA | 12 nC @ 10 V | ±20V | 560 pF @ 24 V | - | 500mW (Ta) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 6-TSOP |
|
DMP3015LSS-13MOSFET P-CH 30V 13A 8SOP |
1,099 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 13A (Ta) | 4.5V, 10V | 11mOhm @ 13A, 10V | 2V @ 250µA | 60.4 nC @ 10 V | ±20V | 2748 pF @ 20 V | - | 2.5W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SO |
|
|
IPD60R600PFD7SAUMA1CONSUMER PG-TO252-3 |
4,694 |
|
Datasheet |
CoolMOS™ PFD7 | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 6A (Tc) | 10V | 600mOhm @ 1.7A, 10V | 4.5V @ 80µA | 8.5 nC @ 10 V | ±20V | 344 pF @ 400 V | - | 31W (Tc) | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TO252-3 |
|
RS3E095BNGZETBMOSFET N-CHANNEL 30V 9.5A 8SOP |
2,500 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 9.5A (Ta) | 10V | 14.6mOhm @ 9.5A, 10V | 2.5V @ 1mA | 8.3 nC @ 4.5 V | ±20V | 680 pF @ 15 V | - | 2W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOP |
