FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RRQ030P03HZGTRMOSFET P-CH 30V 3A TSMT6 |
3,000 |
|
Datasheet |
- | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 3A (Ta) | 4V, 10V | 125mOhm @ 1.5A, 4V | 2.5V @ 1mA | 5.2 nC @ 5 V | ±20V | 480 pF @ 10 V | - | 950mW (Ta) | 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TSMT6 (SC-95) |
|
DMS3014SFGQ-7MOSFET N-CH 30V 9.5A PWRDI3333-8 |
11,686 |
|
Datasheet |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 9.5A (Ta) | 4.5V, 10V | 14.5mOhm @ 10.4A, 10V | 2.2V @ 250µA | 19.3 nC @ 10 V | ±12V | 4310 pF @ 15 V | - | 1W (Ta) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | POWERDI3333-8 |
|
IPD60R2K0PFD7SAUMA1MOSFET N-CH 600V 3A TO252-3 |
4,980 |
|
Datasheet |
CoolMOS™ PFD7 | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 3A (Tc) | 10V | 2Ohm @ 500mA, 10V | 4.5V @ 30µA | 3.8 nC @ 10 V | ±20V | 134 pF @ 400 V | - | 20W (Tc) | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TO252-3-344 |
|
SI1467DH-T1-GE3MOSFET P-CH 20V 2.7A SC70-6 |
2,850 |
|
Datasheet |
TrenchFET® | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 2.7A (Tc) | 1.8V, 4.5V | 90mOhm @ 2A, 4.5V | 1V @ 250µA | 13.5 nC @ 4.5 V | ±8V | 561 pF @ 10 V | - | 1.5W (Ta), 2.78W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SC-70-6 |
|
|
SI1467DH-T1-BE3MOSFET P-CH 20V 3A/2.7A SC70-6 |
2,810 |
|
Datasheet |
TrenchFET® | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 2.7A (Tc) | - | 90mOhm @ 2A, 4.5V | 1V @ 250µA | 13.5 nC @ 4.5 V | ±8V | 561 pF @ 10 V | - | 1.5W (Ta), 2.78W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SC-70-6 |
|
ISZ065N03L5SATMA1MOSFET N-CH 30V 12A/40A TSDSON |
32,216 |
|
Datasheet |
OptiMOS™ | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 12A (Ta), 40A (Tc) | 4.5V, 10V | 6.5mOhm @ 20A, 10V | 2V @ 250µA | 10 nC @ 10 V | ±20V | 670 pF @ 15 V | - | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TSDSON-8-FL |
|
BSC090N03LSGATMA1MOSFET N-CH 30V 13A/48A TDSON |
21,482 |
|
Datasheet |
OptiMOS™ | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 13A (Ta), 48A (Tc) | 4.5V, 10V | 9mOhm @ 30A, 10V | 2.2V @ 250µA | 18 nC @ 10 V | ±20V | 1500 pF @ 15 V | - | 2.5W (Ta), 32W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TDSON-8-5 |
|
PJQ4411P_R2_0000120V P-CHANNEL ENHANCEMENT MODE M |
4,931 |
|
Datasheet |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 13A (Ta), 60A (Tc) | 1.8V, 4.5V | 8mOhm @ 8A, 4.5V | 1V @ 250µA | 46.8 nC @ 4.5 V | ±12V | 4659 pF @ 15 V | - | 2W (Ta), 60W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN3333-8 |
|
SSM6K810R,LXHFAUTO AEC-Q SS MOS N-CH LOGIC-LEV |
4,930 |
|
Datasheet |
- | 6-SMD, Flat Leads | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 3.5A (Ta) | 4.5V, 10V | 69mOhm @ 2A, 10V | 2.5V @ 100µA | 3.2 nC @ 4.5 V | ±20V | 430 pF @ 15 V | - | 1.5W (Ta) | 175°C | Automotive | AEC-Q101 | Surface Mount | 6-TSOP-F |
|
|
PJQ4444P_R2_0000140V N-CHANNEL ENHANCEMENT MODE M |
3,177 |
|
Datasheet |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 14A (Ta), 70A (Tc) | 4.5V, 10V | 5.5mOhm @ 20A, 10V | 2.5V @ 250µA | 25 nC @ 4.5 V | ±20V | 1258 pF @ 25 V | - | 2W (Ta), 50W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN3333-8 |
|
QS5U12TRMOSFET N-CH 30V 2A TSMT5 |
2,608 |
|
Datasheet |
- | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 2A (Ta) | 2.5V, 4.5V | 100mOhm @ 2A, 4.5V | 1.5V @ 1mA | 3.9 nC @ 4.5 V | ±12V | 175 pF @ 10 V | Schottky Diode (Isolated) | 1.25W (Ta) | 150°C (TJ) | - | - | Surface Mount | TSMT5 |
|
|
PJQ4401P_R2_0000130V P-CHANNEL ENHANCEMENT MODE M |
1,482 |
|
Datasheet |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 10A (Ta), 50A (Tc) | 4.5V, 10V | 8.5mOhm @ 10A, 10V | 2.5V @ 250µA | 27 nC @ 4.5 V | ±20V | 3228 pF @ 15 V | - | 2W (Ta), 60W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN3333-8 |
|

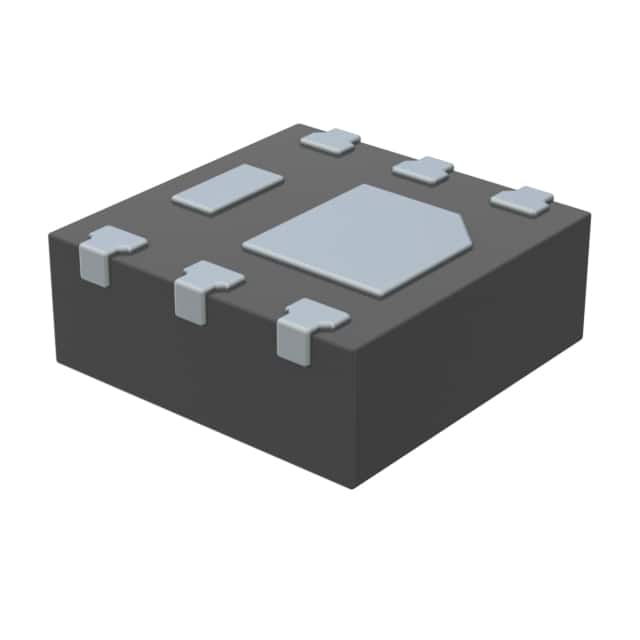

PJQ2463A_R1_0000160V P-CHANNEL ENHANCEMENT MODE M |
1,105 |
|
Datasheet |
- | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 60 V | 3.2A (Ta) | 4.5V, 10V | 105mOhm @ 3A, 10V | 2.5V @ 250µA | 10 nC @ 10 V | ±20V | 785 pF @ 30 V | - | 2W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN2020B-6 |
|
|
QS5U17TRMOSFET N-CH 30V 2A TSMT5 |
8,661 |
|
Datasheet |
- | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 2A (Ta) | 2.5V, 4.5V | 100mOhm @ 2A, 4.5V | 1.5V @ 1mA | 3.9 nC @ 4.5 V | ±12V | 175 pF @ 10 V | Schottky Diode (Isolated) | 900mW (Ta) | 150°C (TJ) | - | - | Surface Mount | TSMT5 |
|
|
PJQ4402P-AU_R2_000A130V N-CHANNEL ENHANCEMENT MODE M |
4,661 |
|
Datasheet |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 16A (Ta), 70A (Tc) | 4.5V, 10V | 3.8mOhm @ 10A, 10V | 2.5V @ 250µA | 23 nC @ 4.5 V | ±20V | 2436 pF @ 25 V | - | 2W (Ta), 39W (Tc) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DFN3333-8 |
|
SQ3457EV-T1_BE3MOSFET P-CHANNEL 30V 6.8A 6TSOP |
2,106 |
|
Datasheet |
TrenchFET® | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 6.8A (Tc) | 4.5V, 10V | 65mOhm @ 6A, 10V | 2.5V @ 250µA | 21 nC @ 10 V | ±20V | 705 pF @ 15 V | - | 5W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 6-TSOP |
|
DMTH46M7SFVW-7MOSFET BVDSS: 31V~40V POWERDI333 |
1,404 |
|
Datasheet |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 16.3A (Ta), 67.2A (Tc) | 10V | 7.4mOhm @ 20A, 10V | 4V @ 250µA | 14.8 nC @ 10 V | ±20V | 1315 pF @ 20 V | - | 3.2W (Ta), 54.5W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount, Wettable Flank | PowerDI3333-8 (SWP) Type UX |
Type-UX;-;-8-Top.jpg)
|
DMP3021SFVWQ-13MOSFET P-CH 30V 9.8A PWRDI3333-8 |
1,029 |
|
Datasheet |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 11A (Ta), 42A (Tc) | 5V, 10V | 15mOhm @ 8A, 10V | 2.5V @ 250µA | 34 nC @ 10 V | ±25V | 1799 pF @ 15 V | - | 1W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount, Wettable Flank | PowerDI3333-8 (SWP) Type UX |
;;6.jpg)
|
RF4E110BNTRMOSFET N-CH 30V 11A HUML2020L8 |
952 |
|
Datasheet |
- | 8-PowerUDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 11A (Ta) | 4.5V, 10V | 11.1mOhm @ 11A, 10V | 2V @ 250µA | 24 nC @ 10 V | ±20V | 1200 pF @ 15 V | - | 2W (Ta) | 150°C (TJ) | - | - | Surface Mount | HUML2020L8 |
|
|
SQ3493EV-T1_GE3MOSFET P-CH 20V 8A 6TSOP |
3,373 |
|
Datasheet |
TrenchFET® | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 8A (Tc) | 2.5V, 4.5V | 21mOhm @ 5A, 4.5V | 1.4V @ 250µA | 34 nC @ 4.5 V | ±12V | 3300 pF @ 10 V | - | 5W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 6-TSOP |
