FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GP2T080A120USIC MOSFET 1200V 80M TO-247-3L |
1,149 |
|
Datasheet |
- | TO-247-3 | Tube | Active | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 35A (Tc) | 20V | 100mOhm @ 20A, 20V | 4V @ 10mA | 58 nC @ 20 V | +25V, -10V | 1377 pF @ 1000 V | - | 188W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247-3 |
|
NTHL065N65S3FMOSFET N-CH 650V 46A TO247-3 |
6,586 |
|
Datasheet |
- | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 46A (Tc) | 10V | 65mOhm @ 23A, 10V | 5V @ 4.6mA | 98 nC @ 10 V | ±30V | 4075 pF @ 400 V | - | 337W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247-3 |
|
SCT2450KEHRC111200V, 10A, THD, SILICON-CARBIDE |
427 |
|
Datasheet |
- | TO-247-3 | Tube | Active | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 10A (Tc) | 18V | 585mOhm @ 3A, 18V | 4V @ 900µA | 27 nC @ 18 V | +22V, -6V | 463 pF @ 800 V | - | 85W (Tc) | 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | TO-247N |
|
STH12N120K5-2MOSFET N-CH 1200V 12A H2PAK-2 |
2,999 |
|
Datasheet |
MDmesh™ K5 | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 1200 V | 12A (Tc) | 10V | 690mOhm @ 6A, 10V | 5V @ 100µA | 44.2 nC @ 10 V | ±30V | 1370 pF @ 100 V | - | 250W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | H2PAK-2 |
|
IXFH180N20X3MOSFET N-CH 200V 180A TO247 |
542 |
|
Datasheet |
HiPerFET™, Ultra X3 | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 180A (Tc) | 10V | 7.5mOhm @ 90A, 10V | 4.5V @ 4mA | 154 nC @ 10 V | ±20V | 10300 pF @ 25 V | - | 780W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247 (IXTH) |
|
|
NTBL045N065SC1SILICON CARBIDE (SIC) MOSFET - 3 |
1,688 |
|
Datasheet |
- | 8-PowerSFN | Tape & Reel (TR) | Active | N-Channel | SiCFET (Silicon Carbide) | 650 V | 73A (Tc) | 15V, 18V | 50mOhm @ 25A, 18V | 4.3V @ 8mA | 105 nC @ 18 V | +22.6V, -8V | 1870 pF @ 325 V | - | 348W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | 8-HPSOF |
|
IXTK150N15PMOSFET N-CH 150V 150A TO264 |
305 |
|
Datasheet |
Polar | TO-264-3, TO-264AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 150A (Tc) | 10V | 13mOhm @ 500mA, 10V | 5V @ 250µA | 190 nC @ 10 V | ±20V | 5800 pF @ 25 V | - | 714W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-264 (IXTK) |
|

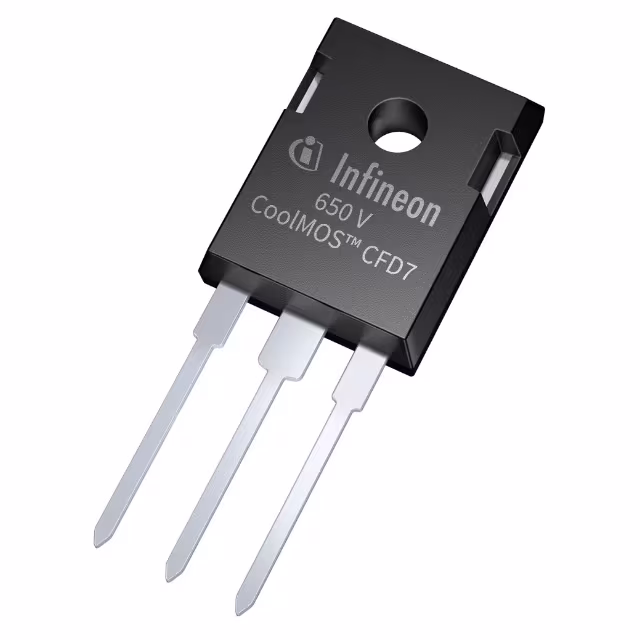

IPW65R029CFD7XKSA1MOSFET N-CH 650V 69A TO247-3 |
154 |
|
Datasheet |
CoolMOS™ | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 69A (Tc) | - | 29mOhm @ 35.8A, 10V | 4.5V @ 1.79mA | 145 nC @ 10 V | ±20V | 7149 pF @ 400 V | - | 305W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO247-3 |
|
|
IXFH50N85XMOSFET N-CH 850V 50A TO247 |
1,058 |
|
Datasheet |
HiPerFET™, Ultra X | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 850 V | 50A (Tc) | 10V | 105mOhm @ 500mA, 10V | 5.5V @ 4mA | 152 nC @ 10 V | ±30V | 4480 pF @ 25 V | - | 890W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247 (IXTH) |
|
IPW65R041CFDFKSA2MOSFET N-CH 650V 68.5A TO247-3 |
611 |
|
Datasheet |
CoolMOS™ CFD2 | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 68.5A (Tc) | 10V | 41mOhm @ 33.1A, 10V | 4.5V @ 3.3mA | 300 nC @ 10 V | ±20V | 8400 pF @ 100 V | - | 500W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO247-3 |
|

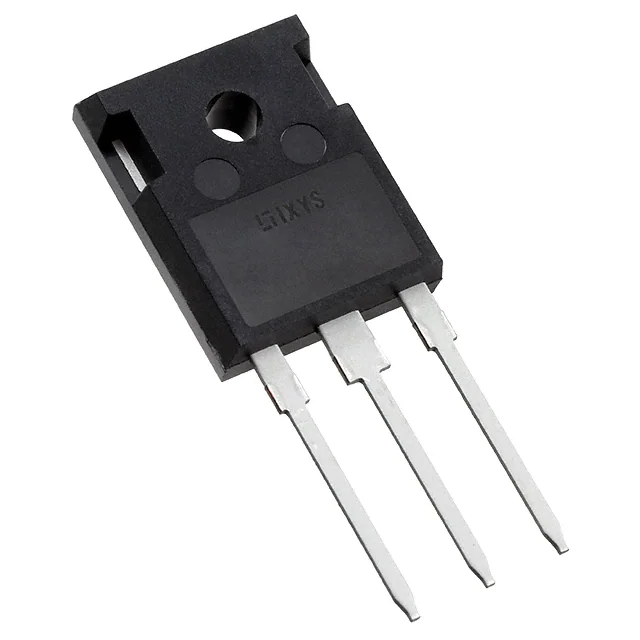

IXFH120N25X3MOSFET N-CH 250V 120A TO247 |
165 |
|
Datasheet |
HiPerFET™, Ultra X3 | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 250 V | 120A (Tc) | 10V | 12mOhm @ 60A, 10V | 4.5V @ 4mA | 122 nC @ 10 V | ±20V | 7870 pF @ 25 V | - | 520W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247 (IXTH) |
.jpg)
|
IXFX360N10TMOSFET N-CH 100V 360A PLUS247-3 |
298 |
|
Datasheet |
HiPerFET™, Trench | TO-247-3 Variant | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 360A (Tc) | 10V | 2.9mOhm @ 100A, 10V | 5V @ 3mA | 525 nC @ 10 V | ±20V | 33000 pF @ 25 V | - | 1250W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | PLUS247™-3 |
|
NTBG080N120SC1SICFET N-CH 1200V 30A D2PAK-7 |
1,035 |
|
Datasheet |
- | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA | Tape & Reel (TR) | Active | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 30A (Tc) | 20V | 110mOhm @ 20A, 20V | 4.3V @ 5mA | 56 nC @ 20 V | +25, -15V | 1154 pF @ 800 V | - | 179W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK-7 |
|
IXTA86N20X4MOSFET 200V 86A N-CH ULTRA TO263 |
597 |
|
Datasheet |
Ultra X4 | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 86A (Tc) | 10V | 13mOhm @ 43A, 10V | 4.5V @ 250µA | 70 nC @ 10 V | ±20V | 2250 pF @ 25 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
|
IXTA15N50L2MOSFET N-CH 500V 15A TO263 |
134 |
|
Datasheet |
Linear L2™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 15A (Tc) | 10V | 480mOhm @ 7.5A, 10V | 4.5V @ 250µA | 123 nC @ 10 V | ±20V | 4080 pF @ 25 V | - | 300W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263AA |
|
|
NVBG075N065SC1SIC MOS D2PAK-7L 650V |
3,116 |
|
Datasheet |
- | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA | Tape & Reel (TR) | Active | N-Channel | SiCFET (Silicon Carbide) | 650 V | 37A (Tc) | 15V, 18V | 85mOhm @ 15A, 18V | 4.3V @ 5mA | 59 nC @ 18 V | - | 1191 pF @ 325 V | - | 139W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | D2PAK-7 |
|
|
IXFH40N85XMOSFET N-CH 850V 40A TO247 |
368 |
|
Datasheet |
HiPerFET™, Ultra X | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 850 V | 40A (Tc) | 10V | 145mOhm @ 500mA, 10V | 5.5V @ 4mA | 98 nC @ 10 V | ±30V | 3700 pF @ 25 V | - | 860W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247 |
|
UF3C120080K3SSICFET N-CH 1200V 33A TO247-3 |
16,414 |
|
Datasheet |
- | TO-247-3 | Tube | Active | N-Channel | SiCFET (Cascode SiCJFET) | 1200 V | 33A (Tc) | 12V | 100mOhm @ 20A, 12V | 6V @ 10mA | 51 nC @ 15 V | ±25V | 1500 pF @ 100 V | - | 254.2W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247-3 |
|
UF3C120080K4SSICFET N-CH 1200V 33A TO247-4 |
16,390 |
|
Datasheet |
- | TO-247-4 | Tube | Active | N-Channel | SiCFET (Cascode SiCJFET) | 1200 V | 33A (Tc) | 12V | 100mOhm @ 20A, 12V | 6V @ 10mA | 43 nC @ 12 V | ±25V | 1500 pF @ 100 V | - | 254.2W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247-4 |
|
APT30M70BVRGMOSFET N-CH 300V 48A TO247 |
101 |
|
Datasheet |
POWER MOS V® | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 300 V | 48A (Tc) | 10V | 70mOhm @ 500mA, 10V | 4V @ 1mA | 225 nC @ 10 V | ±30V | 5870 pF @ 25 V | - | 370W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247 [B] |
