Encoders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

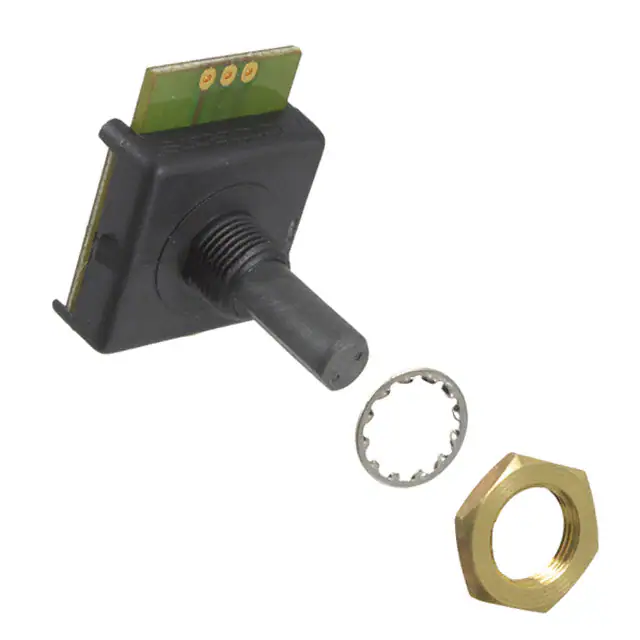

ECW1D-C24-CC0024LROTARY ENCODER MECHANICAL 24PPR |
375 |
|
Datasheet |
ECW | Bulk | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 1/4" Dia Flatted End | Yes | No | Panel Mount | Vertical | Solder Lug | 200K | - | - |
|

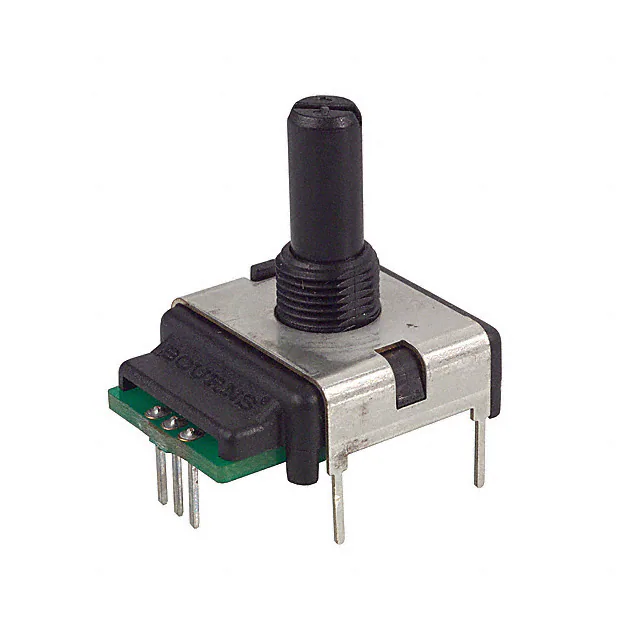

ECW1J-B24-BC0024LROTARY ENCODER MECHANICAL 24PPR |
348 |
|
Datasheet |
ECW | Bulk | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 1/4" Dia Slotted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
|

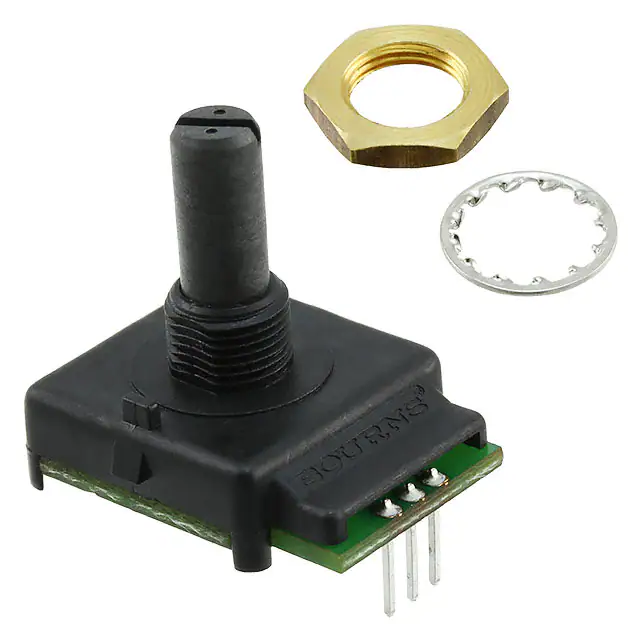

ECW1J-B24-AC0024LROTARY ENCODER MECHANICAL 24PPR |
237 |
|
Datasheet |
ECW | Bulk | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 1/4" Dia Slotted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
|

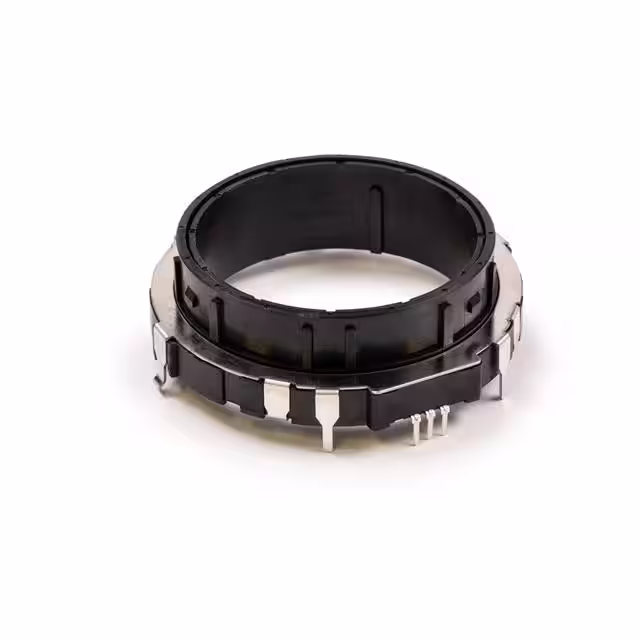

PER601-P117-N001560MM LOW PROFILE INCREMENT-RING |
774 |
|
Datasheet |
- | Tray | Active | Not Verified | Incremental | Quadrature, 2-Bit | 15 | - | Hole for Shaft | Yes | No | PCB, Through Hole | Vertical | PC Pin | 40K | - | - |
|

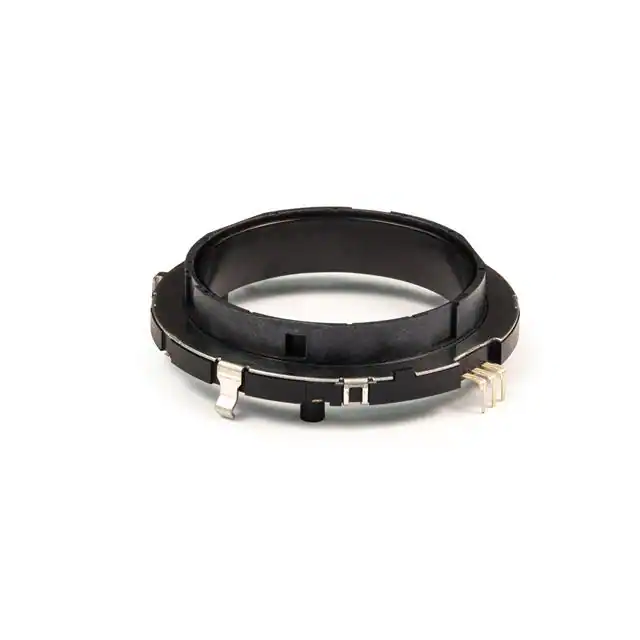

PER561-P115-N001556MM LOW PROFILE INCREMENT-RING |
1,956 |
|
Datasheet |
PER56 | Tray | Active | Not Verified | Incremental | Quadrature, 2-Bit | 15 | - | Hole for Shaft | Yes | No | PCB, Through Hole | Vertical | PC Pin | 50K | - | - |
|

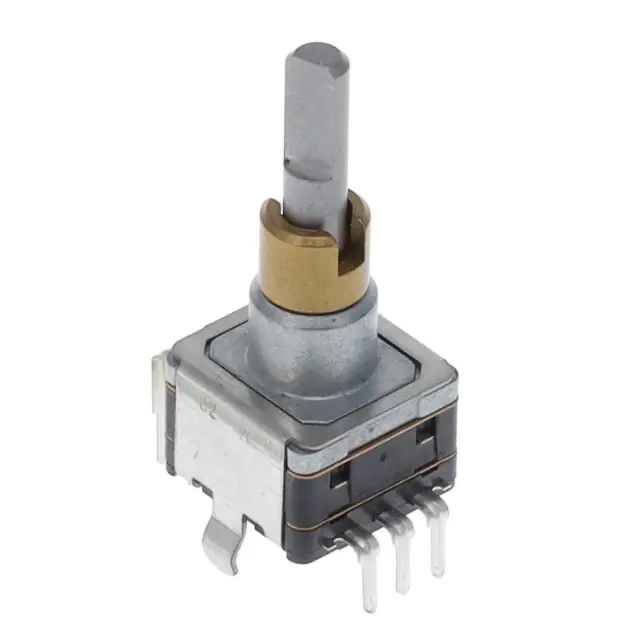

PEC11D-4120F-H0015ROTARY ENCDER WITH DUAL CONCENTR |
447 |
|
Datasheet |
PEC11D | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 15 | - | 6mm Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 15K | - | - |
|
AS5047D-ATST TSSOP14 LF T&RDPROTARY ENCODER MAGNETIC PROG |
1,416 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Not Verified | Magnetic | PWM | Programmable | 3V ~ 3.6V, 4.5V ~ 5.5V | External Magnet, Not Included | No | No | Surface Mount | - | SMD (SMT) Tab | - | - | - |
|
|
AS5134-ZSSMROTARY ENCODER MAGNETIC |
1,262 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Not Verified | Magnetic | Quadrature (Incremental) | - | 4.4V ~ 5.5V | External Magnet, Not Included | No | No | Surface Mount | - | SMD (SMT) Tab | - | Automotive | AEC-Q100 |
|

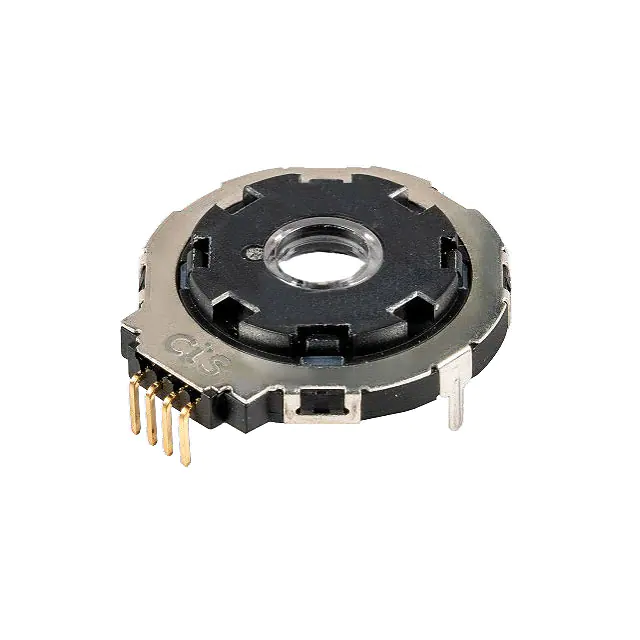

292V1X24AROTARY ENCODER OPTICAL 24PPR |
483 |
|
Datasheet |
292 | Tray | Active | Not Verified | Optical | Quadrature, 2-Bit | 24 | 4.95V ~ 5.5V | Hole for Shaft | Yes | Yes | PCB, Through Hole | User Selectable | PC Pin | 1M | - | - |
|
EPS1D-F19-AD0024LROTARY ENCODER MECHANICAL 24PPR |
108 |
|
Datasheet |
EPS | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 4.8mm Dia Flatted End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 200K | - | - |
|

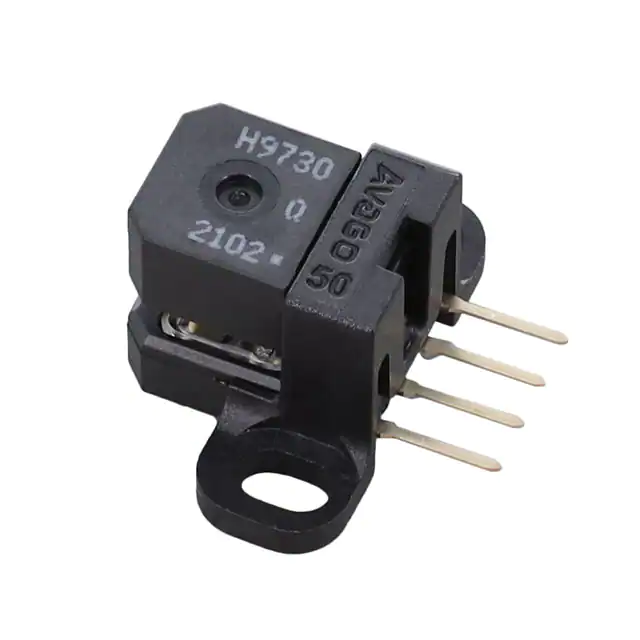

HEDS-9730#Q50ROTARY ENCODR OPTICAL 180 LPI |
451 |
|
Datasheet |
HEDS | Tray | Active | Not Verified | Optical | Quadrature (Incremental) | 180 LPI | 2.8V ~ 5.2V | Codestrip Not Included | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|

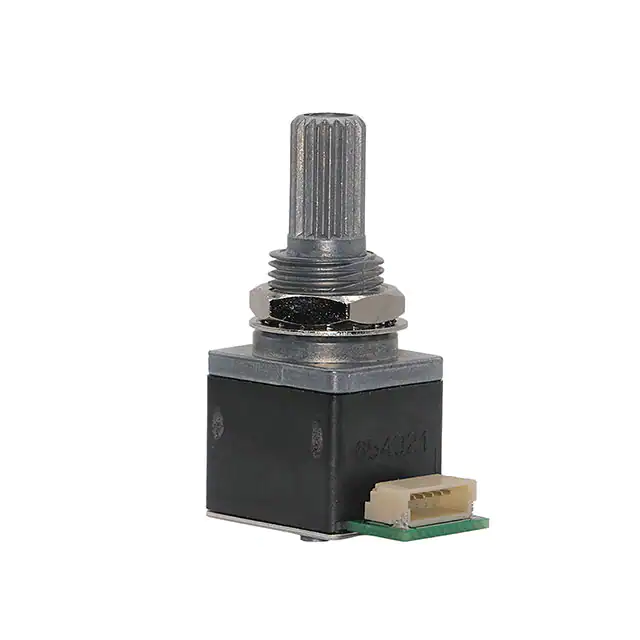

ENCOS24D2S65RROTARY ENCODER OPTICAL 24PPR |
1,486 |
|
Datasheet |
ENC | Tray | Active | - | Optical | Quadrature, 2-Bit | 24 | 4.75V ~ 5.25V | 5.92mm Dia Knurled End | Yes | Yes | Panel Mount | User Selectable | Connector | 300K | - | - |
|
AS5247-HMFMROTARY ENCODER MAGNETIC PROG |
1,586 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Not Verified | Magnetic | PWM | Programmable | 3V ~ 3.6V, 4.5V ~ 5.5V | External Magnet, Not Included | No | No | Surface Mount | - | SMD (SMT) Tab | - | Automotive | AEC-Q100 |
|

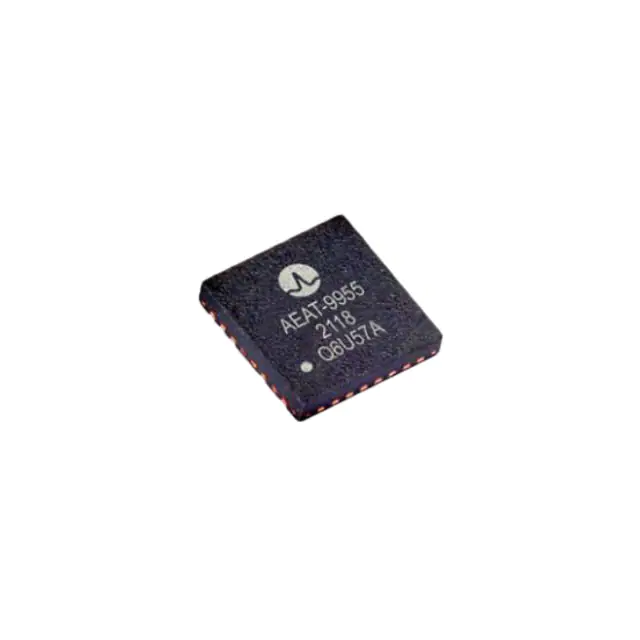

AEAT-9955-10018B SINGLE MAG ENC MULTIPLE AXIS |
1,080 |
|
Datasheet |
AEAT-9955 | Tape & Reel (TR) | Active | Not Verified | Absolute | PWM | Programmable | - | - | No | No | Surface Mount | - | Surface Mount (SMD,SMT) | - | - | - |
|
|
AEAT-9955-Q3218B SINGLE MAG ENC MULTIPLE AXIS |
771 |
|
Datasheet |
AEAT-9955 | Tray | Active | Not Verified | Absolute | PWM | Programmable | - | - | No | No | Surface Mount | - | Surface Mount (SMD,SMT) | - | - | - |
|
AEAT-9955-10218B SINGLE MAG ENC MULTIPLE AXIS |
553 |
|
Datasheet |
AEAT-9955 | Tape & Reel (TR) | Active | Not Verified | Absolute | PWM | Programmable | - | - | No | No | Surface Mount | - | Surface Mount (SMD,SMT) | - | - | - |
|

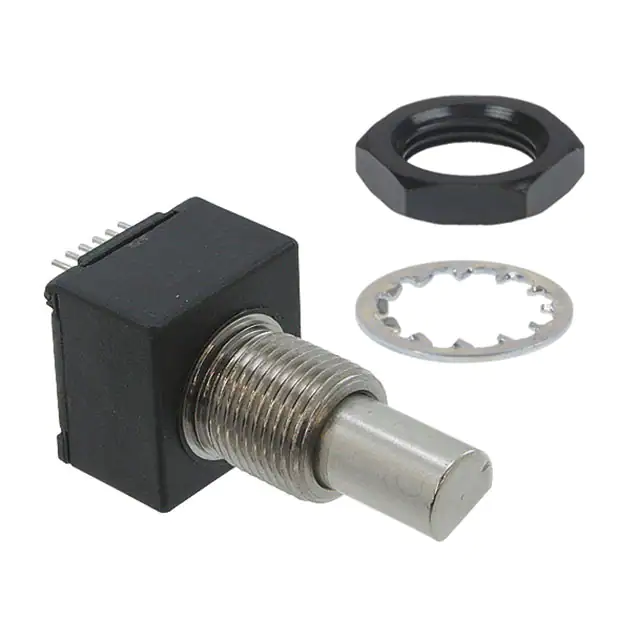

EM14A1D-C24-L008SROTARY ENCODER OPTICAL 8PPR |
146 |
|
Datasheet |
EM14 | Tube | Active | Not Verified | Optical | Quadrature (Incremental) | 8 | 5V | 1/4" Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
|
AMT103-2048-N4000-SENCODER INCREMENTAL 2048 PPR |
391 |
|
Datasheet |
AMT10 | Box | Active | Not Verified | Incremental | Quadrature with Index (Incremental) | 2048 | 3.6V ~ 5.5V | 4mm Open Center | No | No | Chassis Mount, Motors | Right Angle | Terminal Pins | - | - | - |
|

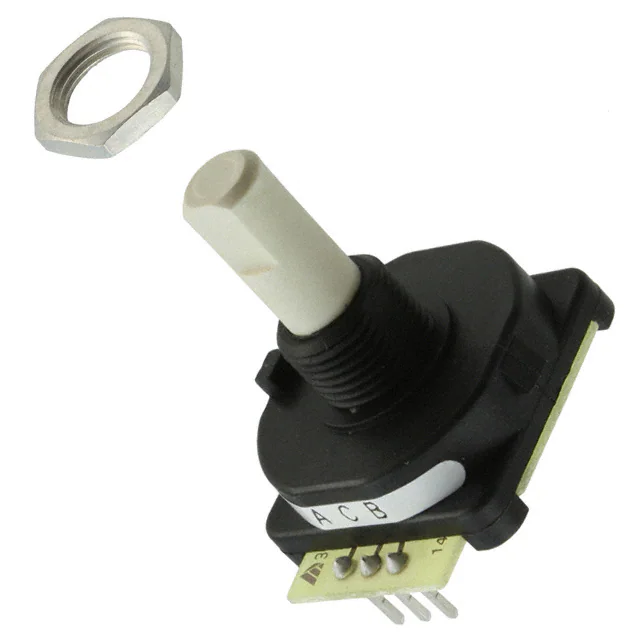

25LB10-QROTARY ENCODER MECHANICAL 36PPR |
776 |
|
Datasheet |
25L | Bulk | Active | Not Verified | Mechanical | Quadrature (Incremental) | 36 | - | 1/4" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|

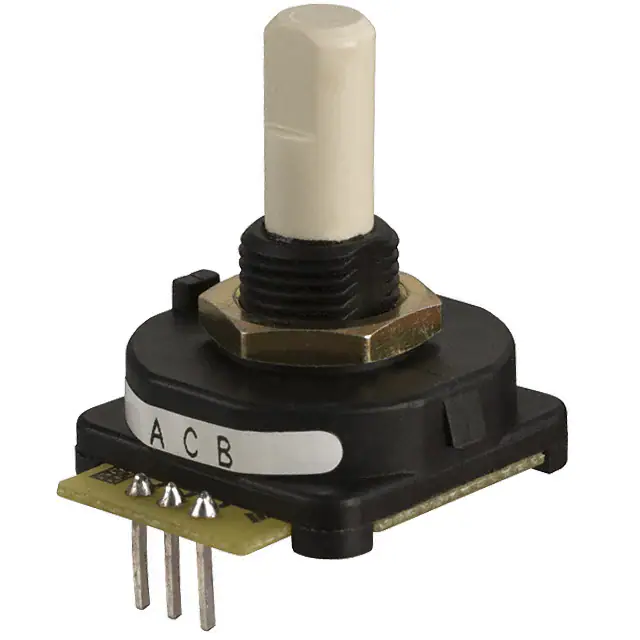

25LB22-QROTARY ENCODER MECHANICAL 16PPR |
134 |
|
Datasheet |
25L | Bulk | Active | Not Verified | Mechanical | Quadrature (Incremental) | 16 | - | 1/4" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
