DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DRAR16PSWITCH ROTARY DIP HEX 0.1A 5V |
0 |
|
Datasheet |
DR | Tray | Obsolete | Hexadecimal | 16 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper | Gold | 1.104" (28.05mm) | Panel Mount | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed | -25°C ~ 75°C |
|
|
DRKC10HSW ROTARY DIP BCD COMP 0.1A 5V |
0 |
|
Datasheet |
DR | Tray | Obsolete | BCD Complement | 10 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed | -25°C ~ 75°C |
|
|
DRKR10HSWITCH ROTARY DIP BCD 0.1A 5V |
0 |
|
Datasheet |
DR | Tray | Obsolete | BCD | 10 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed | -25°C ~ 75°C |
|
RTE0201N04SWITCH ROTARY DIP SPDT 0.1A 30V |
0 |
|
Datasheet |
RTE | Tube | Obsolete | SPDT | 2 | 100mA | 30VDC | Rotary with Shaft | Raised | Bronze | Gold | 0.463" (11.75mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
RTE0300N04SWITCH ROTARY DIP SP3T 0.1A 30V |
0 |
|
Datasheet |
RTE | Tube | Obsolete | SP3T | 3 | 100mA | 30VDC | Rotary for Tool | Flush, Recessed | Bronze | Gold | 0.167" (4.25mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
RTE0301N04SWITCH ROTARY DIP SP3T 0.1A 30V |
0 |
|
Datasheet |
RTE | Tube | Obsolete | SP3T | 3 | 100mA | 30VDC | Rotary with Shaft | Raised | Bronze | Gold | 0.463" (11.75mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
SP08BSWITCH SLIDE DIP SPST 0.01A 20V |
0 |
|
Datasheet |
SP | Tube | Obsolete | SPST | 8 | 10mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.196" (4.99mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
SP06ABSWITCH SLIDE DIP SPST 0.01A 20V |
0 |
|
Datasheet |
SP | Tube | Obsolete | SPST | 6 | 10mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.169" (4.30mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|

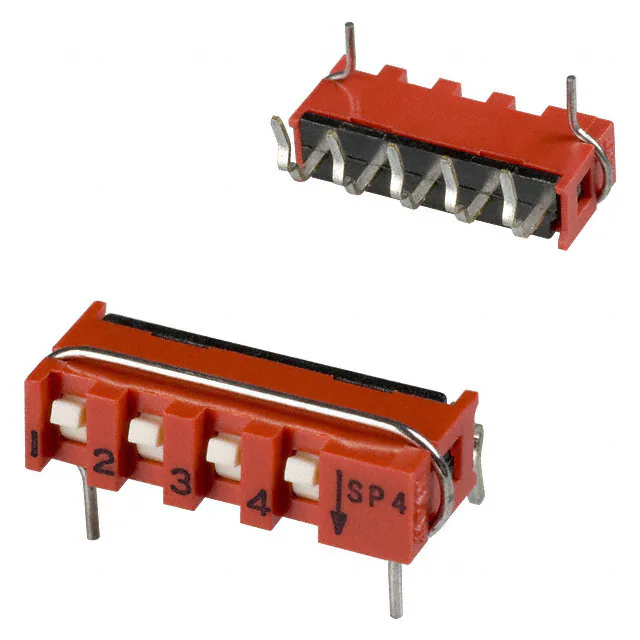

SP04ABSWITCH SLIDE DIP SPST 0.01A 20V |
0 |
|
Datasheet |
SP | Tube | Obsolete | SPST | 4 | 10mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.169" (4.30mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|

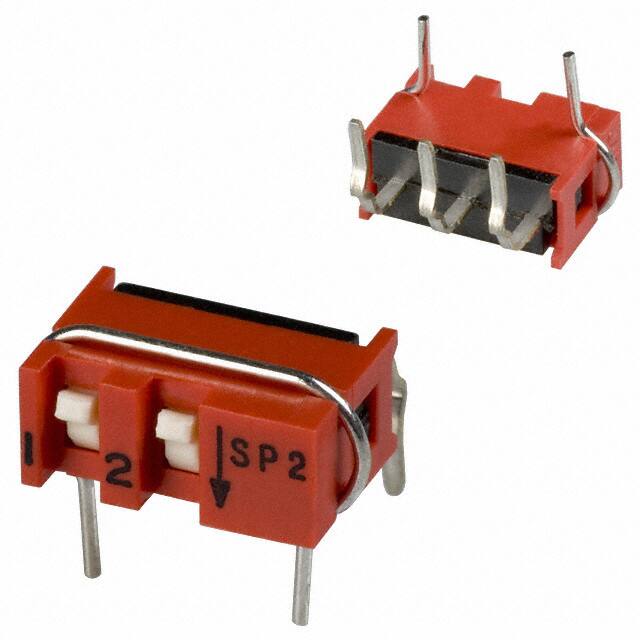

SP02ABSWITCH SLIDE DIP SPST 0.01A 20V |
0 |
|
Datasheet |
SP | Tube | Obsolete | SPST | 2 | 10mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.169" (4.30mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
SP10BSWITCH SLIDE DIP SPST 0.01A 20V |
0 |
|
Datasheet |
SP | Tube | Obsolete | SPST | 10 | 10mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.196" (4.99mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
SP06BSWITCH SLIDE DIP SPST 0.01A 20V |
0 |
|
Datasheet |
SP | Tube | Obsolete | SPST | 6 | 10mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.196" (4.99mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
SP08ABSWITCH SLIDE DIP SPST 0.01A 20V |
0 |
|
Datasheet |
SP | Tube | Obsolete | SPST | 8 | 10mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.169" (4.30mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
SP02BSWITCH SLIDE DIP SPST 0.01A 20V |
0 |
|
Datasheet |
SP | Tube | Obsolete | SPST | 2 | 10mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.196" (4.99mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
SP10ABSWITCH SLIDE DIP SPST 0.01A 20V |
0 |
|
Datasheet |
SP | Tube | Obsolete | SPST | 10 | 10mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.169" (4.30mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|

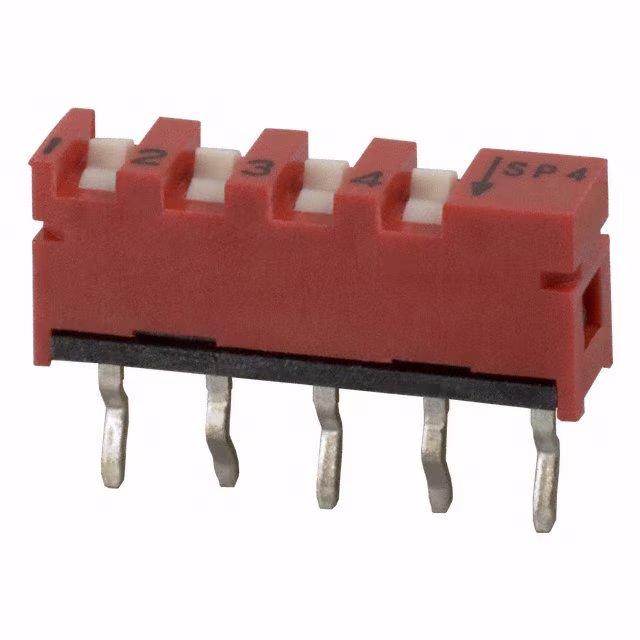

SP04BSWITCH SLIDE DIP SPST 0.01A 20V |
0 |
|
Datasheet |
SP | Tube | Obsolete | SPST | 4 | 10mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.196" (4.99mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|

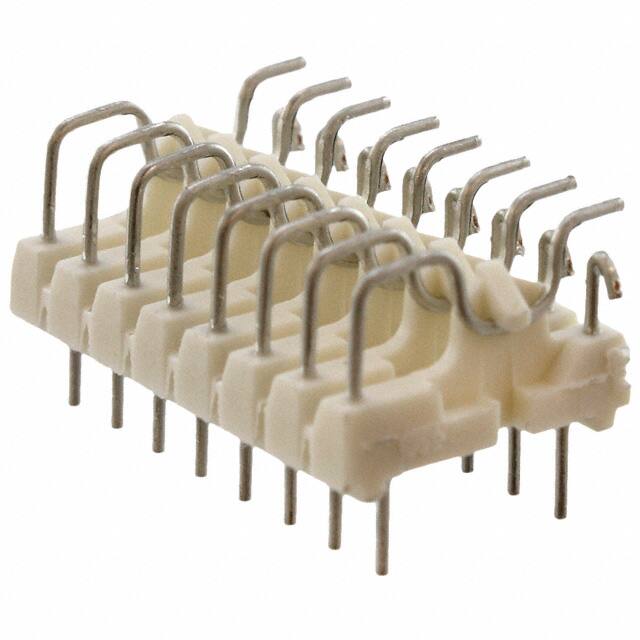

1393546-8SWITCH DIP SPST |
0 |
|
Datasheet |
DIP-FIX | Tray | Obsolete | SPST | 8 | - | - | - | Raised | - | - | 0.319" (8.10mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | - |
|

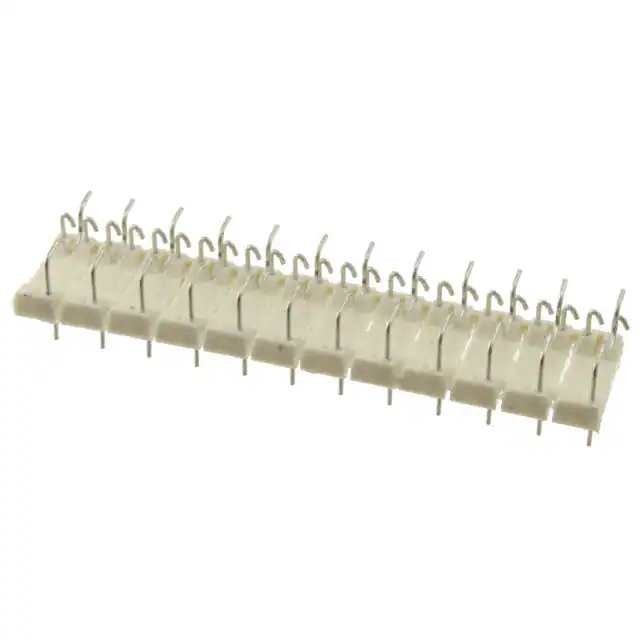

2-1393546-0SWITCH DIP SPDT |
0 |
|
Datasheet |
DIP-FIX | Tray | Obsolete | SPDT | 12 | - | - | - | Raised | - | - | 0.319" (8.10mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | - |
|
|
2-435166-9SWITCH ROCKER DIP SPST |
0 |
|
Datasheet |
7000 | Tube | Obsolete | SPST | 2 | - | - | Rocker | Raised | - | - | - | Through Hole | - | - | No | - | - |
|

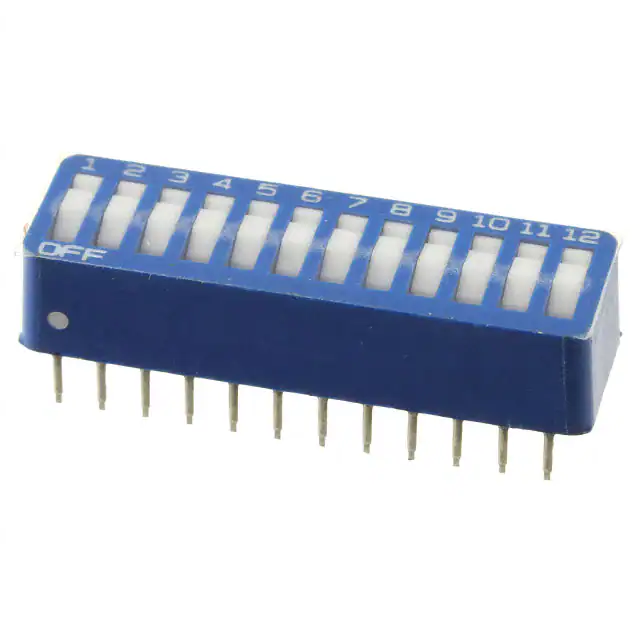

3-435668-2SWITCH ROCKER DIP SPST 0.06A 5V |
0 |
|
Datasheet |
7100 | Tube | Obsolete | SPST | 12 | 60mA | 5VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.290" (7.37mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -55°C ~ 105°C |
