DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TDA04H0SK1SWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
TDA | Tube | Obsolete | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -20°C ~ 85°C |
|
TDA06H0SK1SWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
TDA | Tube | Obsolete | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -20°C ~ 85°C |
|

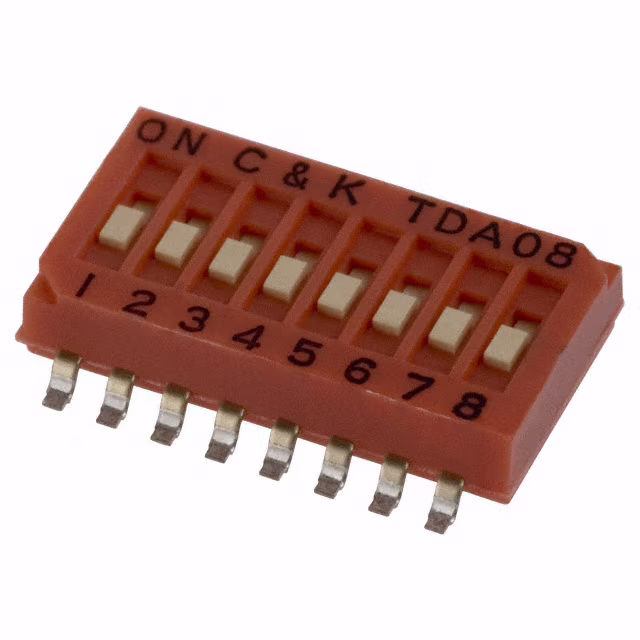

TDA08H0SK1SWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
TDA | Tube | Obsolete | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -20°C ~ 85°C |
|

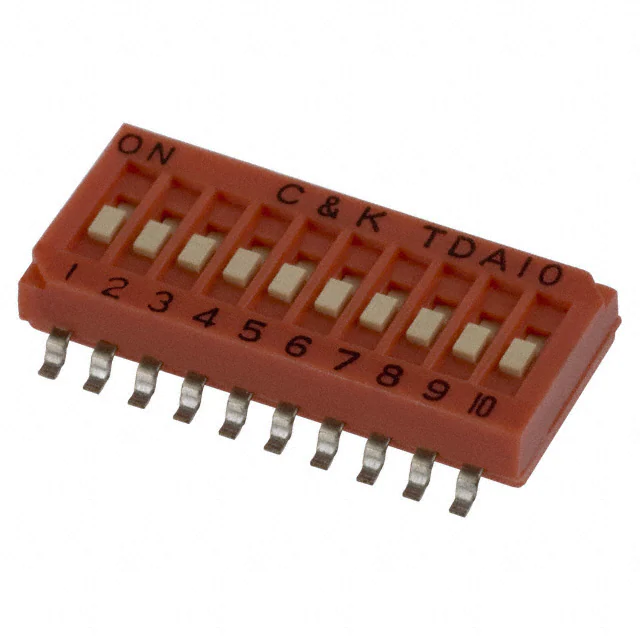

TDA10H0SK1SWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
TDA | Tube | Obsolete | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -20°C ~ 85°C |
|
CRD10RM0CKSWITCH ROTARY DIP BCD 0.4VA 20V |
0 |
|
Datasheet |
CRD | Bag | Obsolete | BCD | 10 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Process Sealed | -20°C ~ 85°C |
|
CRD10CM0CKSW ROTARY DIP BCD COMP 0.4VA 20V |
0 |
|
Datasheet |
CRD | Bag | Obsolete | BCD Complement | 10 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Process Sealed | -20°C ~ 85°C |
|
CRD16RM0CKSWITCH ROTARY DIP HEX 0.4VA 20V |
0 |
|
Datasheet |
CRD | Bag | Obsolete | Hexadecimal | 16 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Process Sealed | -20°C ~ 85°C |
|
CRD16CM0CKSW ROTARY DIP HEX COMP 0.4VA 20V |
0 |
|
Datasheet |
CRD | Bag | Obsolete | Hexadecimal Complement | 16 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Process Sealed | -20°C ~ 85°C |
|

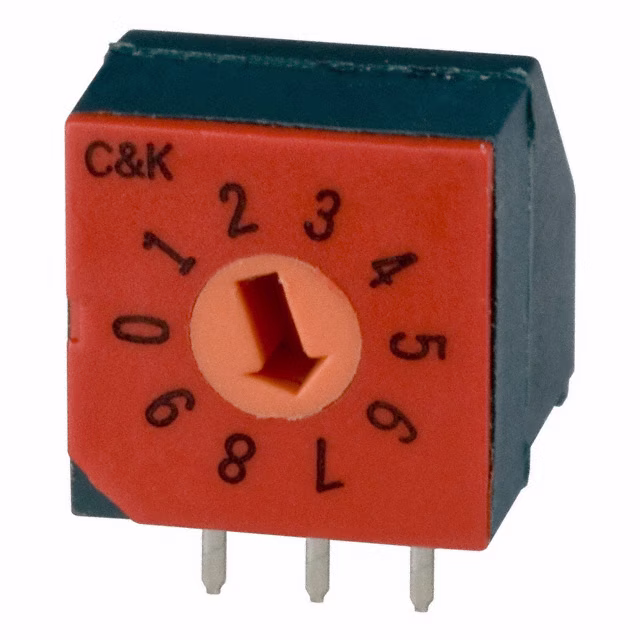

CRD10RM0AKSWITCH ROTARY DIP BCD 0.4VA 20V |
0 |
|
Datasheet |
CRD | Bag | Obsolete | BCD | 10 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.414" (10.51mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Process Sealed | -20°C ~ 85°C |
|
|
CRD10CM0AKSW ROTARY DIP BCD COMP 0.4VA 20V |
0 |
|
Datasheet |
CRD | Bag | Obsolete | BCD Complement | 10 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.414" (10.51mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Process Sealed | -20°C ~ 85°C |
|

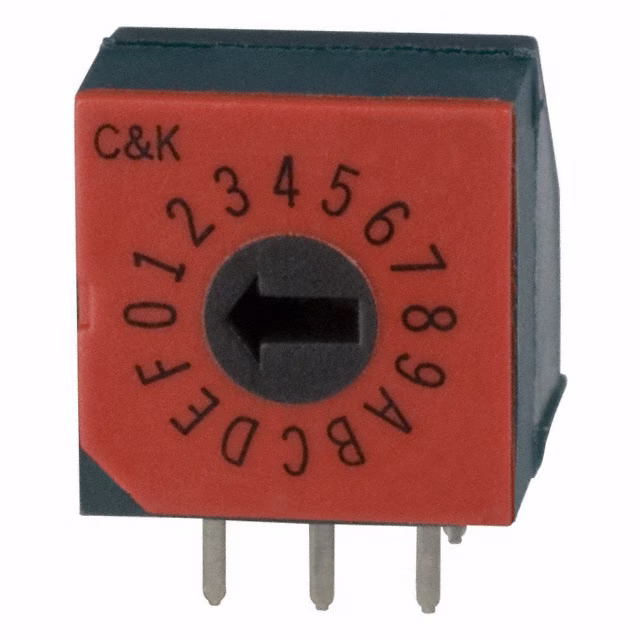

CRD16RM0AKSWITCH ROTARY DIP HEX 0.4VA 20V |
0 |
|
Datasheet |
CRD | Bag | Obsolete | Hexadecimal | 16 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.414" (10.51mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Process Sealed | -20°C ~ 85°C |
|

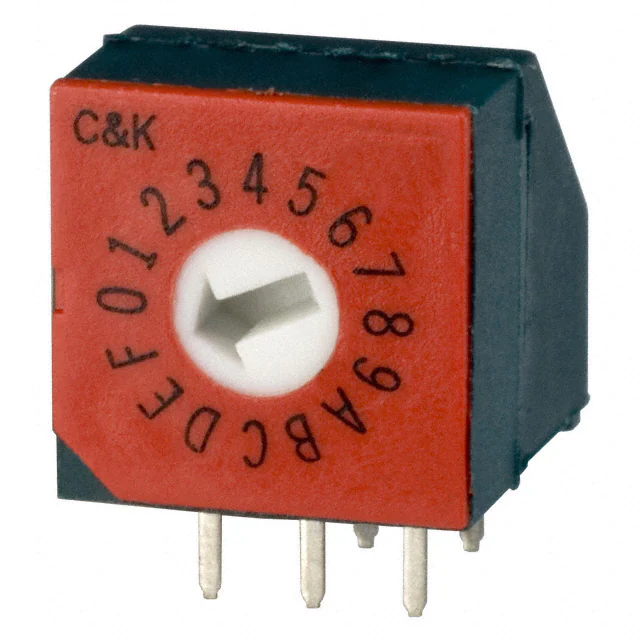

CRD16CM0AKSW ROTARY DIP HEX COMP 0.4VA 20V |
0 |
|
Datasheet |
CRD | Bag | Obsolete | Hexadecimal Complement | 16 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.414" (10.51mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Process Sealed | -20°C ~ 85°C |
|

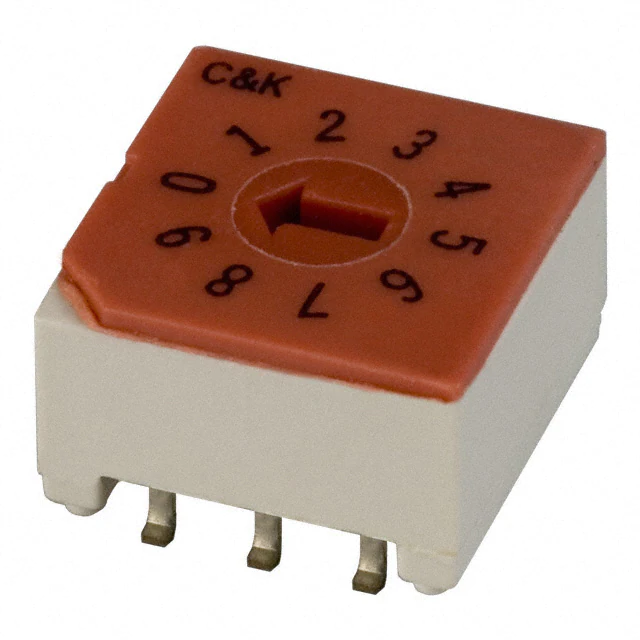

CRD10RM0SKSWITCH ROTARY DIP BCD 0.4VA 20V |
0 |
|
Datasheet |
CRD | Tube | Obsolete | BCD | 10 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.271" (6.88mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Process Sealed | -20°C ~ 85°C |
|
|
CRD10CM0SKSW ROTARY DIP BCD COMP 0.4VA 20V |
0 |
|
Datasheet |
CRD | Tube | Obsolete | BCD Complement | 10 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.271" (6.88mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Process Sealed | -20°C ~ 85°C |
|

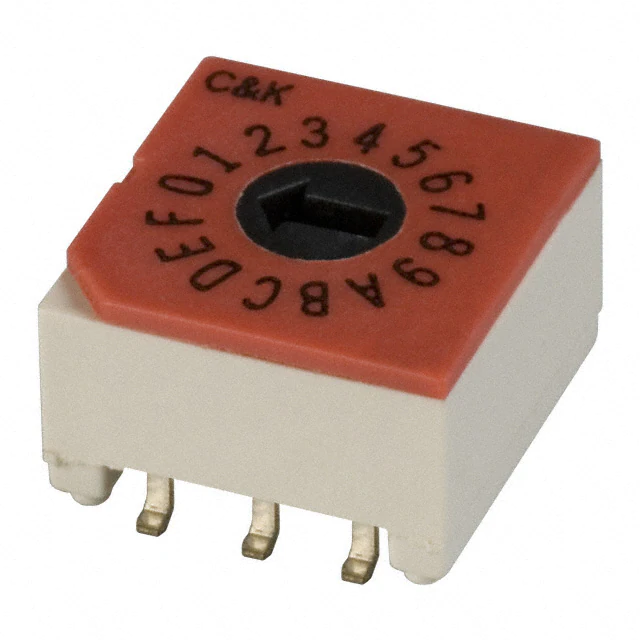

CRD16RM0SKSWITCH ROTARY DIP HEX 0.4VA 20V |
0 |
|
Datasheet |
CRD | Tube | Obsolete | Hexadecimal | 16 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.271" (6.88mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Process Sealed | -20°C ~ 85°C |
|
CRD16CM0SKSW ROTARY DIP HEX COMP 0.4VA 20V |
0 |
|
Datasheet |
CRD | Tube | Obsolete | Hexadecimal Complement | 16 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.271" (6.88mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Process Sealed | -20°C ~ 85°C |
|

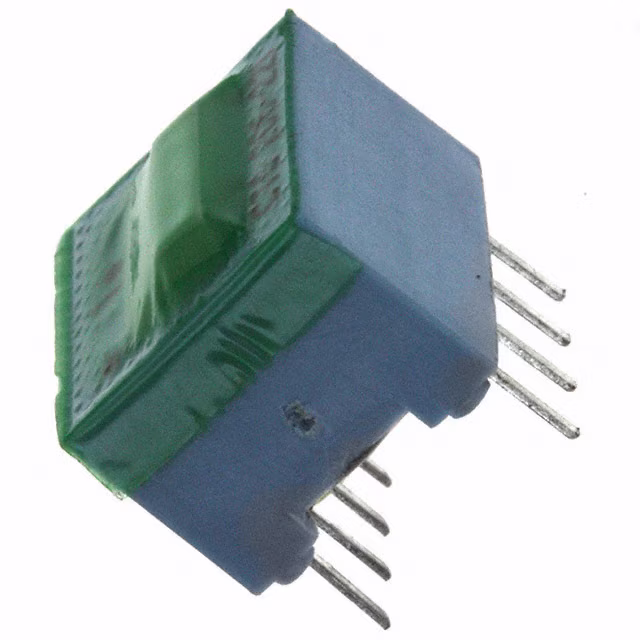

206-221STSWITCH SLIDE DIP DPDT 0.05A 24V |
0 |
|
Datasheet |
206 | Tube | Obsolete | DPDT | 1 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
|
A6A-16CFSW ROTARY DIP HEX COMP 0.1A 28V |
0 |
|
Datasheet |
A6A | Tray | Obsolete | Hexadecimal Complement | 16 | 100mA | 28VDC | Rotary for Tool | Flush, Recessed | - | - | 0.244" (6.20mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | IP64 - Dust Tight, Water Resistant | -10°C ~ 70°C |
|
A6D-6101SWITCH SLIDE DIP SPST 0.03A 30V |
0 |
|
Datasheet |
A6D | Bag | Obsolete | SPST | 6 | 30mA | 30VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.173" (4.40mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
|
A6D-8101SWITCH SLIDE DIP SPST 0.03A 30V |
0 |
|
Datasheet |
A6D | Bag | Obsolete | SPST | 8 | 30mA | 30VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.173" (4.40mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
