DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SD07H0SKSWITCH SLIDE DIP SPST 0.1A 25V |
0 |
|
Datasheet |
SD | Tube | Obsolete | SPST | 7 | 100mA | 25VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
SD08H0SKSWITCH SLIDE DIP SPST 0.1A 25V |
0 |
|
Datasheet |
SD | Tube | Obsolete | SPST | 8 | 100mA | 25VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
SD09H0SKSWITCH SLIDE DIP SPST 0.1A 25V |
0 |
|
Datasheet |
SD | Tube | Obsolete | SPST | 9 | 100mA | 25VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
SD10H0SKSWITCH SLIDE DIP SPST 0.1A 25V |
0 |
|
Datasheet |
SD | Tube | Obsolete | SPST | 10 | 100mA | 25VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|

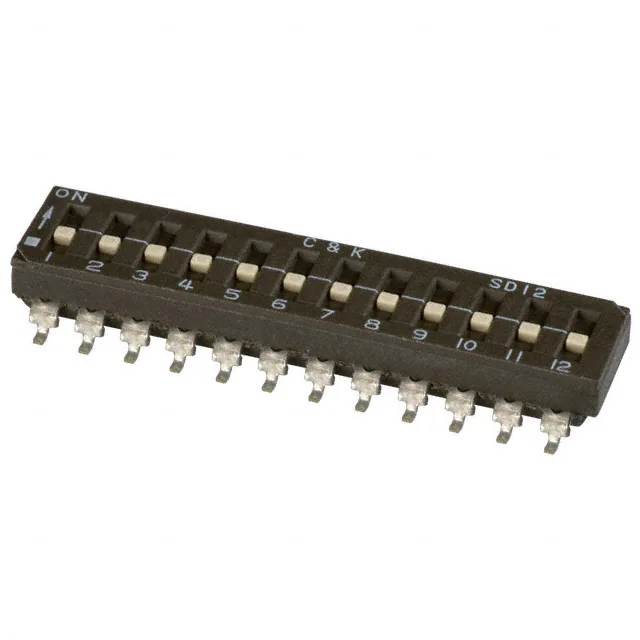

SD12H0SKSWITCH SLIDE DIP SPST 0.1A 25V |
0 |
|
Datasheet |
SD | Tube | Obsolete | SPST | 12 | 100mA | 25VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
SD02H0KSWITCH SLIDE DIP SPST 0.1A 25V |
0 |
|
Datasheet |
SD | Tube | Obsolete | SPST | 2 | 100mA | 25VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.178" (4.52mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|

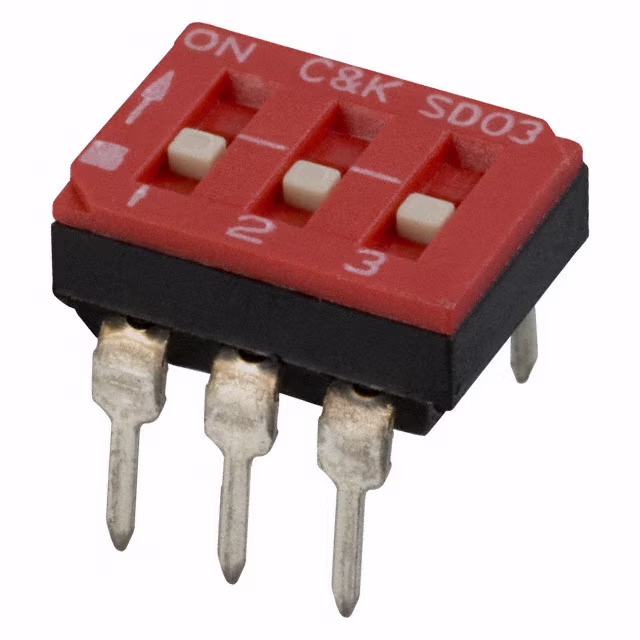

SD03H0KSWITCH SLIDE DIP SPST 0.1A 25V |
0 |
|
Datasheet |
SD | Tube | Obsolete | SPST | 3 | 100mA | 25VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.178" (4.52mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|

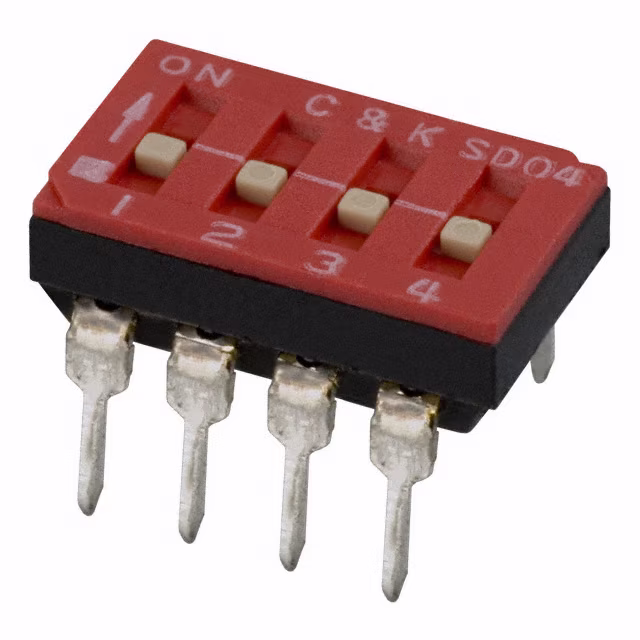

SD04H0KSWITCH SLIDE DIP SPST 0.1A 25V |
0 |
|
Datasheet |
SD | Tube | Obsolete | SPST | 4 | 100mA | 25VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.178" (4.52mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
SD05H0KSWITCH SLIDE DIP SPST 0.1A 25V |
0 |
|
Datasheet |
SD | Tube | Obsolete | SPST | 5 | 100mA | 25VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.178" (4.52mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
SD06H0KSWITCH SLIDE DIP SPST 0.1A 25V |
0 |
|
Datasheet |
SD | Tube | Obsolete | SPST | 6 | 100mA | 25VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.178" (4.52mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|

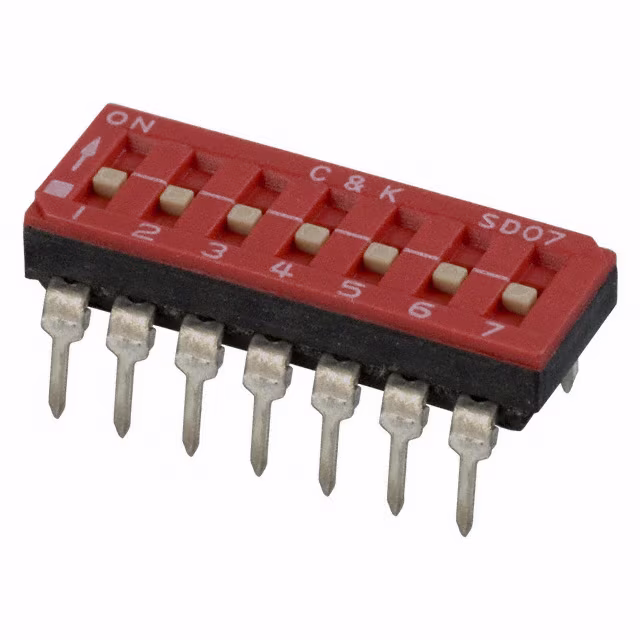

SD07H0KSWITCH SLIDE DIP SPST 0.1A 25V |
0 |
|
Datasheet |
SD | Tube | Obsolete | SPST | 7 | 100mA | 25VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.178" (4.52mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
SD08H0KSWITCH SLIDE DIP SPST 0.1A 25V |
0 |
|
Datasheet |
SD | Tube | Obsolete | SPST | 8 | 100mA | 25VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.178" (4.52mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|

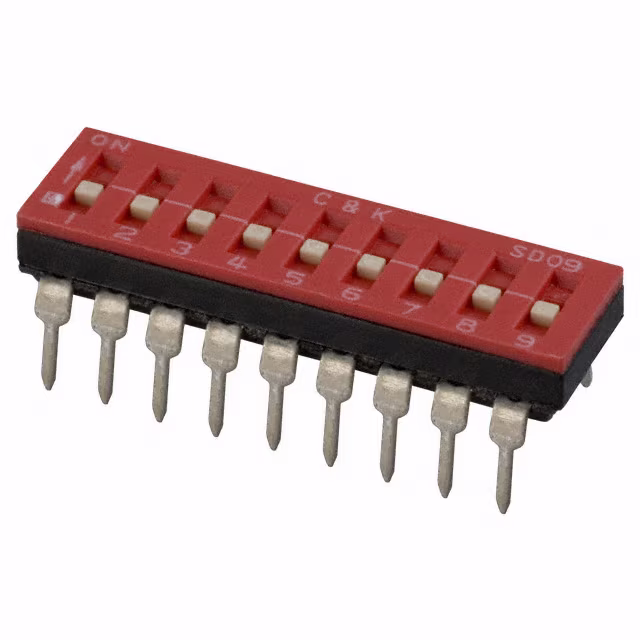

SD09H0KSWITCH SLIDE DIP SPST 0.1A 25V |
0 |
|
Datasheet |
SD | Tube | Obsolete | SPST | 9 | 100mA | 25VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.178" (4.52mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
SD10H0KSWITCH SLIDE DIP SPST 0.1A 25V |
0 |
|
Datasheet |
SD | Tube | Obsolete | SPST | 10 | 100mA | 25VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.178" (4.52mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
SD12H0KSWITCH SLIDE DIP SPST 0.1A 25V |
0 |
|
Datasheet |
SD | Tube | Obsolete | SPST | 12 | 100mA | 25VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.178" (4.52mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
78K01SWITCH SLIDE DIP DPDT 0.15A 30V |
0 |
|
- |
78 | Bag | Obsolete | DPDT | 1 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

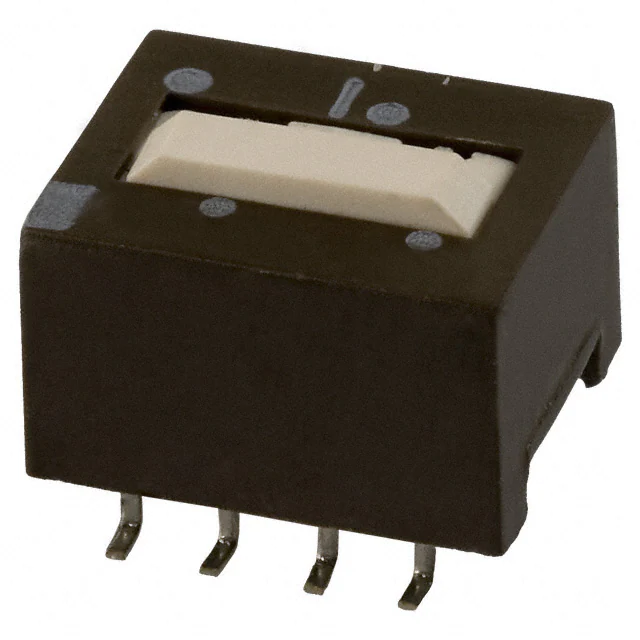

204-221STSWITCH SLIDE DIP DPDT 0.05A 24V |
0 |
|
Datasheet |
204 | Tube | Obsolete | DPDT | 1 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.394" (10.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|

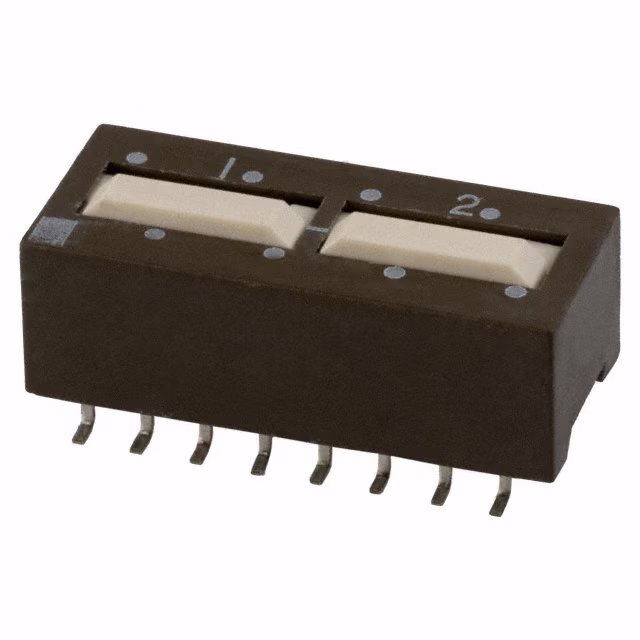

204-222STSWITCH SLIDE DIP DPDT 0.05A 24V |
0 |
|
Datasheet |
204 | Tube | Obsolete | DPDT | 2 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.394" (10.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
204-223STSWITCH SLIDE DIP DPDT 0.05A 24V |
0 |
|
Datasheet |
204 | Tube | Obsolete | DPDT | 3 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.394" (10.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
|
94HCB08SWITCH ROTARY DIP OCTAL 0.1A 50V |
0 |
|
Datasheet |
94H | Bag | Obsolete | Octal | 8 | 100mA | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.395" (10.02mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed | -40°C ~ 85°C |
