DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CD16CM0CBSW ROTARY DIP HEX COMP 0.4VA 20V |
0 |
|
Datasheet |
CD | Tube | Active | Hexadecimal Complement | 16 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.168" (4.27mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Process Sealed | -25°C ~ 85°C |
|

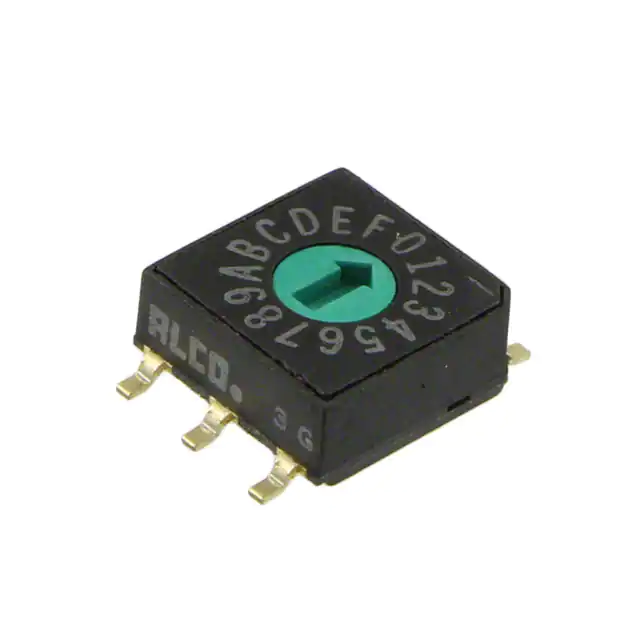

2-1825013-0SWITCH ROTARY DIP HEX 0.4VA 20V |
0 |
|
Datasheet |
MRD | Tape & Reel (TR) | Obsolete | Hexadecimal | 16 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.122" (3.10mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | Process Sealed | -30°C ~ 85°C |
|
78RB03SRATSWITCH SLIDE DIP SPST 0.15A 30V |
0 |
|
Datasheet |
78 | Tube | Active | SPST | 3 | 150mA | 30VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.380" (9.64mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
|
78RB06SRATSWITCH SLIDE DIP SPST 0.15A 30V |
0 |
|
Datasheet |
78 | Tube | Active | SPST | 6 | 150mA | 30VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.380" (9.64mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
|
FR01FC16PSW ROTARY DIP HEX COMP 0.1A 5V |
0 |
|
Datasheet |
FR01 | Bulk | Active | Hexadecimal Complement | 16 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.150" (3.81mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
|
FR01KC10PSW ROTARY DIP BCD COMP 0.1A 5V |
0 |
|
Datasheet |
FR01 | Bulk | Active | BCD Complement | 10 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.426" (10.82mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
|
FR01KR16PSWITCH ROTARY DIP HEX 0.1A 5V |
0 |
|
Datasheet |
FR01 | Bulk | Active | Hexadecimal | 16 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.426" (10.82mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|

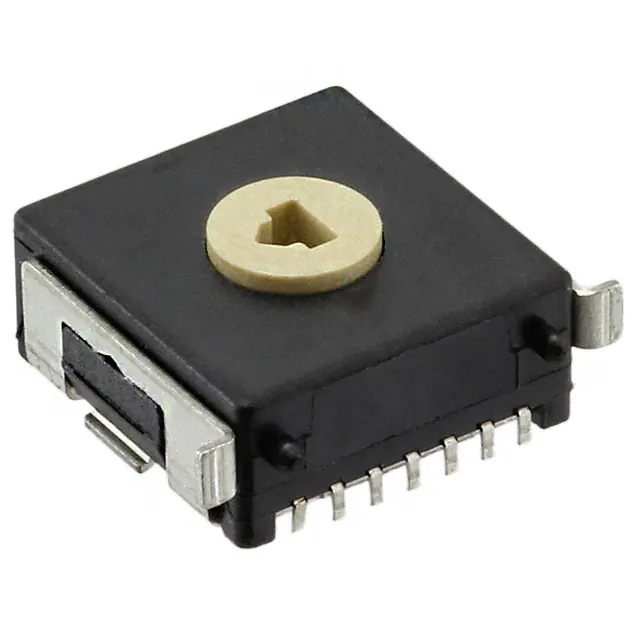

P56SMT964LTRSW ROTARY DIP GRAY CODE 0.1A 24V |
0 |
|
- |
P56 | Tape & Reel (TR) | Obsolete | Gray Code | 64 | 100mA | 24VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.480" (12.19mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | Yes | - | -25°C ~ 95°C |
|

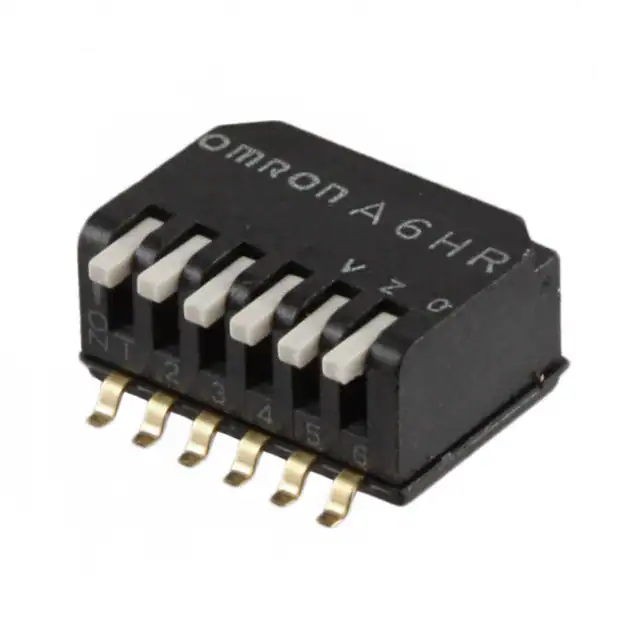

A6HR-6104-R100SWITCH PIANO DIP SPST 0.025A 24V |
0 |
|
Datasheet |
A6HR | Tape & Reel (TR) | Active | SPST | 6 | 25mA | 24VDC | Piano | Raised | - | Gold | 0.165" (4.20mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | No | - | -30°C ~ 85°C |
|
|
76PRB07STSWITCH PIANO DIP SPST 0.15A 30V |
0 |
|
Datasheet |
76 | Tube | Active | SPST | 7 | 150mA | 30VDC | Piano | Raised | Copper Alloy | Gold | 0.301" (7.65mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
|
76PRB08STSWITCH PIANO DIP SPST 0.15A 30V |
0 |
|
Datasheet |
76 | Tube | Active | SPST | 8 | 150mA | 30VDC | Piano | Raised | Copper Alloy | Gold | 0.301" (7.65mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
|
ND3KR10H-RSWITCH ROTARY DIP BCD 0.1A 5V |
0 |
|
Datasheet |
ND3 | Tape & Reel (TR) | Obsolete | BCD | 10 | 100mA | 5VDC | Rotary with Shaft | Raised | Beryllium Copper | Gold | 0.316" (8.03mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | Yes | Epoxy Sealed Terminals | -25°C ~ 85°C |
|
|
ND3KR16H-RSWITCH ROTARY DIP HEX 0.1A 5V |
0 |
|
Datasheet |
ND3 | Tape & Reel (TR) | Obsolete | Hexadecimal | 16 | 100mA | 5VDC | Rotary with Shaft | Raised | Beryllium Copper | Gold | 0.316" (8.03mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | Yes | Epoxy Sealed Terminals | -25°C ~ 85°C |
|
|
76PRB10TSWITCH PIANO DIP SPST 0.15A 30V |
0 |
|
Datasheet |
76 | Tube | Active | SPST | 10 | 150mA | 30VDC | Piano | Raised | Copper Alloy | Gold | 0.301" (7.65mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
76HPSB10GWTSWITCH PIANO DIP SPST 0.15A 30V |
0 |
|
Datasheet |
76HP | Bulk | Active | SPST | 10 | 150mA | 30VDC | Piano | Raised | Copper Alloy | Gold | 0.337" (8.56mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
DHNF10FTDIP SWITCH IKH HALF PITCH |
0 |
|
- |
DHN | Bulk | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.059" (1.50mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|
78HJ04GWRTSWITCH SLIDE DIP SPDT 0.15A 30V |
0 |
|
Datasheet |
78H | Tape & Reel (TR) | Active | SPDT | 4 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.327" (8.30mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
147353-2SWITCH ROCKER DIP SPST |
0 |
|
Datasheet |
7100 | Tube | Active | SPST | 5 | - | - | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.290" (7.37mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | - |
|
|
NDA12TVDIP SWITCH DA RIGHT ANGLE |
0 |
|
Datasheet |
NDA | Bulk | Active | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 70°C |
|
|
P60ASMT101DIP ROTARY SWITCH P60 10MM |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
