DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P36SSG11DIP ROTARY SWITCH P25 7MM LOW |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DMR08TVTRDIP SWITCH DM LOW PROFILE |
0 |
|
Datasheet |
DM | Bulk | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.118" (3.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
|
FD01KR16P-SSW ROTARY DIP HEX COMP 100MA 5V |
0 |
|
Datasheet |
FD01 | Tube | Active | Hexadecimal | 16 | 0.4VA | 20VAC/DC | Rotary with Shaft | Raised | Brass | Gold | 0.417" (10.60mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
|
FD01KR10P-SSW ROTARY DIP BCD COMP 100MA 5V |
0 |
|
Datasheet |
FD01 | Tube | Active | BCD | 10 | 0.4VA | 20VAC/DC | Rotary with Shaft | Raised | Brass | Gold | 0.417" (10.60mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
|
90HGBW10PRTSWITCH SLIDE DIP SPST 0.01A 30V |
0 |
|
- |
90HGB | Tape & Reel (TR) | Obsolete | SPST | 10 | 10mA | 30VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.190" (4.83mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
P36S103TRSWITCH ROTARY DIP HEX 0.1A 24V |
0 |
|
Datasheet |
P36S | Tape & Reel (TR) | Active | Hexadecimal | 16 | 100mA | 24VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.152" (3.85mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -30°C ~ 90°C |
|
P36S106TRSW ROTARY DIP HEX COMP 0.1A 24V |
0 |
|
Datasheet |
P36S | Tape & Reel (TR) | Active | Hexadecimal Complement | 16 | 100mA | 24VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.152" (3.85mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -30°C ~ 90°C |
|
|
1-1825008-6SWITCH ROTARY DIP HEX 0.4VA 20V |
0 |
|
Datasheet |
DR | Bulk | Active | Hexadecimal | 16 | 0.4VA | 20VAC/DC | Rotary with Knob | Raised | Copper Alloy | Gold | 0.413" (10.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -30°C ~ 85°C |
|
|
76RSB04SLTSWITCH ROCKER DIP SPST 0.15A 30V |
0 |
|
Datasheet |
76 | Tube | Active | SPST | 4 | 150mA | 30VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.292" (7.41mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Position Identification Line, Tape Seal | -40°C ~ 85°C |
|

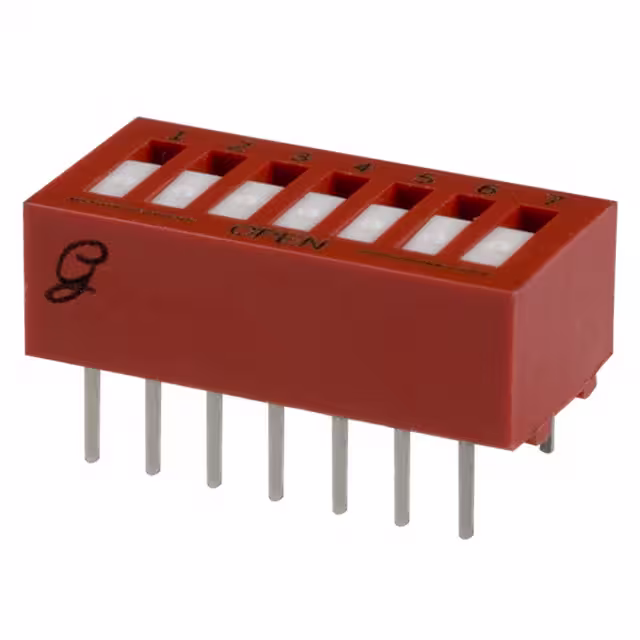

76RSB07TSWITCH ROCKER DIP SPST 0.15A 30V |
0 |
|
Datasheet |
76 | Tube | Active | SPST | 7 | 150mA | 30VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.292" (7.41mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
FR01AC10PB-WSW ROTARY DIP BCD COMP 0.1A 5V |
0 |
|
Datasheet |
FR01 | Bulk | Obsolete | BCD Complement | 10 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 1.104" (28.05mm) | Panel Mount | PC Pin | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 85°C |
|
|
FR01AC10PB-W-SSW ROTARY DIP BCD COMP 0.1A 5V |
0 |
|
Datasheet |
FR01 | Tube | Obsolete | BCD Complement | 10 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 1.104" (28.05mm) | Panel Mount | PC Pin | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 85°C |
|
|
DMR10TVTRDIP SWITCH DM LOW PROFILE |
0 |
|
Datasheet |
DM | Bulk | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.118" (3.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
|
2-2396234-8SWITCH ROTARY DIP VERT GW |
0 |
|
Datasheet |
MRD | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
2396234-8SWITCH ROTARY DIP 16P VERT SMD |
0 |
|
Datasheet |
MRSS | Tape & Reel (TR) | Active | Hexadecimal Complement | 16 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.122" (3.10mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
2396234-3SWITCH ROTARY DIP 10P VERT SMD |
0 |
|
Datasheet |
MRSS | Tape & Reel (TR) | Active | BCD Complement | 10 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.122" (3.10mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
2-2396234-3SWITCH ROTARY DIP 10P VERT SMD |
0 |
|
Datasheet |
MRSS | Tape & Reel (TR) | Active | BCD | 10 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.122" (3.10mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
76HPSB08GWRSWITCH PIANO DIP SPST 0.15A 30V |
0 |
|
Datasheet |
76HP | Tape & Reel (TR) | Obsolete | SPST | 8 | 150mA | 30VDC | Piano | Raised | Copper Alloy | Gold | 0.337" (8.56mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
78HJ01GWRTSWITCH SLIDE DIP SPDT 0.15A 30V |
0 |
|
Datasheet |
78H | Tape & Reel (TR) | Active | SPDT | 1 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.327" (8.30mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

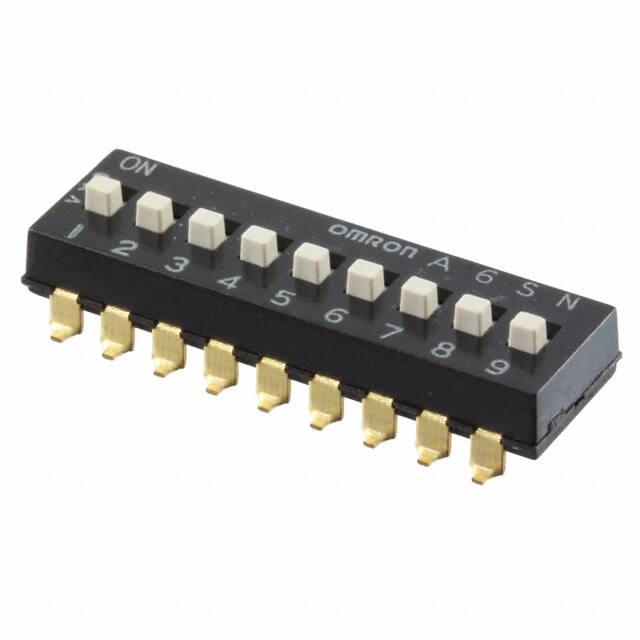

A6SN-9104-R100SWITCH SLIDE DIP SPST 0.025A 24V |
16 |
|
Datasheet |
A6SN | Tape & Reel (TR) | Active | SPST | 9 | 25mA | 24VDC | Slide (Standard) | Raised | - | - | 0.214" (5.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
