DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
209-3MSTFSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
0 |
|
Datasheet |
209 | Tube | Active | SPST | 3 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -40°C ~ 85°C |
|

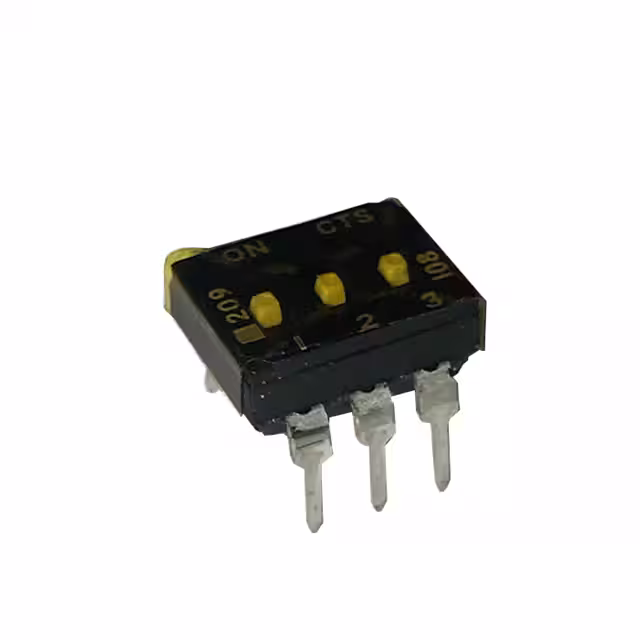

209-3MSTFDSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
0 |
|
Datasheet |
209 | Tube | Active | SPST | 3 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -40°C ~ 85°C |
|
219-3ESSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
0 |
|
Datasheet |
219 | Tube | Active | SPST | 3 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.184" (4.67mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
|
219-3ESFSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
0 |
|
Datasheet |
219 | Tube | Active | SPST | 3 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.184" (4.67mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|

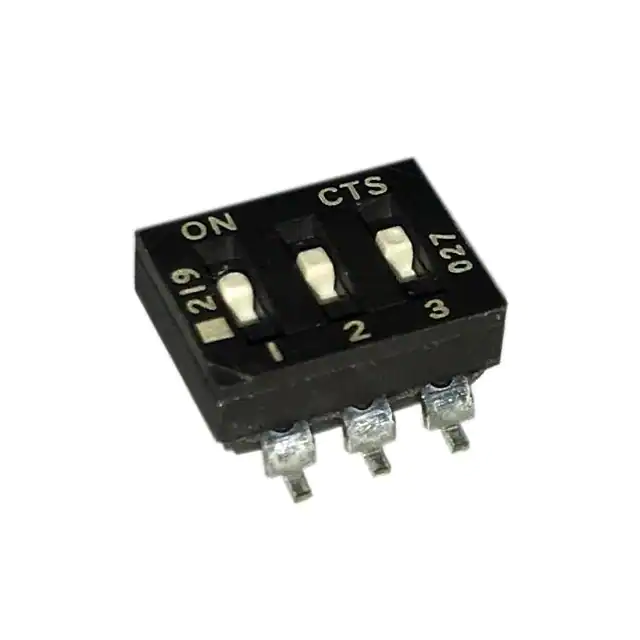

219-3LPSSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
0 |
|
Datasheet |
219 | Tube | Active | SPST | 3 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.160" (4.06mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|

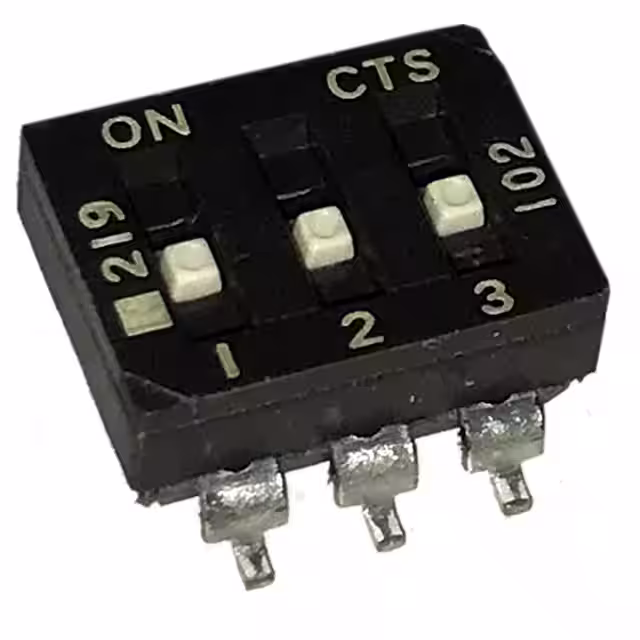

219-3LPSFSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
0 |
|
Datasheet |
219 | Tube | Active | SPST | 3 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.160" (4.06mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|

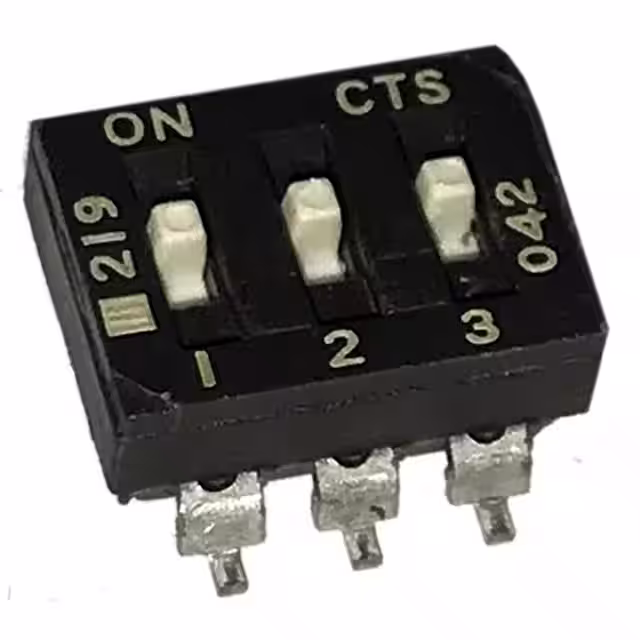

219-3MSSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
0 |
|
Datasheet |
219 | Tube | Active | SPST | 3 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|

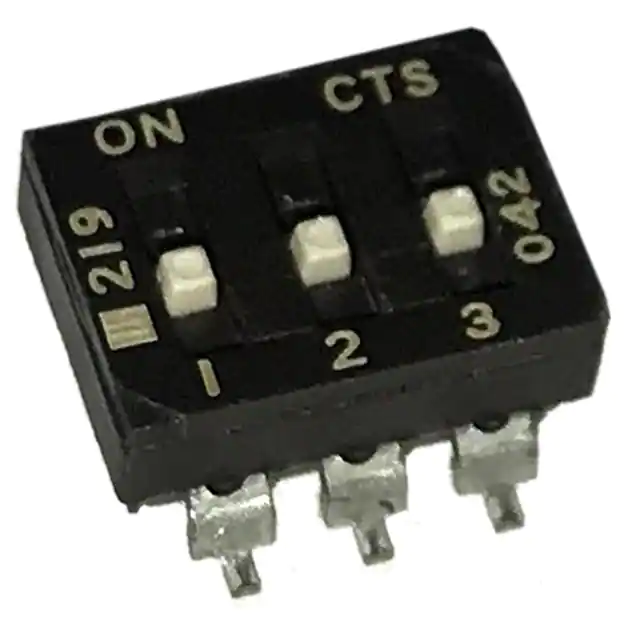

219-3MSFSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
0 |
|
Datasheet |
219 | Tube | Active | SPST | 3 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|

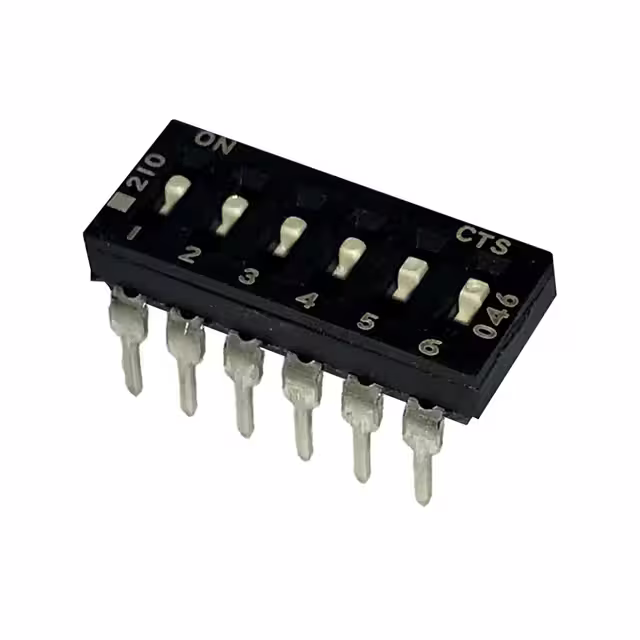

210-6LPSSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
0 |
|
Datasheet |
210 | Tube | Active | SPST | 6 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
210-6ESSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
0 |
|
Datasheet |
210 | Tube | Active | SPST | 6 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.204" (5.18mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
