DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
435802-1SWITCH PIANO DIP SPST 0.025A 24V |
0 |
|
Datasheet |
7000 | Tube | Active | SPST | 8 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.290" (7.37mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 105°C |
|
IKD0403101DIP SWITCH IKD 24VDC |
0 |
|
Datasheet |
IKD | Bulk | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.157" (4.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
|
ADPA08SSWITCH PIANO DIP SPST 0.025A 24V |
0 |
|
Datasheet |
ADPA | Tube | Obsolete | SPST | 8 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.274" (6.95mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
DR3MS-16R-TRSWITCH ROTARY DIP HEX 0.025A 24V |
0 |
|
Datasheet |
DR | Tape & Reel (TR) | Active | Hexadecimal | 16 | 25mA | 24VDC | Rotary with Shaft | Raised | Copper | Gold | 0.303" (7.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -25°C ~ 80°C |
|
SDA09H0SBRSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
SDA | Tape & Reel (TR) | Active | SPST | 9 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
97C04RTSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
97 | Tape & Reel (TR) | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.063" (1.60mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|
|
DR3-16R-BSWITCH ROTARY DIP HEX 0.025A 24V |
0 |
|
Datasheet |
DR | Tube | Active | Hexadecimal | 16 | 25mA | 24VDC | Rotary for Tool | Flush, Recessed | Copper | Gold | 0.177" (4.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 80°C |
|
|
IKD0404101DIP SWITCH IKD 24VDC |
0 |
|
Datasheet |
IKD | Bulk | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.118" (3.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
CFS-0801MBSWITCH SLIDE DIP SPST 0.1A 6V |
0 |
|
Datasheet |
CFS | Tube | Active | SPST | 8 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
CRE10RRDL0CSWITCH ROTARY DIP BCD 0.15A 42V |
0 |
|
Datasheet |
CRE | Tray | Active | BCD | 10 | 150mA | 42VDC | Rotary with Shaft | Raised | Brass | Gold | 0.618" (15.70mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
|
CRE10CRDL0CSW ROTARY DIP BCD COMP 0.15A 42V |
0 |
|
Datasheet |
CRE | Tray | Active | BCD Complement | 10 | 150mA | 42VDC | Rotary with Shaft | Raised | Brass | Gold | 0.618" (15.70mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
|
TDA02H0JB1RSWITCH SLIDE DIP SPST 25MA 24VDC |
0 |
|
Datasheet |
TDA | Tape & Reel (TR) | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | - | -40°C ~ 85°C |
|

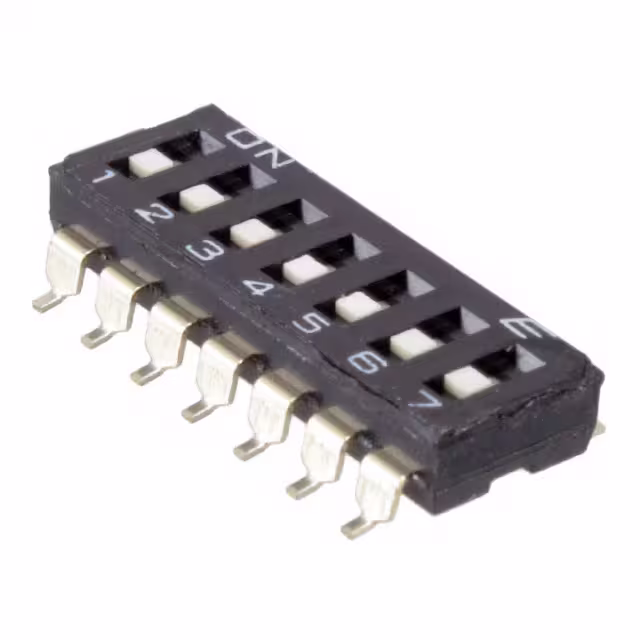

KAE07TGGTSWITCH SLIDE DIP SPST 0.025A 24V |
23 |
|
Datasheet |
KAE | Tube | Active | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper | Gold | 0.148" (3.75mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 85°C |
|
|
MPG301BTSW PIANO DIP DPST 0.025A 24V |
0 |
|
Datasheet |
MPG | Tube | Active | DPST-NO/NC | 1 | 25mA | 24VDC | Piano | Raised | Brass | Gold | 0.381" (9.68mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -25°C ~ 70°C |
|
|
A6H-2102-PMSWITCH DIP |
0 |
|
Datasheet |
* | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MPG201ATTRANSFER DIP SWITCH MPG |
0 |
|
- |
MPG | Bulk | Active | DPST-NO/NC | 1 | 25mA | 24VDC | Piano | Raised | Brass | Gold | 0.381" (9.68mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 70°C |
|
SD04H0SBDSWITCH SLIDE DIP SPST 0.1A 25V |
0 |
|
Datasheet |
SD | Tube | Active | SPST | 4 | 100mA | 25VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.155" (3.94mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
97C02SRTSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
97 | Tape & Reel (TR) | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.063" (1.60mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -40°C ~ 85°C |
|

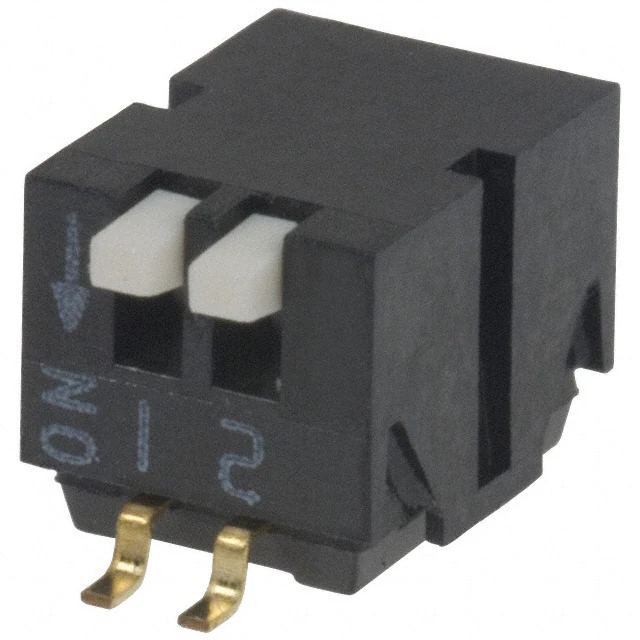

CHP-020ASWITCH PIANO DIP SPST 0.1A 6V |
0 |
|
Datasheet |
CHP | Bulk | Active | SPST | 2 | 100mA | 6VDC | Piano | Raised | Copper Alloy | Gold | 0.181" (4.60mm) | Surface Mount, Right Angle | J Lead | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|
CHP-020BSWITCH PIANO DIP SPST 0.1A 6V |
0 |
|
Datasheet |
CHP | Bulk | Active | SPST | 2 | 100mA | 6VDC | Piano | Raised | Copper Alloy | Gold | 0.181" (4.60mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
