Aluminum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PCV1C221MCL6GSCAP ALUM POLY 220UF 20% 16V SMD |
1,359 |
|
Datasheet |
PCV | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 16 V | 27mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 2 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.394" (10.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
EEH-ZS1E561PCAP ALUMHYB 560UF 20% 25V SMD |
696 |
|
Datasheet |
ZS | Tape & Reel (TR) | Active | Hybrid | 560 µF | ±20% | 25 V | 11mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 600 mA @ 100 Hz | 4 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.661" (16.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
PCV1H390MCL1GSCAP ALUM POLY 39UF 20% 50V SMD |
445 |
|
Datasheet |
PCV | Tape & Reel (TR) | Active | Polymer | 39 µF | ±20% | 50 V | 34mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 2 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|

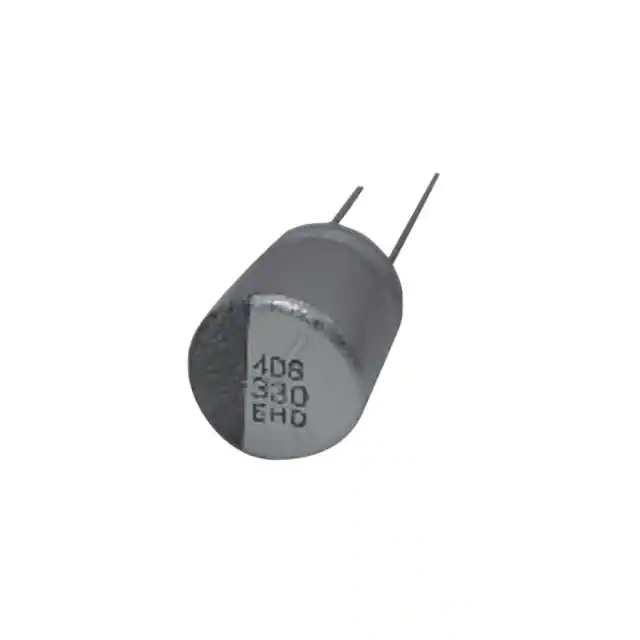

HHSD630ELL101MJC5SCAP ALUM HYBRID 100UF 20% 63V TH |
1,694 |
|
Datasheet |
HSD | Bulk | Active | Hybrid | 100 µF | ±20% | 63 V | 20mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 260 mA @ 120 Hz | 2.6 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
-Series-(THT-Tape-And-Box)-Photo-G12.jpg)
|
EEH-AZSH271UBCAP ALUM HYBRID 270UF 20% 50V TH |
753 |
|
Datasheet |
ZSU-A | Cut Tape (CT) | Active | Hybrid | 270 µF | ±20% | 50 V | 13mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 740 mA @ 120 Hz | 3.7 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.657" (16.70mm) | - | Through Hole |
|
25PZJ820M10X15CAP ALUM HYBRID 820UF 20% 25V TH |
5,763 |
|
Datasheet |
PZJ | Bulk | Active | Hybrid | 820 µF | ±20% | 25 V | 11mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 200 mA @ 100 Hz | 4 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.650" (16.50mm) | - | Through Hole |
|
HHXA250ARA221MHA0GCAP ALUMHYB 220UF 20% 25V SMD |
495 |
|
Datasheet |
HXA | Tape & Reel (TR) | Not For New Designs | Hybrid | 220 µF | ±20% | 25 V | 27mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 1.6 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.406" (10.30mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
50PZH180M10X15CAP ALUM HYBRID 180UF 20% 50V TH |
5,784 |
|
Datasheet |
PZH | Bulk | Active | Hybrid | 180 µF | ±20% | 50 V | 13mOhm | 4000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 210 mA @ 100 Hz | 4.2 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.650" (16.50mm) | - | Through Hole |
|
A700V156M025ATE040CAP ALUM POLY 15UF 20% 25V SMD |
2,656 |
|
Datasheet |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 15 µF | ±20% | 25 V | 40mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 2.6 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
EEH-ZS1E681UVCAP ALUMHYB 680UF 20% 25V SMD |
1,143 |
|
Datasheet |
ZSU Anti-Vibration | Tape & Reel (TR) | Active | Hybrid | 680 µF | ±20% | 25 V | 14mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 700 mA @ 120 Hz | 3.5 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.516" (13.10mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
EEH-ZE1V151VCAP ALUMHYB 150UF 20% 35V SMD |
622 |
|
Datasheet |
ZE, Anti-Vibration | Tape & Reel (TR) | Active | Hybrid | 150 µF | ±20% | 35 V | 27mOhm | 2000 Hrs @ 145°C | -55°C ~ 145°C | AEC-Q200 | Automotive | - | 105 mA @ 100 Hz | 700 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
EEH-ZE1J330VCAP ALUM HYBRID 33UF 20% 63V SMD |
500 |
|
Datasheet |
ZE, Anti-Vibration | Tape & Reel (TR) | Active | Hybrid | 33 µF | ±20% | 63 V | 40mOhm | 2000 Hrs @ 145°C | -55°C ~ 145°C | AEC-Q200 | Automotive | - | 60 mA @ 100 Hz | 600 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
EEH-ZS1H181UVCAP ALUMHYB 180UF 20% 50V SMD |
336 |
|
Datasheet |
ZSU Anti-Vibration | Tape & Reel (TR) | Active | Hybrid | 180 µF | ±20% | 50 V | 17mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 640 mA @ 120 Hz | 3.2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.516" (13.10mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
A781MS107M1JLAV030CAP ALUMHYB 100UF 20% 63V SMD |
3,709 |
|
Datasheet |
A781, Anti-Vibration | Tape & Reel (TR) | Active | Hybrid | 100 µF | ±20% | 63 V | 30mOhm | 2000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | Anti-Vibration | 1.408 A @ 100 Hz | 6.4 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.520" (13.20mm) | 0.425" L x 0.406" W (10.80mm x 10.30mm) | Surface Mount |
|
RNU1E331MDNASQPHCAP ALUM POLY 330UF 20% 25V TH |
231 |
|
Datasheet |
FPCAP, RNU | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 25 V | 14mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 500 mA @ 120 Hz | 5 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
|
MAL218197601E3CAP ALUM POLY 47UF 20% 25V SMD |
9,300 |
|
Datasheet |
181 CPL | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 1.3 A @ 100 kHz | 49 mOhms | - | 0.236" Dia (6.00mm) | 0.232" (5.90mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
APXA160ARA181MHC0GCAP ALUM POLY 180UF 20% 16V SMD |
1,828 |
|
Datasheet |
NPCAP™-PXA | Tape & Reel (TR) | Active | Polymer | 180 µF | ±20% | 16 V | 16mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.36 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|

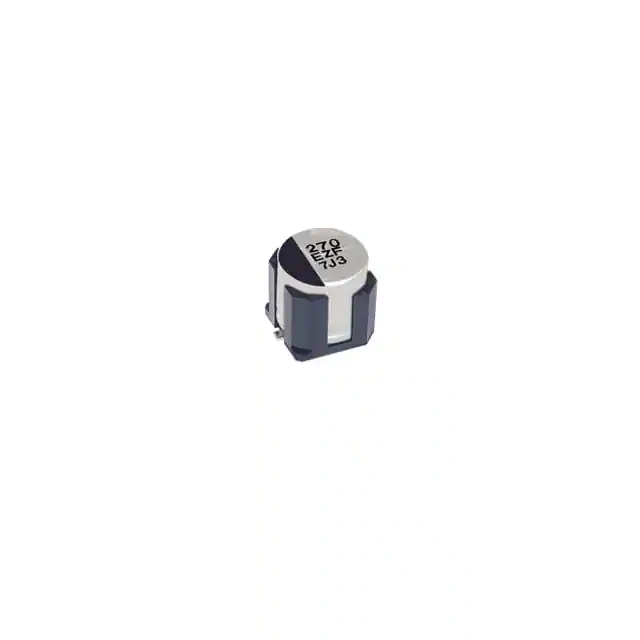

EEH-ZF1H101VCAP ALUMHYB 100UF 20% 50V SMD |
530 |
|
Datasheet |
ZF, Anti-Vibration | Tape & Reel (TR) | Active | Hybrid | 100 µF | ±20% | 50 V | 28mOhm | 1000 Hrs @ 150°C | -55°C ~ 150°C | AEC-Q200 | Automotive | - | 135 mA @ 100 Hz | 900 mA @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.425" (10.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
EEH-ZU1H151VCAP ALUMHYB 150UF 20% 50V SMD |
303 |
|
Datasheet |
ZU, Anti-Vibration | Tape & Reel (TR) | Active | Hybrid | 150 µF | ±20% | 50 V | 12mOhm | 4000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 690 mA @ 100 Hz | 4.6 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.516" (13.10mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
EEF-JX0E391RBCAP ALUM POLY 390UF 20% 2.5V SMD |
5,924 |
|
Datasheet |
SP-Cap JX | Tape & Reel (TR) | Active | Polymer | 390 µF | ±20% | 2.5 V | 3mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 10.2 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
