Aluminum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEH-ZC1H330XVCAP ALUM HYBRID 33UF 20% 50V SMD |
2,918 |
|
Datasheet |
ZC, Anti-Vibration | Tape & Reel (TR) | Active | Hybrid | 33 µF | ±20% | 50 V | 40mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | Anti-Vibration | 110 mA @ 100 Hz | 1.1 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.327" (8.30mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
A784MS107M1JLAV028CAP ALUMHYB 100UF 20% 63V SMD |
1,993 |
|
Datasheet |
A784, Anti-Vibration | Tape & Reel (TR) | Active | Hybrid | 100 µF | ±20% | 63 V | 28mOhm | 1000 Hrs @ 150°C | -55°C ~ 150°C | AEC-Q200 | Automotive | Anti-Vibration | 572 mA @ 100 Hz | 2.6 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.520" (13.20mm) | 0.425" L x 0.406" W (10.80mm x 10.30mm) | Surface Mount |
|
4SVPB100MCAP ALUM POLY 100UF 20% 4V SMD |
1,169 |
|
Datasheet |
OS-CON™, SVPB | Tape & Reel (TR) | Last Time Buy | Polymer | 100 µF | ±20% | 4 V | 40mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 83.5 mA @ 120 Hz | 1.67 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.197" (5.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
A720V477M002APE003CAP ALUM POLY 470UF 20% 2V SMD |
1,120 |
|
Datasheet |
AO-Cap A720 | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 2 V | 3mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 11.69 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.083" (2.10mm) | - | Surface Mount |
|
PCJ1A681MCL1GSCAP ALUM POLY 680UF 20% 10V SMD |
900 |
|
Datasheet |
PCJ | Tape & Reel (TR) | Active | Polymer | 680 µF | ±20% | 10 V | 13mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 4.82 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.394" (10.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
PLG1C471MDO1CAP ALUM POLY 470UF 20% 16V TH |
893 |
|
Datasheet |
PLG | Bulk | Active | Polymer | 470 µF | ±20% | 16 V | 11mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.4 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | - | Through Hole |
|
|
PLG1A821MDO1TDCAP ALUM POLY 820UF 20% 10V TH |
2,980 |
|
Datasheet |
PLG | Cut Tape (CT) | Active | Polymer | 820 µF | ±20% | 10 V | 10mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.8 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | - | Through Hole |
|
63SXE18MCAP ALUM POLY 18UF 20% 63V TH |
181 |
|
Datasheet |
OS-CON™, SXE | Bulk | Active | Polymer | 18 µF | ±20% | 63 V | 60mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 17 mA @ 120 Hz | 340 mA @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | - | Through Hole |
-Series-(THT-Tape-And-Box)-Photo-G12.jpg)
|
EEH-AZSH181UBCAP ALUM HYBRID 180UF 20% 50V TH |
454 |
|
Datasheet |
ZSU-A | Cut Tape (CT) | Active | Hybrid | 180 µF | ±20% | 50 V | 17mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 640 mA @ 120 Hz | 3.2 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | - | Through Hole |
|
|
PLG0G182MDO1CAP ALUM POLY 1800UF 20% 4V TH |
306 |
|
Datasheet |
PLG | Bulk | Active | Polymer | 1800 µF | ±20% | 4 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 6.5 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | - | Through Hole |
|
35SVPT82MCAP ALUM POLY 82UF 20% 35V SMD |
117 |
|
Datasheet |
OS-CON™, SVPT | Tape & Reel (TR) | Active | Polymer | 82 µF | ±20% | 35 V | 20mOhm | 20000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 200 mA @ 120 Hz | 4 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
A700X187M006ATE010CAP ALUM POLY 180UF 20% 6.3V SMD |
5,615 |
|
Datasheet |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 180 µF | ±20% | 6.3 V | 10mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 4.7 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|

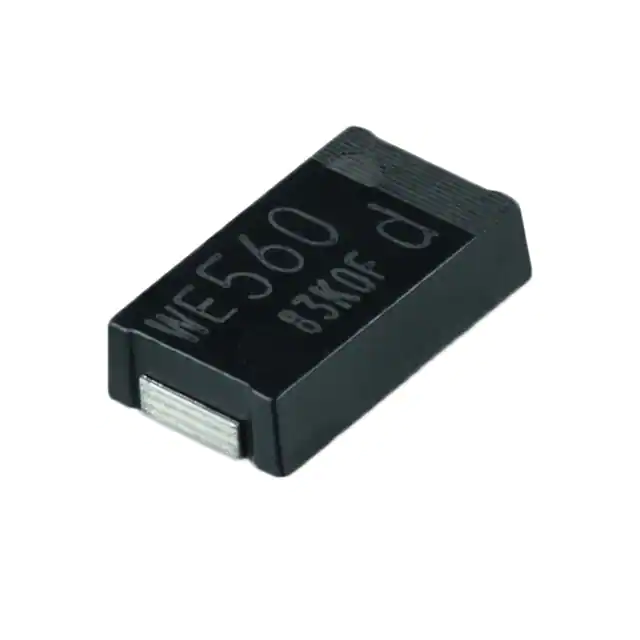

875046219002CAP ALUM POLY 470UF 20% 2V SMD |
2,867 |
|
Datasheet |
WCAP-PHSE | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 2 V | 3mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 10.2 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
EEH-ZA1E151VCAP ALUMHYB 150UF 20% 25V SMD |
2,380 |
|
Datasheet |
ZA, Anti-Vibration | Tape & Reel (TR) | Active | Hybrid | 150 µF | ±20% | 25 V | 27mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 345 mA @ 100 Hz | 2.3 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.425" (10.80mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
EEH-ZA1J470VCAP ALUM HYBRID 47UF 20% 63V SMD |
738 |
|
Datasheet |
ZA, Anti-Vibration | Tape & Reel (TR) | Active | Hybrid | 47 µF | ±20% | 63 V | 40mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 255 mA @ 100 Hz | 1.7 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.425" (10.80mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
PCF1D121MCL1GSCAP ALUM POLY 120UF 20% 20V SMD |
441 |
|
Datasheet |
PCF | Tape & Reel (TR) | Active | Polymer | 120 µF | ±20% | 20 V | 35mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 2.8 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.394" (10.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
EEH-AZSJ121UBCAP ALUM HYBRID 120UF 20% 63V TH |
339 |
|
Datasheet |
ZSU-A | Cut Tape (CT) | Active | Hybrid | 120 µF | ±20% | 63 V | 19mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 600 mA @ 120 Hz | 3 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | - | Through Hole |
|
16SVF1000MXCAP ALUM POLY 1000UF 20% 16V SMD |
261 |
|
Datasheet |
OS-CON™, SVF | Tape & Reel (TR) | Active | Polymer | 1000 µF | ±20% | 16 V | 16mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 215 mA @ 120 Hz | 4.3 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
PLG1A821MDO1CAP ALUM POLY 820UF 20% 10V TH |
155 |
|
Datasheet |
PLG | Bulk | Active | Polymer | 820 µF | ±20% | 10 V | 10mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.8 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | - | Through Hole |
|
|
A720V477M2R5APE4R5CAP ALUM POLY 470UF 20% 2.5V SMD |
2,967 |
|
Datasheet |
AO-Cap A720 | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 2.5 V | 4.5mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 9.54 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.083" (2.10mm) | - | Surface Mount |
