Aluminum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEF-SX0J680RCAP ALUM POLY 68UF 20% 6.3V SMD |
7,493 |
|
Datasheet |
SP-Cap SX | Tape & Reel (TR) | Active | Polymer | 68 µF | ±20% | 6.3 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
PCG1A181MCL1GSCAP ALUM POLY 180UF 20% 10V SMD |
1,725 |
|
Datasheet |
PCG | Tape & Reel (TR) | Active | Polymer | 180 µF | ±20% | 10 V | 25mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 2.6 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
10SVQP56MCAP ALUM POLY 56UF 20% 10V SMD |
1,470 |
|
Datasheet |
OS-CON™, SVQP | Tape & Reel (TR) | Active | Polymer | 56 µF | ±20% | 10 V | 45mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 85 mA @ 120 Hz | 1.7 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
870235175008CAP ALUM POLY 1500UF 20% 6.3V TH |
402 |
|
Datasheet |
WCAP-PT5H | Cut Tape (CT) | Active | Polymer | 1500 µF | ±20% | 6.3 V | 7mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 332 mA @ 120 Hz | 6.64 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
|
4SEP100MCAP ALUM POLY 100UF 20% 4V TH |
317 |
|
Datasheet |
OS-CON™, SEP | Bulk | Active | Polymer | 100 µF | ±20% | 4 V | 40mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 90.5 mA @ 120 Hz | 1.81 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | - | Through Hole |
-Series-(THT-Tape-And-Box)-Photo-Taped-Size-F.jpg)
|
EEH-AZKE331UBCAP ALUM HYBRID 330UF 20% 25V TH |
192 |
|
Datasheet |
ZKU | Cut Tape (CT) | Active | Hybrid | 330 µF | ±20% | 25 V | 27mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 300 mA @ 100 Hz | 2 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | - | Through Hole |
|

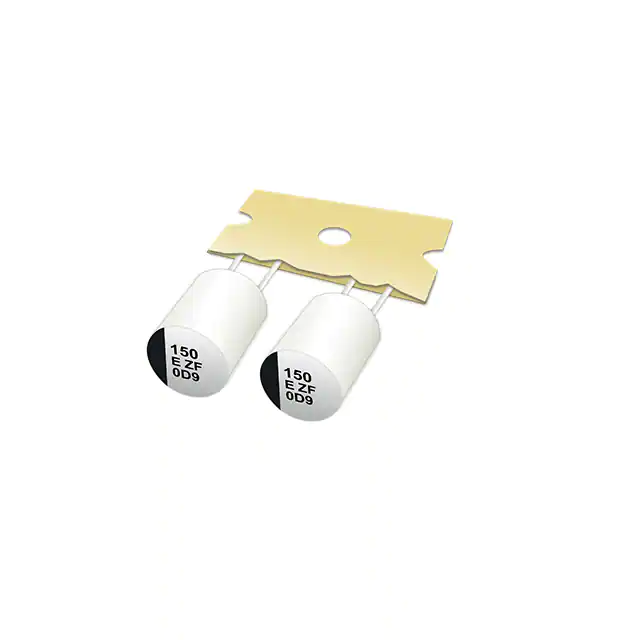

EEH-AZF1V101BCAP ALUM HYBRID 100UF 20% 35V TH |
2,431 |
|
Datasheet |
ZF | Cut Tape (CT) | Active | Hybrid | 100 µF | ±20% | 35 V | 30mOhm | 1000 Hrs @ 150°C | -55°C ~ 150°C | AEC-Q200 | Automotive | - | 115.5 mA @ 100 Hz | 770 mA @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | - | Through Hole |
|
|
EEH-AZF1J330BCAP ALUM HYBRID 33UF 20% 63V TH |
2,031 |
|
Datasheet |
ZF | Cut Tape (CT) | Active | Hybrid | 33 µF | ±20% | 63 V | 40mOhm | 1000 Hrs @ 150°C | -55°C ~ 150°C | AEC-Q200 | Automotive | - | 65 mA @ 100 Hz | 650 mA @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | - | Through Hole |
|
HHXE350ARA271MJA0GCAP ALUMHYB 270UF 20% 35V SMD |
1,687 |
|
Datasheet |
HXE | Tape & Reel (TR) | Active | Hybrid | 270 µF | ±20% | 35 V | 20mOhm | 4000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 429 mA @ 120 Hz | 3.3 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
PCF1D470MCL1GSCAP ALUM POLY 47UF 20% 20V SMD |
1,420 |
|
Datasheet |
PCF | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 20 V | 45mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 2 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
RNU1C681MDN1PHCAP ALUM POLY 680UF 20% 16V TH |
862 |
|
Datasheet |
FPCAP, RNU | Cut Tape (CT) | Active | Polymer | 680 µF | ±20% | 16 V | 10mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 610 mA @ 120 Hz | 6.1 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
|
APXJ6R3ARA681MH70GCAP ALUM POLY 680UF 20% 6.3V SMD |
376 |
|
Datasheet |
NPCAP™-PXJ | Tape & Reel (TR) | Active | Polymer | 680 µF | ±20% | 6.3 V | 10mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 225 mA @ 120 Hz | 4.5 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
16SEPG560MCAP ALUM POLY 560UF 20% 16V TH |
370 |
|
Datasheet |
OS-CON™, SEPG | Bulk | Active | Polymer | 560 µF | ±20% | 16 V | 8mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 305 mA @ 120 Hz | 6.1 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
APXH200ARA470MH70GCAP ALUM POLY 47UF 20% 20V SMD |
6,213 |
|
Datasheet |
NPCAP™-PXH | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 20 V | 45mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 2 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.264" (6.70mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
ECASD40J157M015K00CAP ALUM POLY 150UF 20% 6.3V SMD |
5,213 |
|
Datasheet |
ECAS | Tape & Reel (TR) | Last Time Buy | Polymer | 150 µF | ±20% | 6.3 V | 15mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 2 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|

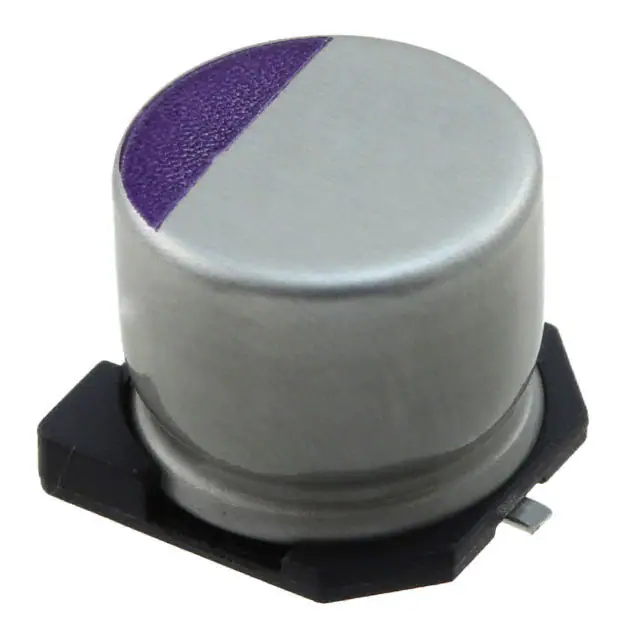

10SVPS150MXCAP ALUM POLY 150UF 20% 10V SMD |
2,040 |
|
Datasheet |
OS-CON™, SVPS | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 10 V | 30mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 138 mA @ 120 Hz | 2.76 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|

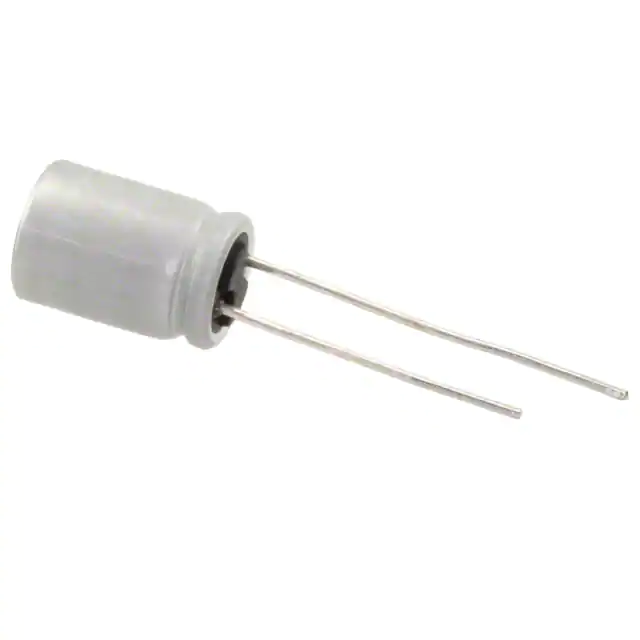

PLS1A271MDO1TDCAP ALUM POLY 270UF 20% 10V TH |
1,979 |
|
Datasheet |
PLS | Cut Tape (CT) | Active | Polymer | 270 µF | ±20% | 10 V | 8mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.9 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | - | Through Hole |
|

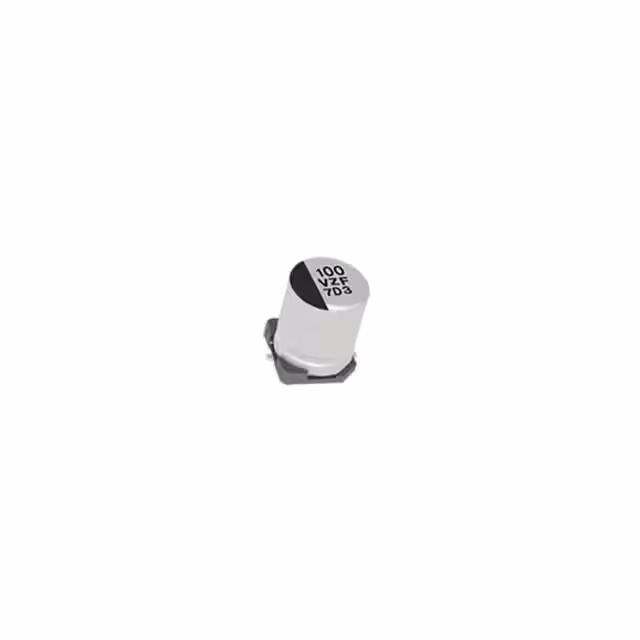

EEH-ZF1H560PCAP ALUM HYBRID 56UF 20% 50V SMD |
1,891 |
|
Datasheet |
ZF | Tape & Reel (TR) | Active | Hybrid | 56 µF | ±20% | 50 V | 35mOhm | 1000 Hrs @ 150°C | -55°C ~ 150°C | AEC-Q200 | Automotive | - | 105 mA @ 100 Hz | 700 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
6SVPS470MCAP ALUM POLY 470UF 20% 6.3V SMD |
1,483 |
|
Datasheet |
OS-CON™, SVPS | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 6.3 V | 20mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 206.5 mA @ 120 Hz | 4.13 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
6SVPS220MCAP ALUM POLY 220UF 20% 6.3V SMD |
546 |
|
Datasheet |
OS-CON™, SVPS | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 6.3 V | 22mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 161 mA @ 120 Hz | 3.22 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
