Aluminum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
875115352003CAP ALUM POLY 270UF 20% 16V SMD |
369 |
|
Datasheet |
WCAP-PSHP | Tape & Reel (TR) | Active | Polymer | 270 µF | ±20% | 16 V | 11mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 240 mA @ 120 Hz | 4.8 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.343" (8.70mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
A765KN397M1CLAE016CAP ALUM POLY 390UF 20% 16V SMD |
2,435 |
|
Datasheet |
A765 | Tape & Reel (TR) | Active | Polymer | 390 µF | ±20% | 16 V | 16mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 194.5 mA @ 120 Hz | 3.89 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.394" (10.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
10SVPC330MCAP ALUM POLY 330UF 20% 10V SMD |
2,178 |
|
Datasheet |
OS-CON™, SVPC | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 10 V | 19mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 173 mA @ 120 Hz | 3.46 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
35PZS270M10X9CAP ALUM HYBRID 270UF 20% 35V TH |
2,038 |
|
Datasheet |
PZS | Bulk | Active | Hybrid | 270 µF | ±20% | 35 V | 20mOhm | 3000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 300 mA @ 100 Hz | 3 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | - | Through Hole |
|
RNS1A471MDN1PHCAP ALUM POLY 470UF 20% 10V TH |
1,437 |
|
Datasheet |
FPCAP, RNS | Cut Tape (CT) | Active | Polymer | 470 µF | ±20% | 10 V | 10mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 550 mA @ 120 Hz | 5.5 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
|
RNS1D470MDN1KXCAP ALUM POLY 47UF 20% 20V TH |
862 |
|
Datasheet |
FPCAP, RNS | Cut Tape (CT) | Active | Polymer | 47 µF | ±20% | 20 V | 28mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 340 mA @ 120 Hz | 3.4 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
|
875115360004CAP ALUM POLY 330UF 20% 16V SMD |
857 |
|
Datasheet |
WCAP-PSHP | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 16 V | 20mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 185 mA @ 120 Hz | 3.7 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.343" (8.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
RNS1A221MDN1PHCAP ALUM POLY 220UF 20% 10V TH |
852 |
|
Datasheet |
FPCAP, RNS | Cut Tape (CT) | Active | Polymer | 220 µF | ±20% | 10 V | 10mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 550 mA @ 120 Hz | 5.5 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
|
PLF1C331MDO1CAP ALUM POLY 330UF 20% 16V TH |
525 |
|
Datasheet |
PLF | Bulk | Active | Polymer | 330 µF | ±20% | 16 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 6.1 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
|
875115160009CAP ALUM POLY 1000UF 20% 6.3V |
408 |
|
Datasheet |
WCAP-PSHP | Tape & Reel (TR) | Active | Polymer | 1000 µF | ±20% | 6.3 V | 20mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 185 mA @ 120 Hz | 3.7 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.343" (8.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
875115552001CAP ALUM POLY 68UF 20% 25V SMD |
303 |
|
Datasheet |
WCAP-PSHP | Tape & Reel (TR) | Active | Polymer | 68 µF | ±20% | 25 V | 20mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 175 mA @ 120 Hz | 3.5 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.343" (8.70mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
APXN160ARA331MJ80GCAP ALUM POLY 330UF 20% 16V SMD |
293 |
|
Datasheet |
NPCAP™-PXN | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 16 V | 25mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 170 mA @ 120 Hz | 3.4 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
EEH-ZK1E560URCAP ALUM HYBRID 56UF 20% 25V SMD |
179 |
|
Datasheet |
ZKU | Tape & Reel (TR) | Active | Hybrid | 56 µF | ±20% | 25 V | 80mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 127.5 mA @ 100 Hz | 850 mA @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.240" (6.10mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
RHA0E102MCN1GSCAP ALUM POLY 1000UF 20% 2.5V |
3,029 |
|
Datasheet |
FPCAP, RHA | Tape & Reel (TR) | Active | Polymer | 1000 µF | ±20% | 2.5 V | 8mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 500 mA @ 120 Hz | 5 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.303" (7.70mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
PLS0E821MCO8TDCAP ALUM POLY 820UF 20% 2.5V TH |
1,241 |
|
Datasheet |
PLS | Cut Tape (CT) | Active | Polymer | 820 µF | ±20% | 2.5 V | 8mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.8 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.354" (9.00mm) | - | Through Hole |
|

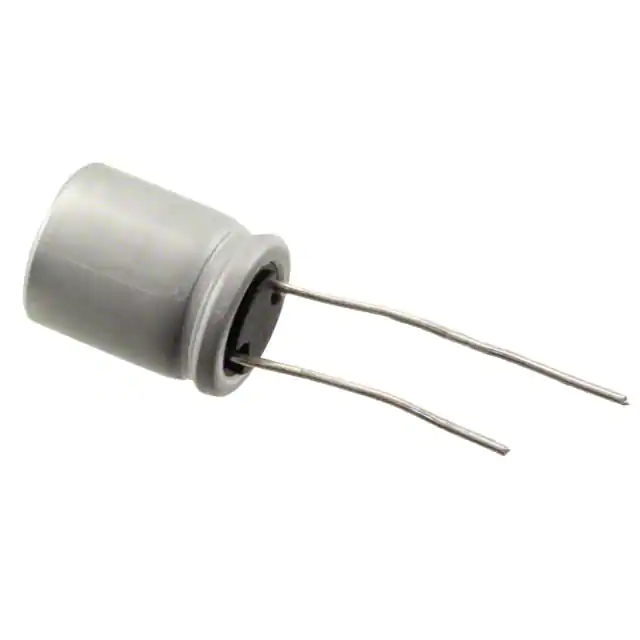

PLF1A471MDO1TDCAP ALUM POLY 470UF 20% 10V TH |
1,000 |
|
Datasheet |
PLF | Cut Tape (CT) | Active | Polymer | 470 µF | ±20% | 10 V | 7mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.7 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
|
PLF1C471MDO1TDCAP ALUM POLY 470UF 20% 16V TH |
682 |
|
Datasheet |
PLF | Cut Tape (CT) | Active | Polymer | 470 µF | ±20% | 16 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 6.1 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
A759KS336M1KAAE055CAP ALUM POLY 33UF 20% 80V TH |
2,033 |
|
Datasheet |
A759 | Bulk | Active | Polymer | 33 µF | ±20% | 80 V | 55mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 91.95 mA @ 120 Hz | 1.839 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
10SVP150MCAP ALUM POLY 150UF 20% 10V SMD |
1,887 |
|
Datasheet |
OS-CON™, SVP | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 10 V | 30mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 151 mA @ 120 Hz | 3.02 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|

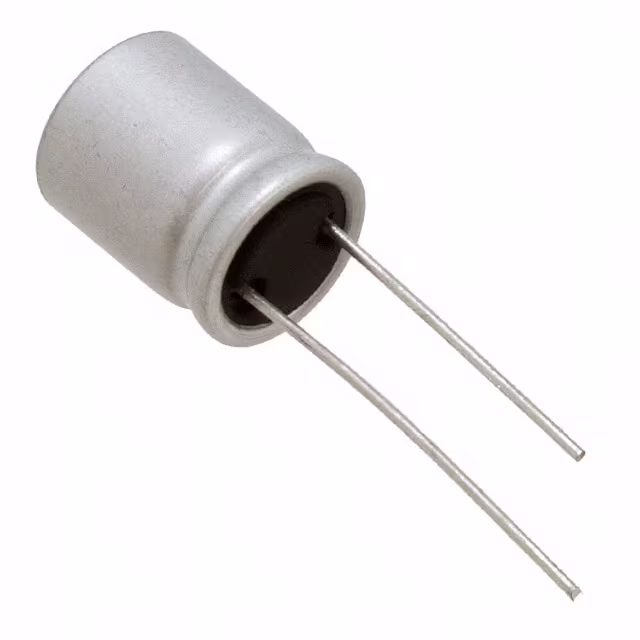

RR71C271MDN1PHCAP ALUM POLY 270UF 20% 16V TH |
8,480 |
|
Datasheet |
FPCAP, RR7 | Cut Tape (CT) | Active | Polymer | 270 µF | ±20% | 16 V | 7mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 610 mA @ 120 Hz | 6.1 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
