Aluminum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2R5SVPE390MXCAP ALUM POLY 330UF 20% 2.5V SMD |
0 |
|
Datasheet |
OS-CON™, SVPE | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 2.5 V | 15mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 157.5 mA @ 120 Hz | 3.15 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.236" (6.00mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
APXH100ARA560MF60GCAP ALUM POLY 56UF 20% 10V SMD |
0 |
|
Datasheet |
NPCAP™-PXH | Tape & Reel (TR) | Active | Polymer | 56 µF | ±20% | 10 V | 45mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 2.25 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.224" (5.70mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
PLS0E331MCO8CAP ALUM POLY 330UF 20% 2.5V TH |
0 |
|
Datasheet |
PLS | Bulk | Active | Polymer | 330 µF | ±20% | 2.5 V | 8mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.8 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.354" (9.00mm) | - | Through Hole |
|
PCK0E391MCO1GSCAP ALUM POLY 390UF 20% 2.5V SMD |
0 |
|
Datasheet |
PCK | Tape & Reel (TR) | Active | Polymer | 390 µF | ±20% | 2.5 V | 10mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 3.9 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|

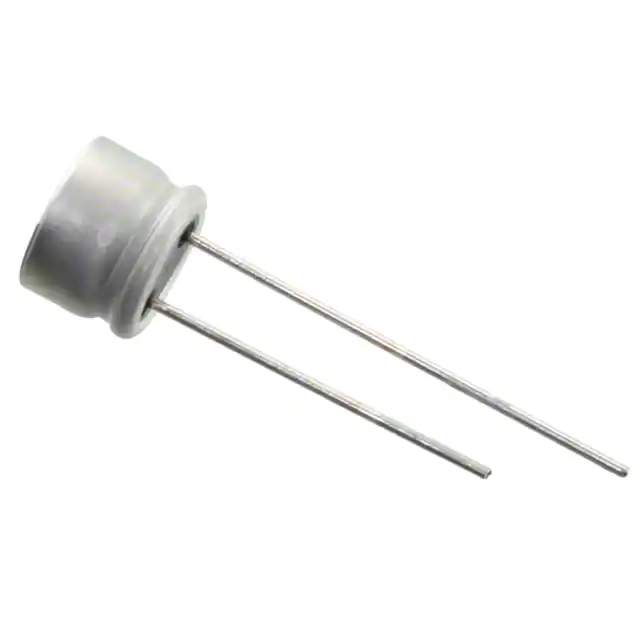

PLS0G561MCL2TDCAP ALUM POLY 560UF 20% 4V TH |
0 |
|
Datasheet |
PLS | Cut Tape (CT) | Active | Polymer | 560 µF | ±20% | 4 V | 15mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.9 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | - | Through Hole |
|
PCF0J471MCL6GSCAP ALUM POLY 470UF 20% 6.3V SMD |
0 |
|
Datasheet |
PCF | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 6.3 V | 18mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 4.3 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
RSHVK271M1GFH0002ECAP ALUMHYB 270UF 20% 35V SMD |
0 |
|
Datasheet |
HVK | Tape & Reel (TR) | Active | Hybrid | 270 µF | ±20% | 35 V | 20mOhm | 6000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 200 mA @ 120 Hz | 2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.409" L x 0.409" W (10.40mm x 10.40mm) | Surface Mount |
|
10SVPD56MCAP ALUM POLY 56UF 20% 10V SMD |
0 |
|
Datasheet |
OS-CON™, SVPD | Tape & Reel (TR) | Active | Polymer | 56 µF | ±20% | 10 V | 45mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 26.9 mA @ 120 Hz | 538 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
PCX1H120MCL1GSCAP ALUM POLY 12UF 20% 50V SMD |
0 |
|
Datasheet |
PCX | Tape & Reel (TR) | Active | Polymer | 12 µF | ±20% | 50 V | 65mOhm | 1500 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | General Purpose | - | - | 1.1 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.319" (8.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
PCJ0G331MCL1GSCAP ALUM POLY 330UF 20% 4V SMD |
0 |
|
Datasheet |
PCJ | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 4 V | 15mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 3.3 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
|
PCF1C181MCL1GSCAP ALUM POLY 180UF 20% 16V SMD |
0 |
|
Datasheet |
PCF | Tape & Reel (TR) | Active | Polymer | 180 µF | ±20% | 16 V | 25mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 3.6 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|

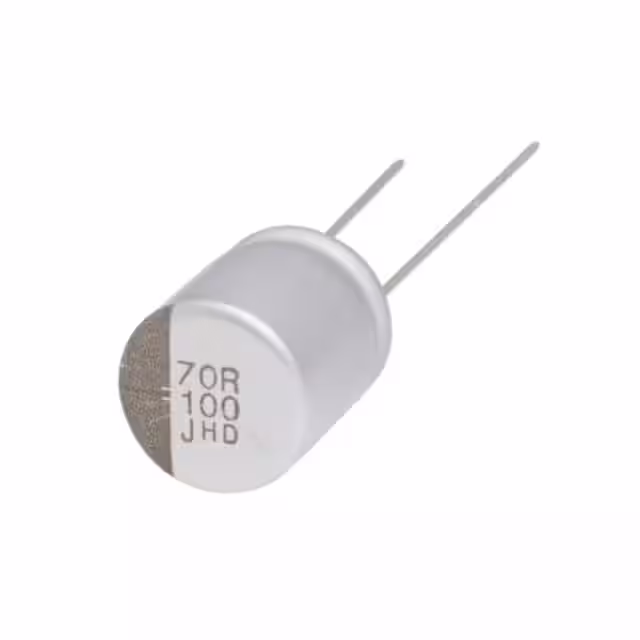

HHSD500ELL121MJC5SCAP ALUM HYBRID 120UF 20% 50V TH |
13 |
|
Datasheet |
HSD | Bulk | Active | Hybrid | 120 µF | ±20% | 50 V | 19mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 280 mA @ 120 Hz | 2.8 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
|
PLG0J821MCO1CAP ALUM POLY 820UF 20% 6.3V TH |
1 |
|
Datasheet |
PLG | Bulk | Active | Polymer | 820 µF | ±20% | 6.3 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.7 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole |
|
|
PCJ0G561MCL1GSCAP ALUM POLY 560UF 20% 4V SMD |
0 |
|
Datasheet |
PCJ | Tape & Reel (TR) | Active | Polymer | 560 µF | ±20% | 4 V | 14mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 4 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
PCJ0G471MCL1GSCAP ALUM POLY 470UF 20% 4V SMD |
0 |
|
Datasheet |
PCJ | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 4 V | 14mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 3.95 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
EEF-SX0G181ERCAP ALUM POLY 180UF 20% 4V SMD |
0 |
|
Datasheet |
SP-Cap SX | Tape & Reel (TR) | Active | Polymer | 180 µF | ±20% | 4 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 6.3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
A765MU277M1ELAE050CAP ALUM POLY 270UF 20% 25V SMD |
3 |
|
Datasheet |
A765 | Tape & Reel (TR) | Active | Polymer | 270 µF | ±20% | 25 V | 50mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 190 mA @ 120 Hz | 3.8 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.508" (12.90mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
6SEP470M+TSSCAP ALUM POLY 470UF 20% 6.3V TH |
0 |
|
Datasheet |
OS-CON™, SEP | Cut Tape (CT) | Active | Polymer | 470 µF | ±20% | 6.3 V | 15mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 210.5 mA @ 120 Hz | 4.21 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | - | Through Hole |
|
25PEV56M6.3X6.1CAP ALUM HYBRID 56UF 20% 25V SMD |
0 |
|
Datasheet |
PEV | Tape & Reel (TR) | Active | Hybrid | 56 µF | ±20% | 25 V | 50mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | - | - | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
RPA1A331MCN1GSCAP ALUM POLY 330UF 20% 10V SMD |
0 |
|
Datasheet |
FPCAP, RPA | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 10 V | 20mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 360 mA @ 120 Hz | 3.6 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
