Aluminum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A768KE336M1HLAE042CAP ALUM POLY 33UF 20% 50V SMD |
1,692 |
|
Datasheet |
A768 | Tape & Reel (TR) | Active | Polymer | 33 µF | ±20% | 50 V | 42mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 65 mA @ 120 Hz | 1.3 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
HHXC250ARA330ME61GCAP ALUM HYBRID 33UF 20% 25V SMD |
1,967 |
|
Datasheet |
HXC | Tape & Reel (TR) | Active | Hybrid | 33 µF | ±20% | 25 V | 80mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 550 mA @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.240" (6.10mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
|
A768KE226M1JLAE054CAP ALUM POLY 22UF 20% 63V SMD |
1,191 |
|
Datasheet |
A768 | Tape & Reel (TR) | Active | Polymer | 22 µF | ±20% | 63 V | 54mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 58.75 mA @ 120 Hz | 1.175 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
RNU0J152MDN1PHCAP ALUM POLY 1500UF 20% 6.3V TH |
984 |
|
Datasheet |
FPCAP, RNU | Cut Tape (CT) | Active | Polymer | 1500 µF | ±20% | 6.3 V | 7mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 610 mA @ 120 Hz | 6.1 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
|

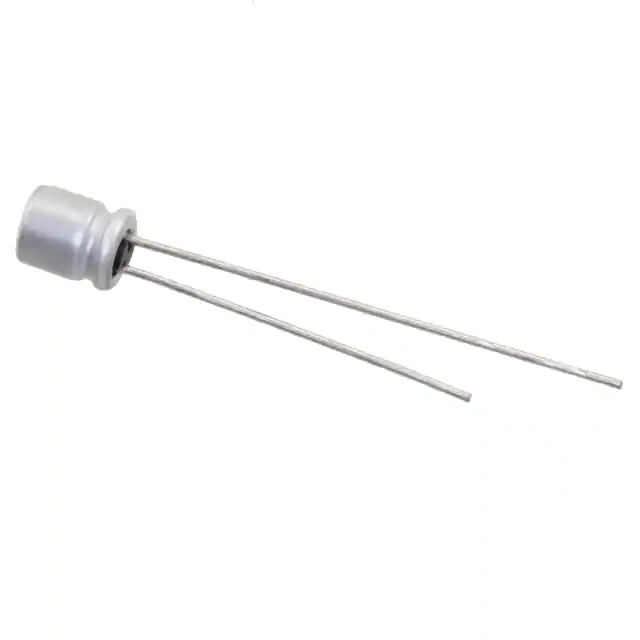

RNU1A100MDS1CAP ALUM POLY 10UF 20% 10V TH |
29 |
|
Datasheet |
FPCAP, RNU | Bulk | Active | Polymer | 10 µF | ±20% | 10 V | 220mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 70 mA @ 120 Hz | 700 mA @ 100 kHz | - | 0.059" (1.50mm) | 0.157" Dia (4.00mm) | 0.236" (6.00mm) | - | Through Hole |
|
|
HHXC500ARA100MF61GCAP ALUM HYBRID 10UF 20% 50V SMD |
1,789 |
|
Datasheet |
HXC | Tape & Reel (TR) | Active | Hybrid | 10 µF | ±20% | 50 V | 80mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 750 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
APXG250ARA470MF61GCAP ALUM POLY 47UF 20% 25V SMD |
291 |
|
Datasheet |
NPCAP™-PXG | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 25 V | 30mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.8 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
25SVP10MCAP ALUM POLY 10UF 20% 25V SMD |
622 |
|
Datasheet |
OS-CON™, SVP | Tape & Reel (TR) | Active | Polymer | 10 µF | ±20% | 25 V | 120mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
HHXJ160ARA221MF80GCAP ALUMHYB 220UF 20% 16V SMD |
544 |
|
Datasheet |
HXJ | Tape & Reel (TR) | Active | Hybrid | 220 µF | ±20% | 16 V | 27mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 270 mA @ 120 Hz | 1.8 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
|
APXT160ARA271MF80GCAP ALUM POLY 270UF 20% 16V SMD |
850 |
|
Datasheet |
NPCAP™-PXT | Tape & Reel (TR) | Active | Polymer | 270 µF | ±20% | 16 V | 22mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 142.5 mA @ 120 Hz | 2.85 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
16SEPC100MCAP ALUM POLY 100UF 20% 16V TH |
64 |
|
Datasheet |
OS-CON™, SEPC | Bulk | Active | Polymer | 100 µF | ±20% | 16 V | 24mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 124.5 mA @ 120 Hz | 2.49 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | - | Through Hole |
|
|
HHXC500ARA330MF80GCAP ALUM HYBRID 33UF 20% 50V SMD |
155 |
|
Datasheet |
HXC | Tape & Reel (TR) | Active | Hybrid | 33 µF | ±20% | 50 V | 40mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 1.1 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
|
HHXJ350ARA121MF80GCAP ALUMHYB 120UF 20% 35V SMD |
43 |
|
Datasheet |
HXJ | Tape & Reel (TR) | Active | Hybrid | 120 µF | ±20% | 35 V | 35mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 255 mA @ 120 Hz | 1.7 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
|
APSG160ELL331MF08JCAP ALUM POLY 330UF 20% 16V TH |
907 |
|
Datasheet |
NPCAP™-PSG | Bulk | Active | Polymer | 330 µF | ±20% | 16 V | 10mOhm | 20000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 508 mA @ 120 Hz | 5.08 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.354" (9.00mm) | - | Through Hole |
|
A769KE107M1VLAS031CAP ALUM POLY 100UF 20% 35V SMD |
1,831 |
|
Datasheet |
A769 | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 35 V | 31mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 80.5 mA @ 120 Hz | 1.61 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
APXG200ARA151MF80GCAP ALUM POLY 150UF 20% 20V SMD |
498 |
|
Datasheet |
NPCAP™-PXG | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 20 V | 25mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.2 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
RFS0J470MCN1GSCAP ALUM POLY 47UF 20% 6.3V SMD |
1,650 |
|
Datasheet |
FPCAP, RFS | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 6.3 V | 30mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 200 mA @ 120 Hz | 2 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.224" (5.70mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
A759BQ226M1HAAE075CAP ALUM POLY 22UF 20% 50V TH |
60 |
|
Datasheet |
A759 | Bulk | Active | Polymer | 22 µF | ±20% | 50 V | 75mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 28 mA @ 120 Hz | 560 mA @ 100 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.472" (12.00mm) | - | Through Hole |
|
|
HHXC350ARA151MHA0GCAP ALUMHYB 150UF 20% 35V SMD |
865 |
|
Datasheet |
HXC | Tape & Reel (TR) | Active | Hybrid | 150 µF | ±20% | 35 V | 27mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 1.6 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
APXN160ARA560ME61GCAP ALUM POLY 56UF 20% 16V SMD |
459 |
|
Datasheet |
NPCAP™-PXN | Tape & Reel (TR) | Active | Polymer | 56 µF | ±20% | 16 V | 35mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 100 mA @ 120 Hz | 2 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.240" (6.10mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
