Aluminum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
10SVPS330MCAP ALUM POLY 330UF 20% 10V SMD |
413 |
|
Datasheet |
OS-CON™, SVPS | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 10 V | 24mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 188.5 mA @ 120 Hz | 3.77 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
10SVPS150MCAP ALUM POLY 150UF 20% 10V SMD |
269 |
|
Datasheet |
OS-CON™, SVPS | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 10 V | 30mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 138 mA @ 120 Hz | 2.76 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
GYC1E331MCW1GSCAP ALUMHYB 330UF 20% 25V SMD |
4,322 |
|
Datasheet |
GYC | Tape & Reel (TR) | Active | Hybrid | 330 µF | ±20% | 25 V | 20mOhm | 4000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 495 mA @ 120 Hz | 3.3 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.433" (11.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
25PLV150M8X10.5CAP ALUMHYB 150UF 20% 25V SMD |
2,704 |
|
Datasheet |
PLV | Tape & Reel (TR) | Active | Hybrid | 150 µF | ±20% | 25 V | 25mOhm | 1000 Hrs @ 150°C | -55°C ~ 150°C | AEC-Q200 | Automotive | - | 70 mA @ 100 Hz | 1.4 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
2R5SVPE270MCAP ALUM POLY 270UF 20% 2.5V SMD |
2,662 |
|
Datasheet |
OS-CON™, SVPE | Tape & Reel (TR) | Active | Polymer | 270 µF | ±20% | 2.5 V | 10mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 193 mA @ 120 Hz | 3.86 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.236" (6.00mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
|
35PLV100M8X10.5CAP ALUMHYB 100UF 20% 35V SMD |
1,750 |
|
Datasheet |
PLV | Tape & Reel (TR) | Active | Hybrid | 100 µF | ±20% | 35 V | 25mOhm | 1000 Hrs @ 150°C | -55°C ~ 150°C | AEC-Q200 | Automotive | - | 70 mA @ 100 Hz | 1.4 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
25SVF56MCAP ALUM POLY 56UF 20% 25V SMD |
1,334 |
|
Datasheet |
OS-CON™, SVF | Tape & Reel (TR) | Active | Polymer | 56 µF | ±20% | 25 V | 30mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 44 mA @ 120 Hz | 880 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
16SVPS100MCAP ALUM POLY 100UF 20% 16V SMD |
517 |
|
Datasheet |
OS-CON™, SVPS | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 16 V | 35mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 133.5 mA @ 120 Hz | 2.67 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
EEF-SR0G121RCAP ALUM POLY 120UF 20% 4V SMD |
6,730 |
|
Datasheet |
SP-Cap, SR | Tape & Reel (TR) | Active | Polymer | 120 µF | ±20% | 4 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 6.3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.039" (1.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
GYC1J560MCW1GSCAP ALUM HYBRID 56UF 20% 63V SMD |
4,500 |
|
Datasheet |
GYC | Tape & Reel (TR) | Active | Hybrid | 56 µF | ±20% | 63 V | 30mOhm | 4000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 345 mA @ 120 Hz | 2.3 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.433" (11.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
EEH-ZA1J330VCAP ALUM HYBRID 33UF 20% 63V SMD |
1,695 |
|
Datasheet |
ZA, Anti-Vibration | Tape & Reel (TR) | Active | Hybrid | 33 µF | ±20% | 63 V | 40mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 255 mA @ 100 Hz | 1.7 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
-Photo-Taped-Size-G.jpg)
|
EEH-AZT1J820BCAP ALUM HYBRID 82UF 20% 63V TH |
965 |
|
Datasheet |
ZT | Cut Tape (CT) | Active | Hybrid | 82 µF | ±20% | 63 V | 25mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 420 mA @ 100 Hz | 2.8 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | - | Through Hole |
|

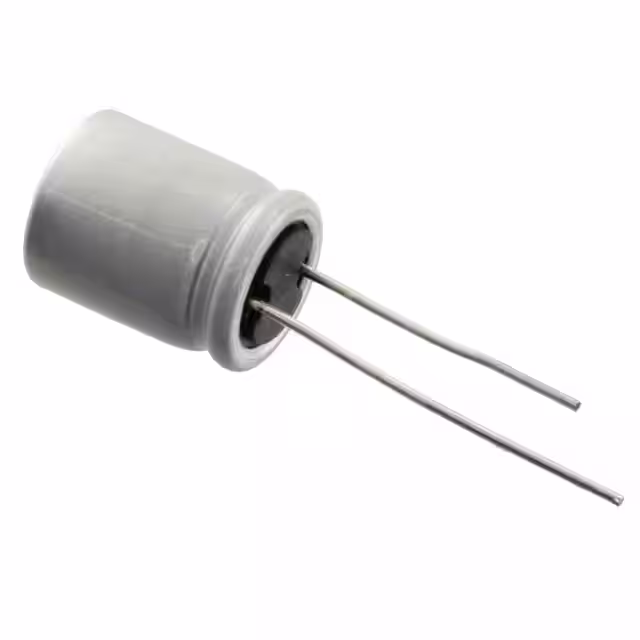

PLF1A681MDO1TDCAP ALUM POLY 680UF 20% 10V TH |
1,113 |
|
Datasheet |
PLF | Cut Tape (CT) | Active | Polymer | 680 µF | ±20% | 10 V | 7mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 6.1 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
PLF0J681MDO1CAP ALUM POLY 680UF 20% 6.3V TH |
711 |
|
Datasheet |
PLF | Bulk | Active | Polymer | 680 µF | ±20% | 6.3 V | 6mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 6.3 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
2SEPC820MY+TSSCAP ALUM POLY 820UF 20% 2.5V TH |
409 |
|
Datasheet |
OS-CON™, SEPC | Cut Tape (CT) | Active | Polymer | 820 µF | ±20% | 2.5 V | 5mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 360 mA @ 120 Hz | 7.2 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole |
|
|
2SEPC820MYCAP ALUM POLY 820UF 20% 2.5V TH |
207 |
|
Datasheet |
OS-CON™, SEPC | Bulk | Active | Polymer | 820 µF | ±20% | 2.5 V | 5mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 360 mA @ 120 Hz | 7.2 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole |
|
|
4SEPC560MW+TSSCAP ALUM POLY 560UF 20% 4V TH |
2,779 |
|
Datasheet |
OS-CON™, SEPC | Cut Tape (CT) | Active | Polymer | 560 µF | ±20% | 4 V | 7mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 280 mA @ 120 Hz | 5.6 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.354" (9.00mm) | - | Through Hole |
|

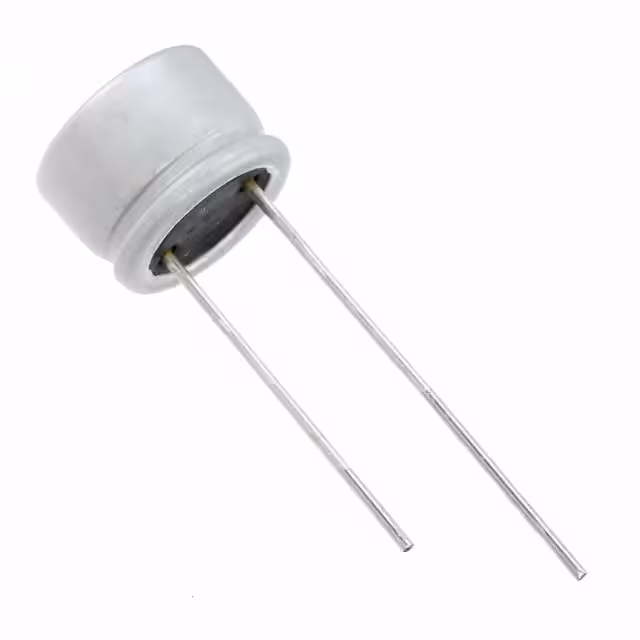

PLF1D121MCL2TDCAP ALUM POLY 120UF 20% 20V TH |
1,887 |
|
Datasheet |
PLF | Cut Tape (CT) | Active | Polymer | 120 µF | ±20% | 20 V | 35mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.8 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.394" (10.00mm) | - | Through Hole |
|
|
EEH-ZA1V270VCAP ALUM HYBRID 27UF 20% 35V SMD |
1,443 |
|
Datasheet |
ZA, Anti-Vibration | Tape & Reel (TR) | Active | Hybrid | 27 µF | ±20% | 35 V | 60mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 130 mA @ 100 Hz | 1.3 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.217" (5.50mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
HHXD630ARA820MJA0GCAP ALUM HYBRID 82UF 20% 63V SMD |
1,092 |
|
Datasheet |
HXD | Tape & Reel (TR) | Active | Hybrid | 82 µF | ±20% | 63 V | 30mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 180 mA @ 120 Hz | 1.8 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
