Aluminum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
16SVF82MCAP ALUM POLY 82UF 20% 16V SMD |
1,486 |
|
Datasheet |
OS-CON™, SVF | Tape & Reel (TR) | Active | Polymer | 82 µF | ±20% | 16 V | 27mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 47 mA @ 120 Hz | 940 mA @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.236" (6.00mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
25SEP33M+TSSCAP ALUM POLY 33UF 20% 25V TH |
865 |
|
Datasheet |
OS-CON™, SEP | Cut Tape (CT) | Active | Polymer | 33 µF | ±20% | 25 V | 30mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 149 mA @ 120 Hz | 2.98 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | - | Through Hole |
|
PCJ1C271MCL1GSCAP ALUM POLY 270UF 20% 16V SMD |
352 |
|
Datasheet |
PCJ | Tape & Reel (TR) | Active | Polymer | 270 µF | ±20% | 16 V | 16mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 4.07 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
PCF1C330MCL1GSCAP ALUM POLY 33UF 20% 16V SMD |
1,610 |
|
Datasheet |
PCF | Tape & Reel (TR) | Active | Polymer | 33 µF | ±20% | 16 V | 31mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 2.4 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
|
25SVF27MCAP ALUM POLY 27UF 20% 25V SMD |
1,076 |
|
Datasheet |
OS-CON™, SVF | Tape & Reel (TR) | Active | Polymer | 27 µF | ±20% | 25 V | 40mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 38.5 mA @ 120 Hz | 770 mA @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.236" (6.00mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
35PZF150M8X9CAP ALUM HYBRID 150UF 20% 35V TH |
943 |
|
Datasheet |
PZF | Bulk | Active | Hybrid | 150 µF | ±20% | 35 V | 27mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 80 mA @ 120 Hz | 1.6 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.433" (11.00mm) | - | Through Hole |
|
|
50PZF68M8X9CAP ALUM HYBRID 68UF 20% 50V TH |
487 |
|
Datasheet |
PZF | Bulk | Active | Hybrid | 68 µF | ±20% | 50 V | 30mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 62.5 mA @ 120 Hz | 1.25 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.433" (11.00mm) | - | Through Hole |
|
25SVP6R8MCAP ALUM POLY 6.8UF 20% 25V SMD |
1,358 |
|
Datasheet |
OS-CON™, SVP | Tape & Reel (TR) | Active | Polymer | 6.8 µF | ±20% | 25 V | 80mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|

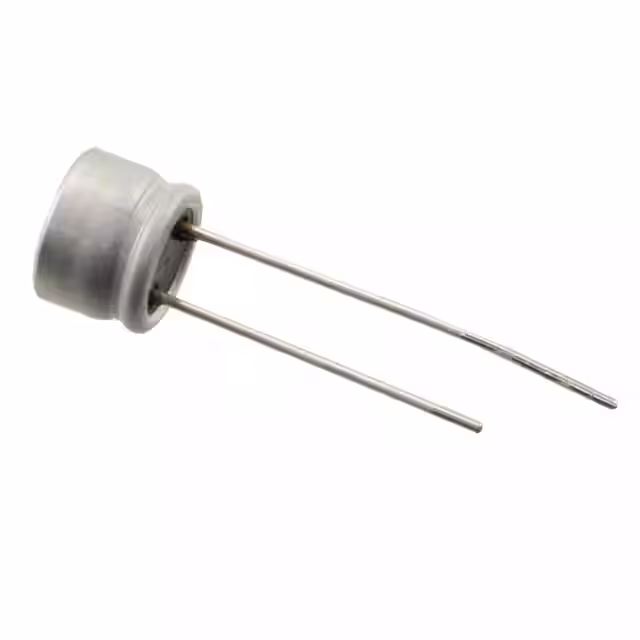

PLF1E100MCL2TPCAP ALUM POLY 10UF 20% 25V TH |
944 |
|
Datasheet |
PLF | Cut Tape (CT) | Active | Polymer | 10 µF | ±20% | 25 V | 60mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 1.5 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | - | Through Hole |
|
PCV1C560MCL1GSCAP ALUM POLY 56UF 20% 16V SMD |
824 |
|
Datasheet |
PCV | Tape & Reel (TR) | Active | Polymer | 56 µF | ±20% | 16 V | 50mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 1 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
875115452001CAP ALUM POLY 68UF 20% 20V SMD |
228 |
|
Datasheet |
WCAP-PSHP | Tape & Reel (TR) | Active | Polymer | 68 µF | ±20% | 20 V | 20mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 175 mA @ 120 Hz | 3.5 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.343" (8.70mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
APXK160ARA101MF611CAP ALUM POLY 100UF 20% 16V SMD |
966 |
|
Datasheet |
NPCAP™-PXK | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 16 V | 24mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.49 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.228" (5.80mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
PLS0J331MDL4TDCAP ALUM POLY 330UF 20% 6.3V TH |
104 |
|
Datasheet |
PLS | Cut Tape (CT) | Active | Polymer | 330 µF | ±20% | 6.3 V | 20mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.413" (10.50mm) | - | Through Hole |
|
EEF-LR0J680RCAP ALUM POLY 68UF 20% 6.3V SMD |
7,394 |
|
Datasheet |
SP-Cap, LR | Tape & Reel (TR) | Active | Polymer | 68 µF | ±20% | 6.3 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 6.3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.039" (1.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
PLG0G182MDO1TDCAP ALUM POLY 1800UF 20% 4V TH |
2,221 |
|
Datasheet |
PLG | Cut Tape (CT) | Active | Polymer | 1800 µF | ±20% | 4 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 6.5 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | - | Through Hole |
|
6SVPA120MAACAP ALUM POLY 120UF 20% 6.3V SMD |
1,803 |
|
Datasheet |
OS-CON™, SVPA | Tape & Reel (TR) | Active | Polymer | 120 µF | ±20% | 6.3 V | 22mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 128.5 mA @ 120 Hz | 2.57 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
|
6SVPA47MAACAP ALUM POLY 47UF 20% 6.3V SMD |
1,703 |
|
Datasheet |
OS-CON™, SVPA | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 6.3 V | 30mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 98.5 mA @ 120 Hz | 1.97 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.236" (6.00mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
PCX1E220MCL1GSCAP ALUM POLY 22UF 20% 25V SMD |
919 |
|
Datasheet |
PCX | Tape & Reel (TR) | Active | Polymer | 22 µF | ±20% | 25 V | 65mOhm | 1500 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | General Purpose | - | - | 900 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
|
PLG0J122MDO1CAP ALUM POLY 1200UF 20% 6.3V TH |
233 |
|
Datasheet |
PLG | Bulk | Active | Polymer | 1200 µF | ±20% | 6.3 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 6.1 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | - | Through Hole |
|
A759KK186M1KAAE075CAP ALUM POLY 18UF 20% 80V TH |
4,993 |
|
Datasheet |
A759 | Bulk | Active | Polymer | 18 µF | ±20% | 80 V | 75mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 52.75 mA @ 120 Hz | 1.055 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole |
