Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Number of Outputs | Voltage - Input | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output 1 | Current - Output 2 | Current - Output 3 | Current - Output 4 | Current - Output 5 | Current - Output 6 | Power (Watts) | Applications | Voltage - Isolation | Operating Temperature | Features | Mounting Type | Size / Dimension |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
LM200-22B36R2-CQENCLOSED AC DC CONVERTERS 212.4W |
0 |
|
![]() Datasheet |
LM200-22BxxR2-CQ (204W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 176 ~ 305 VAC, 240 ~ 430 VDC | 36V | - | - | - | - | - | 5.9 A | - | - | - | - | - | 212W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.07" L x 3.82" W x 1.18" H (129.0mm x 97.0mm x 30.0mm) |
![]() |
LM200-22B12R2-CQENCLOSED AC DC CONVERTERS 204W 1 |
0 |
|
![]() Datasheet |
LM200-22BxxR2-CQ (204W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 176 ~ 305 VAC, 240 ~ 430 VDC | 12V | - | - | - | - | - | 17 A | - | - | - | - | - | 204W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) |
![]() |
LM200-22B24R2-CQENCLOSED AC DC CONVERTERS 211.2W |
0 |
|
![]() Datasheet |
LM200-22BxxR2-CQ (204W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 176 ~ 305 VAC, 240 ~ 430 VDC | 24V | - | - | - | - | - | 8.8 A | - | - | - | - | - | 211W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.07" L x 3.82" W x 1.18" H (129.0mm x 97.0mm x 30.0mm) |
![]() |
LM200-22B48R2-CQENCLOSED AC DC CONVERTERS 211.2W |
0 |
|
![]() Datasheet |
LM200-22BxxR2-CQ (204W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 176 ~ 305 VAC, 240 ~ 430 VDC | 48V | - | - | - | - | - | 4.4 A | - | - | - | - | - | 211W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.07" L x 3.82" W x 1.18" H (129.0mm x 97.0mm x 30.0mm) |
![]() |
LM200-22B15R2-CQENCLOSED AC DC CONVERTERS 210W 1 |
0 |
|
![]() Datasheet |
LM200-22BxxR2-CQ (204W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 176 ~ 305 VAC, 240 ~ 430 VDC | 15V | - | - | - | - | - | 14 A | - | - | - | - | - | 210W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) |
![]() |
VGS-150C-48AC/DC CONVERTER 48V 158W |
0 |
|
![]() Datasheet |
VGS-150C | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 373 VDC | 48V | - | - | - | - | - | 3.3 A | - | - | - | - | - | 158W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) |
|
LCS100US24AC/DC CONVERTER 24V 108W |
0 |
|
![]() Datasheet |
LCS100 (100W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 373 VDC | 24V | - | - | - | - | - | 4.5 A | - | - | - | - | - | 108W | Household Appliances, ITE (Commercial), Industrial | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.08" L x 3.82" W x 1.18" H (129.0mm x 97.0mm x 30.0mm) |
|
PJ-12V15WBNAAC/DC CONVERTER 12V 15W |
0 |
|
![]() Datasheet |
PJ (15W) | Bulk | Active | Open Frame, Conformal Coated | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 1.3 A | - | - | - | - | - | 15W | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.44" L x 1.97" W x 0.87" H (87.5mm x 50.0mm x 22.0mm) |
![]() |
AMES50-24S277NZAC/DC CONVERTER 24V 53W |
2 |
|
![]() Datasheet |
AMES50-277NZ (53W) | Box | Obsolete | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 24V | - | - | - | - | - | 2.2 A | - | - | - | - | - | 53W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) |
![]() |
PDA15F-24-NAC/DC PS (ENCLOSED TYPE) |
0 |
|
![]() Datasheet |
PDA (15W) | Bulk | Active | Enclosed | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 700 mA | - | - | - | - | - | 15W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.35" L x 3.07" W x 1.36" H (85.1mm x 78.0mm x 34.5mm) |
![]() |
VGS-75C-5-AAC/DC CONVERTER 5V 70W |
0 |
|
![]() Datasheet |
VGS-75C | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 373 VDC | 5V | - | - | - | - | - | 14 A | - | - | - | - | - | 70W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) |
![]() |
SCP-35-24AC/DC CONVERTER 27.6V 39W |
0 |
|
![]() Datasheet |
SCP-35 (35W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 27.6V | - | - | - | - | - | 1.4 A | - | - | - | - | - | 39W | ITE (Commercial) | 3 kV | -20°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.90" L x 3.82" W x 1.42" H (99.0mm x 97.0mm x 36.0mm) |
![]() |
LM75-23B24-CAC/DC CONVERTER 24V 77W |
15 |
|
![]() Datasheet |
LM75-23Bxx-C (75W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 24V | - | - | - | - | - | 3.2 A | - | - | - | - | - | 77W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) |
![]() |

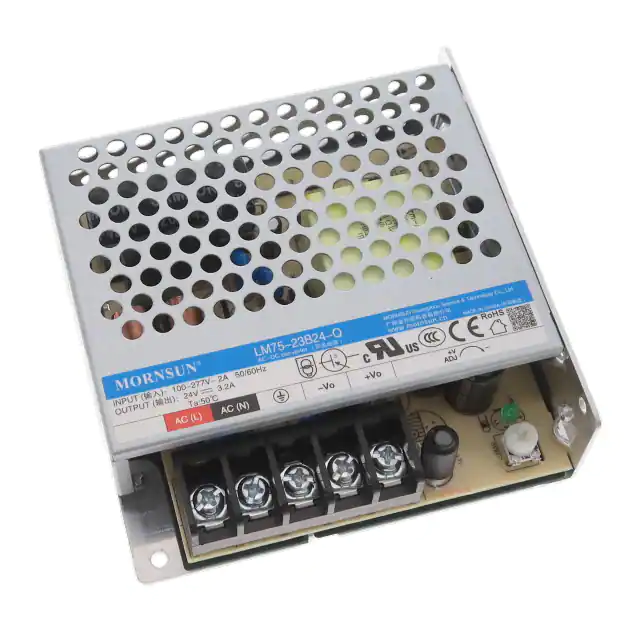

LM75-23B24-QAC/DC CONVERTER 24V 77W |
0 |
|
![]() Datasheet |
LM75-23Bxx-Q (75W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 24V | - | - | - | - | - | 3.2 A | - | - | - | - | - | 77W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) |
![]() |

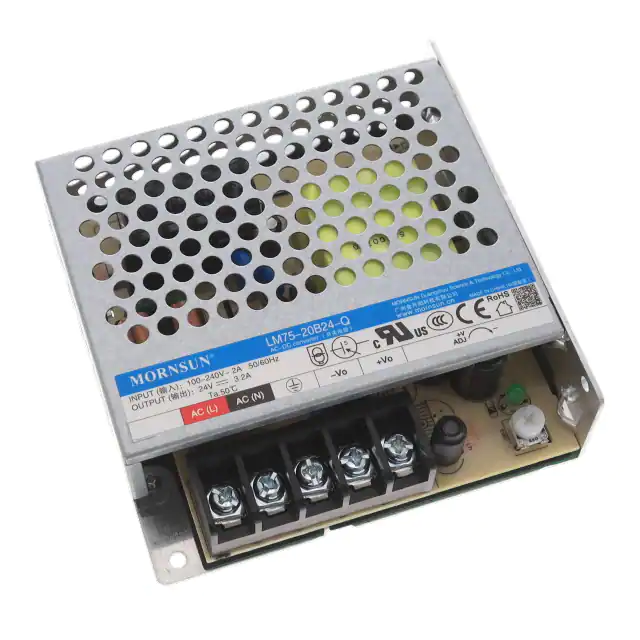

LM75-20B24-QAC/DC CONVERTER 24V 77W |
0 |
|
![]() Datasheet |
LM75-20Bxx-Q (75W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 24V | - | - | - | - | - | 3.2 A | - | - | - | - | - | 77W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) |
![]() |
CFM25S360-TAC/DC CONVERTER 36V 25W |
0 |
|
![]() Datasheet |
CFM25S (25W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 36V | - | - | - | - | - | 700 mA | - | - | - | - | - | 25W | Household Appliances, ITE (Commercial) | 3 kV | -30°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 2.78" L x 1.10" W x 0.91" H (70.5mm x 27.9mm x 23.0mm) |
![]() |
CFM25S480-TAC/DC CONVERTER 48V 25W |
0 |
|
![]() Datasheet |
CFM25S (25W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 520 mA | - | - | - | - | - | 25W | Household Appliances, ITE (Commercial) | 3 kV | -30°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 2.78" L x 1.10" W x 0.91" H (70.5mm x 27.9mm x 23.0mm) |
|
LCS100US15AC/DC CONVERTER 15V 105W |
0 |
|
![]() Datasheet |
LCS100 (100W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 373 VDC | 15V | - | - | - | - | - | 7 A | - | - | - | - | - | 105W | Household Appliances, ITE (Commercial), Industrial | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.08" L x 3.82" W x 1.18" H (129.0mm x 97.0mm x 30.0mm) |
|
LCS100US12AC/DC CONVERTER 12V 102W |
0 |
|
![]() Datasheet |
LCS100 (100W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 373 VDC | 12V | - | - | - | - | - | 8.5 A | - | - | - | - | - | 102W | Household Appliances, ITE (Commercial), Industrial | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.08" L x 3.82" W x 1.18" H (129.0mm x 97.0mm x 30.0mm) |
|
LCS100US48AC/DC CONVERTER 48V 110W |
0 |
|
![]() Datasheet |
LCS100 (100W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 373 VDC | 48V | - | - | - | - | - | 2.3 A | - | - | - | - | - | 110W | Household Appliances, ITE (Commercial), Industrial | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.08" L x 3.82" W x 1.18" H (129.0mm x 97.0mm x 30.0mm) |
