Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Number of Outputs | Voltage - Input | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output 1 | Current - Output 2 | Current - Output 3 | Current - Output 4 | Current - Output 5 | Current - Output 6 | Power (Watts) | Applications | Voltage - Isolation | Operating Temperature | Features | Mounting Type | Size / Dimension |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
AEA600F-24-NAC/DC CONVERTER 24V 600W |
1 |
|
![]() Datasheet |
AEA | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 25 A | - | - | - | - | - | 420W (600W Forced Air) | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 7.32" L x 5.00" W x 1.61" H (185.9mm x 127.0mm x 40.9mm) |
![]() |
AEA600F-36-NAC/DC CONVERTER 36V 600W |
1 |
|
![]() Datasheet |
AEA | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 36V | - | - | - | - | - | 16.7 A | - | - | - | - | - | 421W (601W Forced Air) | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 7.32" L x 5.00" W x 1.61" H (185.9mm x 127.0mm x 40.9mm) |
![]() |
AEA600F-48-NAC/DC CONVERTER 48V 600W |
1 |
|
![]() Datasheet |
AEA | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 48V | - | - | - | - | - | 12.5 A | - | - | - | - | - | 422W (600W Forced Air) | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 7.32" L x 5.00" W x 1.61" H (185.9mm x 127.0mm x 40.9mm) |
![]() |

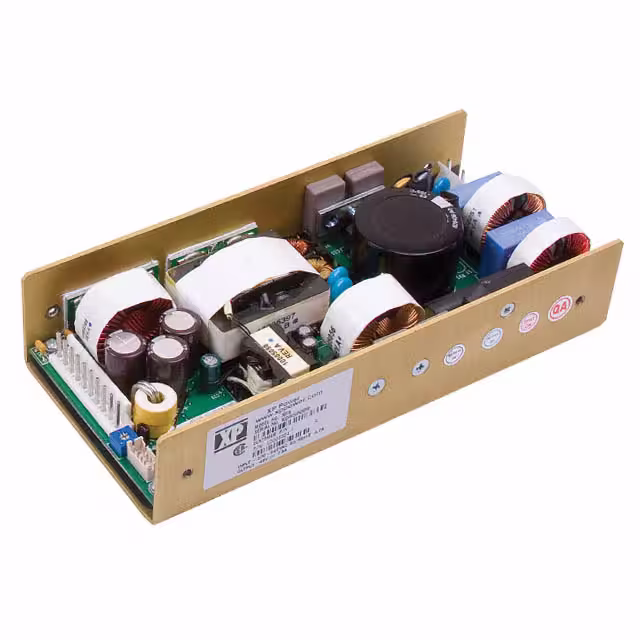

MFA350PS24AC/DC CONVERTER 24V 350W |
0 |
|
![]() Datasheet |
MFA (350W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 14.5 A | - | - | - | - | - | 350W (361W Forced Air) | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, Hot Swappable, Load Sharing, Standby Output, Universal Input | Chassis Mount | 6.80" L x 3.20" W x 1.50" H (172.7mm x 81.3mm x 38.1mm) |
![]() |
CCB250PS12AC/DC CONVERTER 12V 250W |
1 |
|
![]() Datasheet |
CCB250 (250W) | Box | Active | Open Frame | 1 | 80 ~ 275 VAC | 12V | - | - | - | - | - | 20.8 A | - | - | - | - | - | 250W | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 6.00" L x 4.00" W x 1.50" H (152.4mm x 101.6mm x 38.1mm) |
![]() |
CCM250PS48AC/DC CONVERTER 48V 250W |
0 |
|
![]() Datasheet |
CCM (250W) | Box | Active | Open Frame | 1 | 80 ~ 275 VAC | 48V | - | - | - | - | - | 5.2 A | - | - | - | - | - | 250W | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 6.00" L x 4.00" W x 1.54" H (152.4mm x 101.6mm x 39.1mm) |
![]() |
CHB200W12-72S24-CMFD+HDCHASSIS MOUNT, 200W, 12:1 14-160 |
0 |
|
![]() Datasheet |
- | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
![]() |
DPS-1000AB-14 GSLIM TYPE CRPS, 1KW PLATINUM |
0 |
|
![]() Datasheet |
CRPS | Box | Active | Front End | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 83.3 A | - | - | - | - | - | 1000W | ITE (Commercial) | - | 0°C ~ 55°C | PFC, PMBus™, Remote On/Off, Remote Sense, Standby Output, Universal Input | Rack Mount | 9.45" L x 2.15" W x 1.57" H (240.0mm x 54.5mm x 40.0mm) |
![]() |

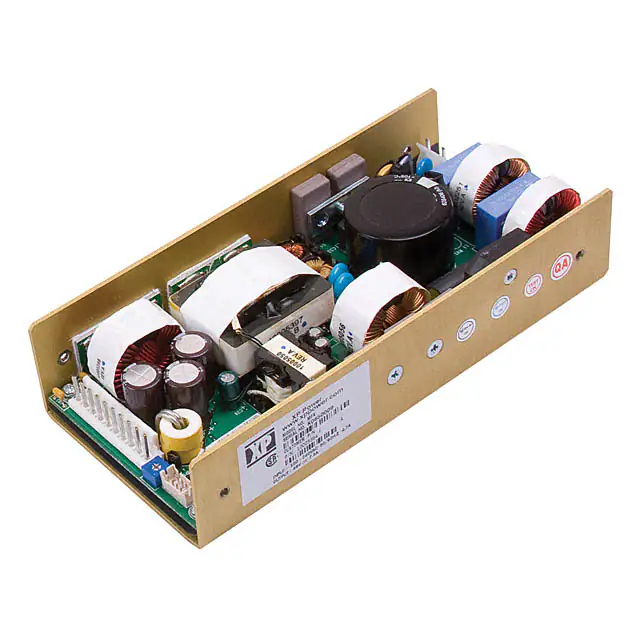

MFA420PS48AC/DC CONVERTER 48V 420W |
0 |
|
![]() Datasheet |
MFA (420W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 48V | - | - | - | - | - | 8.8 A | - | - | - | - | - | 420W (436W Forced Air) | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, Hot Swappable, Load Sharing, Standby Output, Universal Input | Chassis Mount | 6.80" L x 3.20" W x 1.50" H (172.7mm x 81.3mm x 38.1mm) |
![]() |
PDF700S120-CMFCSWITCHING POWER SUPPLIES AC-DC M |
1 |
|
- |
PDF700S CMFC (700W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 50 A | - | - | - | - | - | 600W | ITE (Commercial) | - | -40°C ~ 95°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | - |
![]() |
UHP-1500-380PWR SUPP, BATT & COND |
1 |
|
![]() Datasheet |
UHP-1500-HV (1.5kW) | Bulk | Active | Enclosed | 1 | 90 ~ 264 VAC, 250 ~ 370 VDC | 380V | - | - | - | - | - | 4.5 A | - | - | - | - | - | 1.71kW | ITE (Commercial) | 6 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote On/Off, Universal Input | Chassis Mount | 11.42" L x 5.51" W x 1.61" H (290.0mm x 140.0mm x 41.0mm) |
![]() |
CPA250-4530CGAC/DC CNVRTR 5V 3.3V +/-12V 250W |
0 |
|
![]() Datasheet |
Melcher CPA (250W) | Bulk | Active | Enclosed | 4 | 90 ~ 264 VAC | 5V | 3.3V | 12V | -12V | - | - | 25 A | 20 A | 4 A | 1 A | - | - | 250W | ITE (Commercial) | 3 kV | -25°C ~ 50°C | DC Input Capable, Hot Swappable, Load Sharing, PFC, Remote Sense | Compact PCI® | 5.07" L x 1.60" W x 6.40" H (128.7mm x 40.6mm x 162.5mm) |
![]() |
RWS1000B-24/FOAC/DC CONVERTER 24V 1000W |
1 |
|
![]() Datasheet |
RWS1000B (1000W) | Box | Active | Enclosed | 1 | 85 ~ 265 VAC, 120 ~ 340 VDC | 24V | - | - | - | - | - | 42 A | - | - | - | - | - | 1008W | ITE (Commercial) | 4 kV | -20°C ~ 60°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, Remote Sense, Universal Input | Chassis Mount | 7.80" L x 5.00" W x 2.48" H (198.1mm x 127.0mm x 63.0mm) |
![]() |
RWS1000B-48/RFOAC/DC CONVERTER 48V 1000W |
1 |
|
![]() Datasheet |
RWS1000B (1000W) | Box | Active | Enclosed | 1 | 85 ~ 265 VAC, 120 ~ 340 VDC | 48V | - | - | - | - | - | 21 A | - | - | - | - | - | 1008W | ITE (Commercial) | 4 kV | -20°C ~ 60°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 7.80" L x 5.00" W x 2.48" H (198.1mm x 127.0mm x 63.0mm) |
![]() |
PDF700S280-CMFDPower Supplies AC-DC Module |
1 |
|
![]() Datasheet |
PDF700S CMFC(D) (700W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 28V | - | - | - | - | - | 21.4 A | - | - | - | - | - | 599W | ITE (Commercial) | - | -40°C ~ 95°C (With Derating) | Adjustable Output, Baseplate, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | - |
![]() |
PDF700S120-CMFDPOWER SUPPLIES AC-DC MODULE,90-2 |
1 |
|
- |
PDF700S CMFC (D) (700W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 50 A | - | - | - | - | - | 600W | ITE (Commercial) | - | -40°C ~ 95°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | - |
![]() |
MBS601-1T48-SLAC/DC CONVERTER 48V 600W |
0 |
|
![]() Datasheet |
MBS601 (600W) | Box | Active | Enclosed | 1 | 85 ~ 305 VAC, 170 ~ 300 VDC | 48V | - | - | - | - | - | 12.5 A | - | - | - | - | - | 600W | Medical | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 9.84" L x 4.92" W x 2.36" H (250.0mm x 125.0mm x 60.0mm) |
|
HWS300-24/MEAC/DC CONVERTER 24V 300W |
1 |
|
![]() Datasheet |
HWS/ME (300W) | Bulk | Active | Enclosed | 1 | 85 ~ 265 VAC | 24V | - | - | - | - | - | 14 A | - | - | - | - | - | 300W | ITE (Commercial), Medical | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 6.50" L x 2.40" W x 3.23" H (165.1mm x 61.0mm x 82.0mm) |
|
HWS300-48/MEAC/DC CONVERTER 48V 300W |
1 |
|
![]() Datasheet |
HWS/ME (300W) | Bulk | Active | Enclosed | 1 | 85 ~ 265 VAC | 48V | - | - | - | - | - | 7 A | - | - | - | - | - | 300W | ITE (Commercial), Medical | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 6.50" L x 3.94" W x 3.23" H (165.1mm x 100.1mm x 82.0mm) |
![]() |
PDF700S280-CMFD-PPower Supplies AC-DC,90-264VAC |
1 |
|
![]() Datasheet |
PDF700S CMFC(D-P) (700W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 28V | - | - | - | - | - | 21.4 A | - | - | - | - | - | 599W | ITE (Commercial) | - | -40°C ~ 95°C (With Derating) | Adjustable Output, Baseplate, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | - |
