Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Number of Outputs | Voltage - Input | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output 1 | Current - Output 2 | Current - Output 3 | Current - Output 4 | Current - Output 5 | Current - Output 6 | Power (Watts) | Applications | Voltage - Isolation | Operating Temperature | Features | Mounting Type | Size / Dimension |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DE300-7AC/DC CONVERTER 12V 300W |
1 |
|
![]() Datasheet |
Tri-Mag, DE300 (300W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 25 A | - | - | - | - | - | 300W | ITE (Commercial) | - | -20°C ~ 65°C | PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.30" W x 2.09" H (127.0mm x 83.8mm x 53.0mm) |
![]() |
VMS-550-24AC/DC CONVERTER 24V 150W |
0 |
|
![]() Datasheet |
VMS-550 (550W) | Tray | Active | Open Frame | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 6.25 A | - | - | - | - | - | 150W (550W Forced Air) | Medical | 4.2 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.50" H (127.0mm x 76.2mm x 38.1mm) |
|
NGB660S48CAC/DC CONVERTER 48V 450W |
0 |
|
![]() Datasheet |
NGB660 (660W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC | 48V | - | - | - | - | - | 9.38 A | - | - | - | - | - | 450W (662W Forced Air) | ITE (Commercial), Medical | 4.5 kV | -20°C ~ 80°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 6.00" L x 4.00" W x 1.55" H (152.4mm x 101.6mm x 39.4mm) |
|
NGB660S24CAC/DC CONVERTER 24V 451W |
0 |
|
![]() Datasheet |
NGB660 (660W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC | 24V | - | - | - | - | - | 18.8 A | - | - | - | - | - | 451W (660W Forced Air) | ITE (Commercial), Medical | 4.5 kV | -20°C ~ 80°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 6.00" L x 4.00" W x 1.55" H (152.4mm x 101.6mm x 39.4mm) |
|
P33-1TAC/DC CONVERTER +/-15V |
1 |
|
![]() Datasheet |
P3 | Box | Active | Enclosed | 2 | 105 ~ 125 VAC | 15V | -15V | - | - | - | - | 100 mA | 100 mA | - | - | - | - | - | ITE (Commercial) | - | -25°C ~ 71°C | - | Chassis Mount | 4.10" L x 2.50" W x 0.88" H (104.1mm x 63.5mm x 22.2mm) |
|

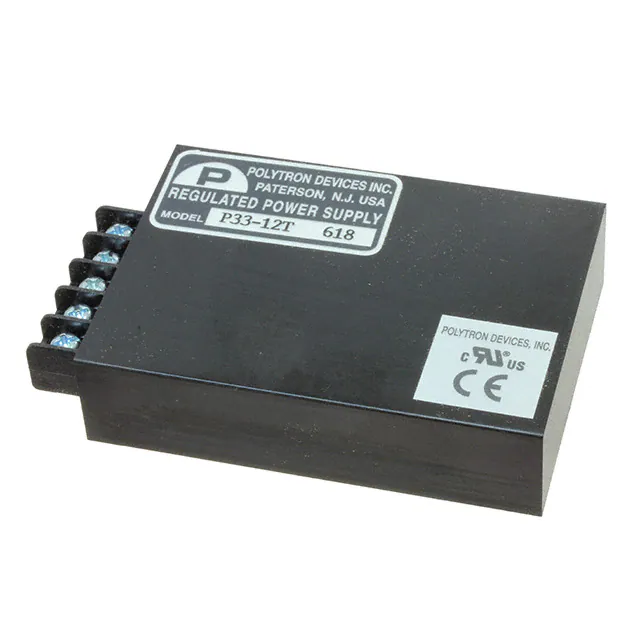

P33-12TAC/DC CONVERTER +/-12V |
1 |
|
![]() Datasheet |
P3 | Box | Active | Enclosed | 2 | 105 ~ 125 VAC | 12V | -12V | - | - | - | - | 100 mA | 100 mA | - | - | - | - | - | ITE (Commercial) | - | -25°C ~ 71°C | - | Chassis Mount | 4.10" L x 2.50" W x 0.88" H (104.1mm x 63.5mm x 22.2mm) |
![]() |
MSP-1000-15AC/DC CONVERTER 15V 960W |
0 |
|
![]() Datasheet |
MSP-1000 (1000W) | Bulk | Active | Enclosed | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 15V | - | - | - | - | - | 64 A | - | - | - | - | - | 960W | Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 8.58" L x 4.13" W x 2.50" H (218.0mm x 105.0mm x 63.5mm) |
|

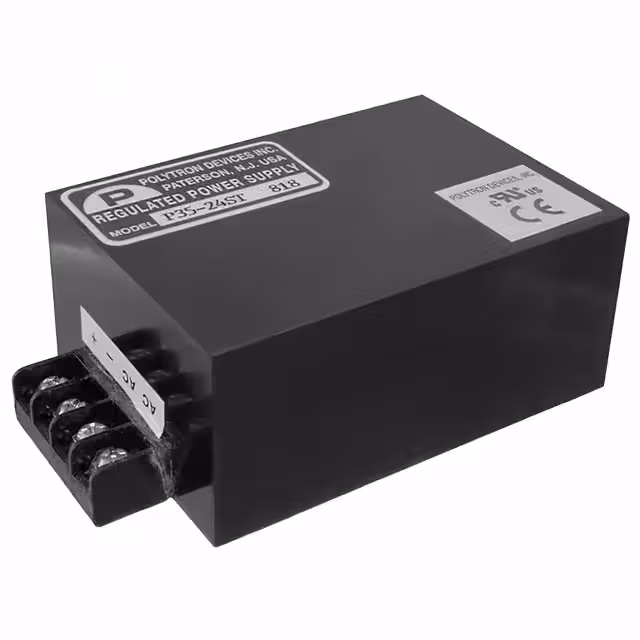

P35-24STAC-DC POWER MODULE 24VDC OUTPUT |
1 |
|
![]() Datasheet |
P3 | Box | Active | Enclosed | 1 | 105 ~ 125 VAC | 24V | - | - | - | - | - | 300 mA | - | - | - | - | - | - | ITE (Commercial) | - | -25°C ~ 71°C | - | Chassis Mount | 4.10" L x 2.50" W x 1.56" H (104.1mm x 63.5mm x 39.6mm) |
![]() |

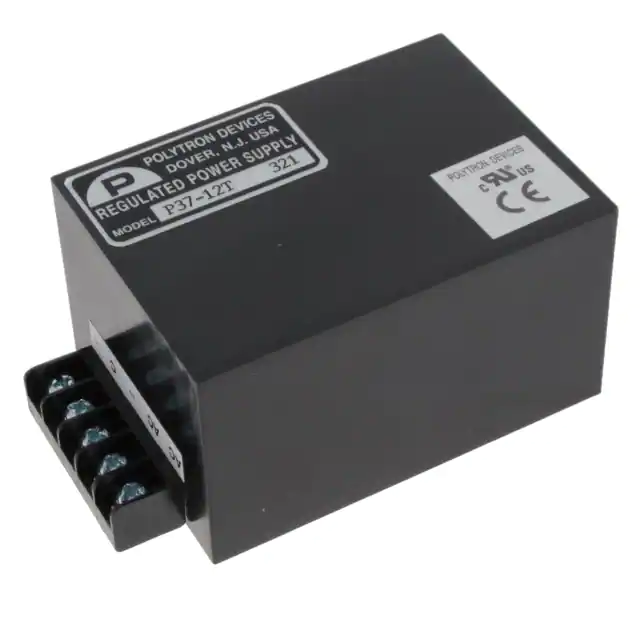

P37-12TAC/DC CONVERTER +/-12V |
0 |
|
![]() Datasheet |
P3 | Bulk | Active | Enclosed | 2 | 105 ~ 125 VAC | 12V | -12V | - | - | - | - | 500 mA | 500 mA | - | - | - | - | - | ITE (Commercial) | - | -25°C ~ 71°C | - | Chassis Mount | 4.10" L x 2.50" W x 2.00" H (104.1mm x 63.5mm x 50.8mm) |
|
FLP0412FPMXXZ01AAC/DC CNVRT 12V 24V 5V 3.3V 450W |
0 |
|
![]() Datasheet |
FLP0412FP (450W) | Box | Active | Open Frame | 4 | 90 ~ 265 VAC | 12V | 24V | 5V | 3.3V | - | - | 37.5 A | 2 A | 12 A | 12 A | - | - | 450W | ITE (Commercial) | 3 kV | -40°C ~ 85°C | Standby Output, Universal Input | Chassis Mount | 7.00" L x 3.00" W x 1.40" H (178.0mm x 76.2mm x 35.6mm) |
![]() |
P38-10SATAC-DC POWER MODULE 10VDC OUTPUT |
0 |
|
![]() Datasheet |
P3 | Bulk | Active | Enclosed | 1 | 105 ~ 125 VAC | 10V | - | - | - | - | - | 1.5 A | - | - | - | - | - | - | ITE (Commercial) | - | -25°C ~ 71°C | - | Chassis Mount | 4.10" L x 2.50" W x 2.00" H (104.1mm x 63.5mm x 50.8mm) |
![]() |
P38-24STAC-DC POWER MODULE 24VDC OUTPUT |
1 |
|
![]() Datasheet |
P3 | Bulk | Active | Enclosed | 1 | 105 ~ 125 VAC | 24V | - | - | - | - | - | 800 mA | - | - | - | - | - | - | ITE (Commercial) | - | -25°C ~ 71°C | - | Chassis Mount | 4.100" L x 2.500" W (104.14mm x 63.50mm) |
![]() |
LCM600W-T-8AC/DC CONVERTER 48V 600W |
0 |
|
![]() Datasheet |
LCM600 (600W) | Bulk | Active | Front End | 1 | 85 ~ 264 VAC | 48V | - | - | - | - | - | 14 A | - | - | - | - | - | 600W | ITE (Commercial), Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 7.50" L x 4.50" W x 2.40" H (190.5mm x 114.3mm x 61.0mm) |
![]() |

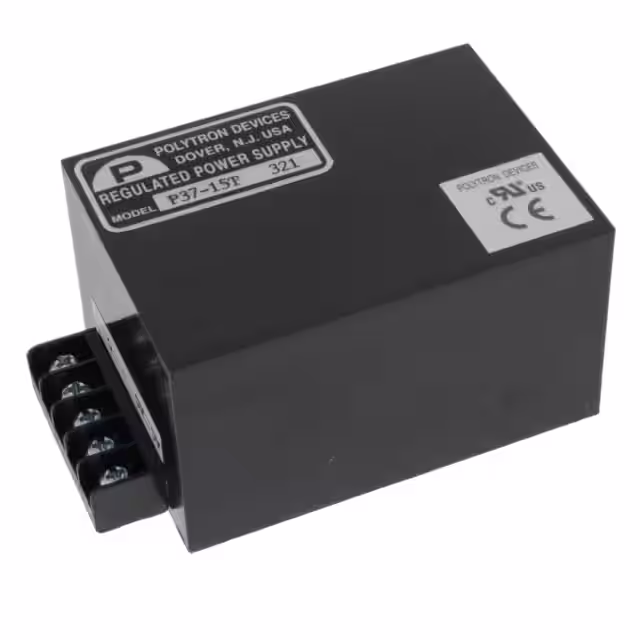

P37-15TAC/DC CONVERTER +/-15V |
1 |
|
![]() Datasheet |
P3 | Bulk | Active | Enclosed | 2 | 105 ~ 125 VAC | 15V | -15V | - | - | - | - | 500 mA | 500 mA | - | - | - | - | - | ITE (Commercial) | - | -25°C ~ 71°C | - | Chassis Mount | 4.10" L x 2.50" W x 2.00" H (104.1mm x 63.5mm x 50.8mm) |
![]() |

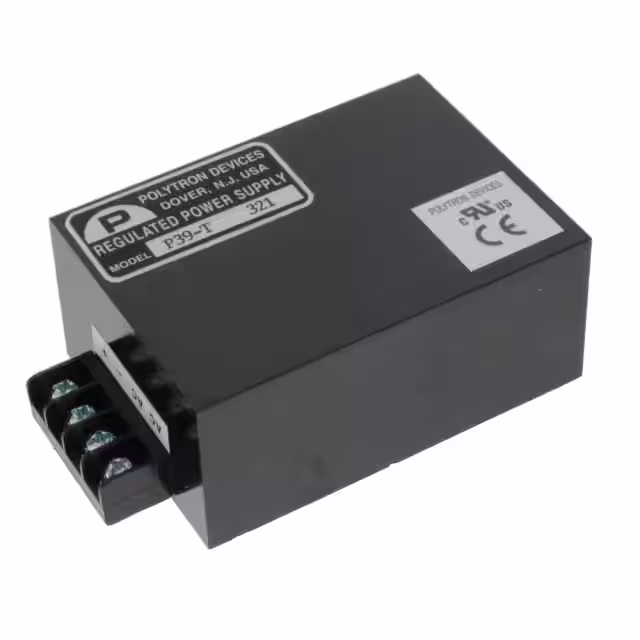

P39TAC-DC POWER MODULE 5VDC OUTPUT |
0 |
|
![]() Datasheet |
P3 | Bulk | Active | Enclosed | 1 | 105 ~ 125 VAC | 5V | - | - | - | - | - | 2 A | - | - | - | - | - | - | ITE (Commercial) | - | -25°C ~ 71°C | - | Chassis Mount | 4.10" L x 2.50" W x 1.56" H (104.1mm x 63.5mm x 39.6mm) |
![]() |

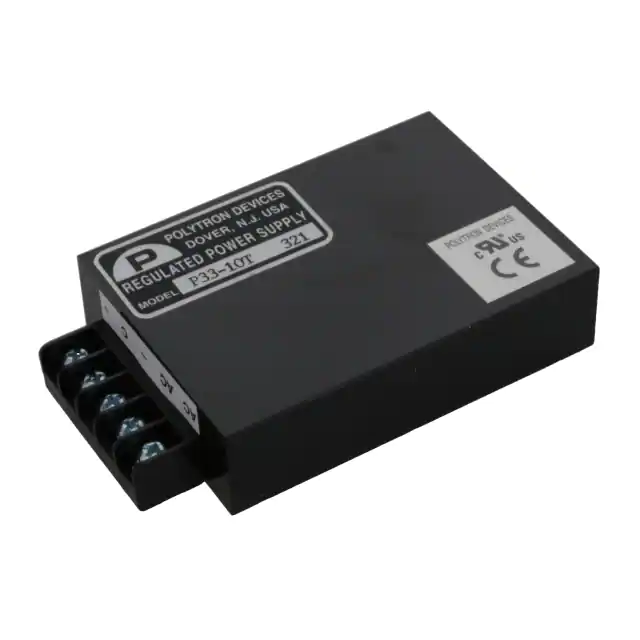

P33-10TAC/DC CONVERTER +/-10V |
0 |
|
![]() Datasheet |
P3 | Bulk | Active | Enclosed | 2 | 105 ~ 125 VAC | 10V | -10V | - | - | - | - | 100 mA | 100 mA | - | - | - | - | - | ITE (Commercial) | - | -25°C ~ 71°C | - | Chassis Mount | 4.10" L x 2.50" W x 0.88" H (104.1mm x 63.5mm x 22.2mm) |
![]() |

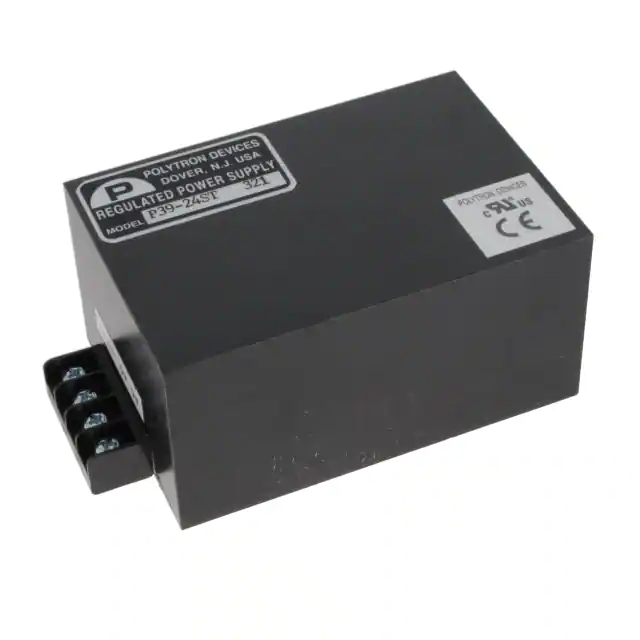

P39-24STAC-DC POWER MODULE 24VDC OUTPUT |
0 |
|
![]() Datasheet |
P3 | Bulk | Active | Enclosed | 1 | 105 ~ 125 VAC | 24V | - | - | - | - | - | 1 A | - | - | - | - | - | - | ITE (Commercial) | - | -25°C ~ 71°C | - | Chassis Mount | 4.100" L x 2.500" W (104.14mm x 63.50mm) |
![]() |
D1U54P-W-450-12-HB4CAC/DC CONVERTER 12V 450W |
0 |
|
![]() Datasheet |
D1U54P-W-450 (450W) | Box | Active | Front End | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 37.5 A | - | - | - | - | - | 450W | ITE (Commercial) | 3 kV | -5°C ~ 50°C | Hot Swappable, I2C Interface, Load Sharing, PFC, PMBus™, Remote On/Off, Remote Sense, Standby Output, Universal Input | Rack Mount | 9.00" L x 2.15" W x 1.57" H (228.6mm x 54.6mm x 39.9mm) |
![]() |
AEA600F-24AC/DC CONVERTER 24V 420W |
0 |
|
![]() Datasheet |
AEA | Bulk | Active | Enclosed | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 25 A | - | - | - | - | - | 420W (600W Forced Air) | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 7.32" L x 5.00" W x 1.61" H (185.9mm x 127.0mm x 40.9mm) |
![]() |
AEA600F-48AC/DC CONVERTER 48V 422W |
0 |
|
![]() Datasheet |
AEA | Bulk | Active | Enclosed | 1 | 85 ~ 264 VAC | 48V | - | - | - | - | - | 12.5 A | - | - | - | - | - | 422W (600W Forced Air) | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 7.32" L x 5.00" W x 1.61" H (185.9mm x 127.0mm x 40.9mm) |
