Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Number of Outputs | Voltage - Input | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output 1 | Current - Output 2 | Current - Output 3 | Current - Output 4 | Current - Output 5 | Current - Output 6 | Power (Watts) | Applications | Voltage - Isolation | Operating Temperature | Features | Mounting Type | Size / Dimension |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
LM100-23B05R2AC/DC CONVERTER 5V 90W |
20 |
|
![]() Datasheet |
LM-R2 | Box | Not For New Designs | Enclosed | 1 | 80 ~ 305 VAC, 100 ~ 430 VDC | 5V | - | - | - | - | - | 18 A | - | - | - | - | - | 90W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) |
![]() |
LM100-23B15R2AC/DC CONVERTER 15V 105W |
19 |
|
![]() Datasheet |
LM-R2 | Box | Not For New Designs | Enclosed | 1 | 80 ~ 305 VAC, 100 ~ 430 VDC | 15V | - | - | - | - | - | 7 A | - | - | - | - | - | 105W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) |
![]() |
LM100-23B12R2AC/DC CONVERTER 12V 102W |
15 |
|
![]() Datasheet |
LM-R2 | Box | Not For New Designs | Enclosed | 1 | 80 ~ 305 VAC, 100 ~ 430 VDC | 12V | - | - | - | - | - | 8.5 A | - | - | - | - | - | 102W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) |
![]() |
LM100-23B24R2AC/DC CONVERTER 24V 108W |
7 |
|
![]() Datasheet |
LM-R2 | Box | Not For New Designs | Enclosed | 1 | 80 ~ 305 VAC, 100 ~ 430 VDC | 24V | - | - | - | - | - | 4.5 A | - | - | - | - | - | 108W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) |
![]() |
35ACPE_12S4ENCLOSED AC DC CONVERTERS 1 OUTP |
68 |
|
![]() Datasheet |
35ACPE_4 s (35W) | Retail Package | Obsolete | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 373 VDC | 12V | - | - | - | - | - | 3 A | - | - | - | - | - | 36W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.90" L x 3.22" W x 1.18" H (99.0mm x 81.9mm x 29.9mm) |
![]() |

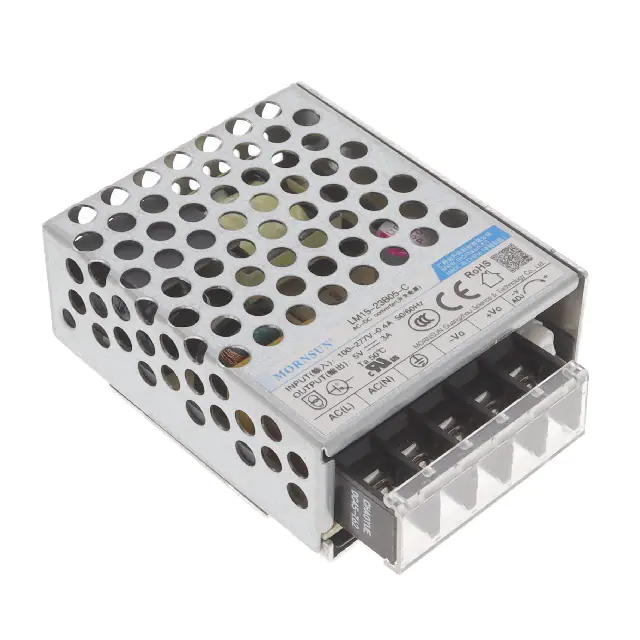

LM15-23B05-CAC/DC CONVERTER 5V 15W |
49 |
|
![]() Datasheet |
LM15-23Bxx-C (15W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 5V | - | - | - | - | - | 3 A | - | - | - | - | - | 15W | ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 2.56" L x 2.17" W x 0.98" H (65.0mm x 55.0mm x 25.0mm) |
![]() |
LM15-23B12-QAC/DC CONVERTER 12V 16W |
30 |
|
![]() Datasheet |
LM15-23Bxx-Q (15W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 12V | - | - | - | - | - | 1.3 A | - | - | - | - | - | 16W | ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 2.56" L x 2.17" W x 0.98" H (65.0mm x 55.0mm x 25.0mm) |
![]() |
LM15-23B12-CAC/DC CONVERTER 12V 16W |
22 |
|
![]() Datasheet |
LM15-23Bxx-C (15W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 12V | - | - | - | - | - | 1.3 A | - | - | - | - | - | 16W | ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 2.56" L x 2.17" W x 0.98" H (65.0mm x 55.0mm x 25.0mm) |
![]() |
VGS-50C-5AC/DC CONVERTER 5V 50W |
72 |
|
![]() Datasheet |
VGS-50C | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 373 VDC | 5V | - | - | - | - | - | 10 A | - | - | - | - | - | 50W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) |
![]() |
LO30-23B24EAC/DC CONVERTER 24V 31W |
33 |
|
![]() Datasheet |
LO30-23BxxE (30W) | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 305 VAC, 88 ~ 430 VDC | 24V | - | - | - | - | - | 1.3 A | - | - | - | - | - | 31W | ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output | Chassis Mount | 4.13" L x 1.97" W x 1.18" H (105.0mm x 50.0mm x 30.0mm) |
![]() |
LO30-23B12EAC/DC CONVERTER 12V 30W |
24 |
|
![]() Datasheet |
LO30-23BxxE (30W) | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 305 VAC, 88 ~ 430 VDC | 12V | - | - | - | - | - | 2.5 A | - | - | - | - | - | 30W | ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output | Chassis Mount | 4.13" L x 1.97" W x 1.18" H (105.0mm x 50.0mm x 30.0mm) |
![]() |
LO30-23B15EAC/DC CONVERTER 15V 30W |
24 |
|
![]() Datasheet |
LO30-23BxxE (30W) | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 305 VAC, 88 ~ 430 VDC | 15V | - | - | - | - | - | 2 A | - | - | - | - | - | 30W | ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output | Chassis Mount | 4.13" L x 1.97" W x 1.18" H (105.0mm x 50.0mm x 30.0mm) |
![]() |
LO30-23B03EAC/DC CONVERTER 3.3V 20W |
12 |
|
![]() Datasheet |
LO30-23BxxE (30W) | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 305 VAC, 88 ~ 430 VDC | 3.3V | - | - | - | - | - | 6 A | - | - | - | - | - | 20W | ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output | Chassis Mount | 4.13" L x 1.97" W x 1.18" H (105.0mm x 50.0mm x 30.0mm) |
![]() |

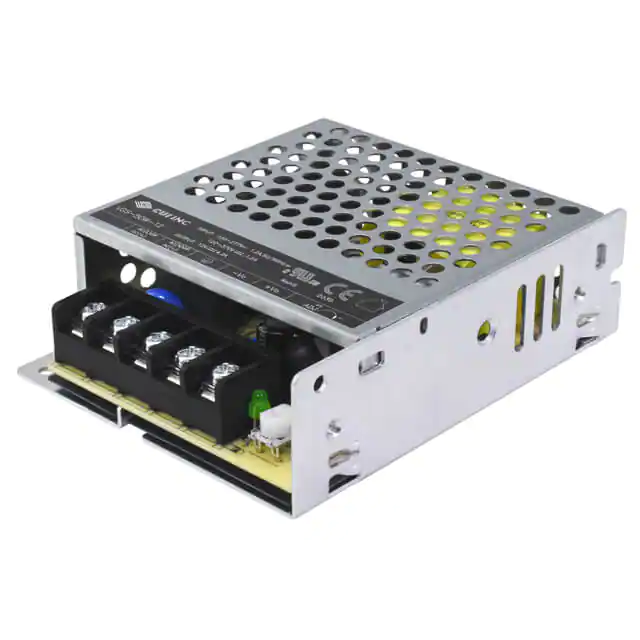

VGS-50W-24AC/DC CONVERTER 24V 52W |
16 |
|
![]() Datasheet |
VGS-50W (50W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 24V | - | - | - | - | - | 2.2 A | - | - | - | - | - | 52W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | - | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) |
![]() |
PSK-5W-9-TAC/DC CONVERTER 9V 5W |
7 |
|
![]() Datasheet |
PSK-5W | Tray | Obsolete | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 9V | - | - | - | - | - | 550 mA | - | - | - | - | - | 5W | ITE (Commercial) | 4 kV | -40°C ~ 70°C (With Derating) | - | Chassis Mount | 2.99" L x 1.24" W x 0.95" H (76.0mm x 31.5mm x 24.2mm) |
![]() |
LM15-23B03-QAC/DC CONVERTER 3.3V 10W |
15 |
|
![]() Datasheet |
LM15-23Bxx-Q (15W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 3.3V | - | - | - | - | - | 3 A | - | - | - | - | - | 10W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 2.56" L x 2.17" W x 0.98" H (65.0mm x 55.0mm x 25.0mm) |
![]() |
LM15-23B15-QAC/DC CONVERTER 15V 15W |
6 |
|
![]() Datasheet |
LM15-23Bxx-Q (15W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 15V | - | - | - | - | - | 1 A | - | - | - | - | - | 15W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 2.56" L x 2.17" W x 0.98" H (65.0mm x 55.0mm x 25.0mm) |
![]() |
LM15-23B15-CAC/DC CONVERTER 15V 15W |
6 |
|
![]() Datasheet |
LM15-23Bxx-C (15W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 15V | - | - | - | - | - | 1 A | - | - | - | - | - | 15W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 2.56" L x 2.17" W x 0.98" H (65.0mm x 55.0mm x 25.0mm) |
![]() |
LM35-20B05AC/DC CONVERTER 5V 35W |
94 |
|
![]() Datasheet |
LM35-20Bxx (35W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 373 VDC | 5V | - | - | - | - | - | 7 A | - | - | - | - | - | 35W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) |
![]() |
LM35-20B15AC/DC CONVERTER 15V 36W |
52 |
|
![]() Datasheet |
LM35-20Bxx (35W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 373 VDC | 15V | - | - | - | - | - | 2.4 A | - | - | - | - | - | 36W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) |
