Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Number of Outputs | Voltage - Input | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output 1 | Current - Output 2 | Current - Output 3 | Current - Output 4 | Current - Output 5 | Current - Output 6 | Power (Watts) | Applications | Voltage - Isolation | Operating Temperature | Features | Mounting Type | Size / Dimension |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |

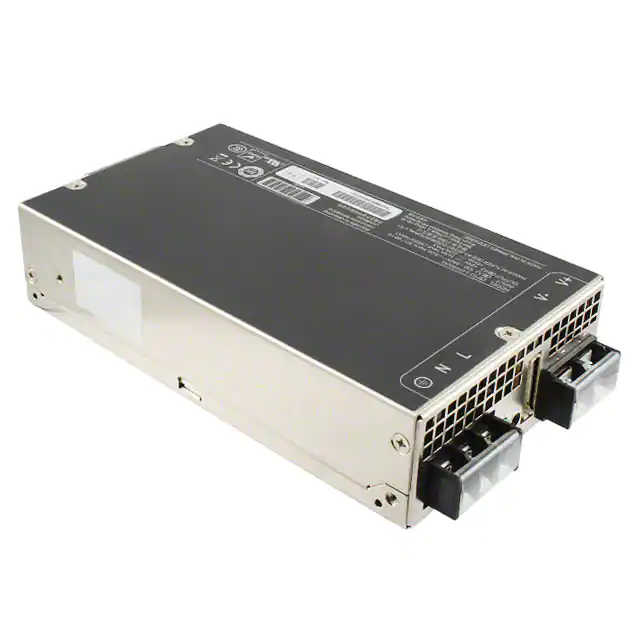

LCM300L-T-2AC/DC CONVERTER 12V 310W |
9 |
|
![]() Datasheet |
LCM300 (310W) | Bulk | Active | Front End | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 25 A | - | - | - | - | - | 310W | ITE (Commercial), Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 7.00" L x 4.00" W x 1.61" H (177.8mm x 101.6mm x 41.0mm) |
![]() |
LCM300Q-T-2AC/DC CONVERTER 24V 310W |
9 |
|
![]() Datasheet |
LCM300 (310W) | Bulk | Active | Front End | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 12.5 A | - | - | - | - | - | 310W | ITE (Commercial), Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 7.00" L x 4.00" W x 1.61" H (177.8mm x 101.6mm x 41.0mm) |
|
MU425S24EAC/DC CONVERTER 24V 300W |
12 |
|
![]() Datasheet |
MU425S (425W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 11.9 A | - | - | - | - | - | 300W (425W Forced Air) | ITE (Commercial) | 1.5 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 6.20" L x 3.30" W x 1.62" H (157.4mm x 83.8mm x 41.1mm) |
![]() |

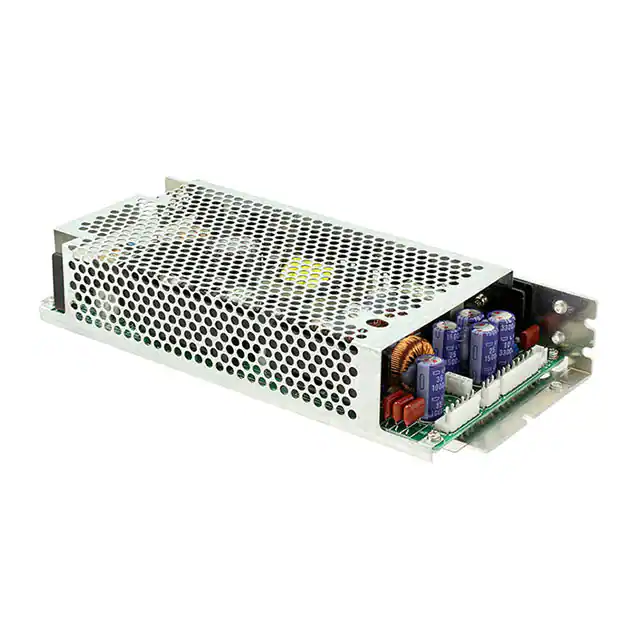

ZWQ80-5225/AAC/DC CONVERTER 5V +/-12V 5V 80W |
2 |
|
![]() Datasheet |
ZWQ (80W) | Bulk | Active | Enclosed | 4 | 85 ~ 265 VAC | 5V | 12V | -12V | 5V | - | - | 8 A | 2 A | 2 A | 7 A | - | - | 80W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 8.27" L x 3.68" W x 1.38" H (210.0mm x 93.5mm x 35.0mm) |
![]() |
EPG300-1348POWER SUPPLY EPG300-1348 |
24 |
|
![]() Datasheet |
EPG300 (300W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 6.25 A | - | - | - | - | - | 200W (300 Forced Air) | ITE (Commercial) | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.47" H (101.6mm x 50.8mm x 37.3mm) |
![]() |
CUS600M-36/ADJAC/DC CONVERTER 6X36V 400W |
12 |
|
![]() Datasheet |
CUS600M (600W) | Box | Active | Open Frame | 6 | 85 ~ 265 VAC | 36V | 36V | 36V | 36V | 36V | 36V | 16.7 A | 16.7 A | 16.7 A | 16.7 A | 16.7 A | 16.7 A | 400W (601W Forced Air) | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote On/Off, Remote Sense, Standby Output | Chassis Mount | 5.00" L x 3.00" W x 1.46" H (127.0mm x 76.2mm x 37.1mm) |
![]() |
CUS600M-12/ADJAC/DC CONVERTER 6X12V 401W |
5 |
|
![]() Datasheet |
CUS600M (600W) | Box | Active | Open Frame | 6 | 85 ~ 265 VAC | 12V | 12V | 12V | 12V | 12V | 12V | 50 A | 50 A | 50 A | 50 A | 50 A | 50 A | 401W (600W Forced Air) | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote On/Off, Remote Sense, Standby Output | Chassis Mount | 5.00" L x 3.00" W x 1.46" H (127.0mm x 76.2mm x 37.1mm) |
|
MAP40-3105GAC/DC CONVERTER 5V 12V -5V 40W |
4 |
|
![]() Datasheet |
MAP40 (40W) | Bulk | Active | Open Frame | 3 | 90 ~ 264 VAC | 5V | 12V | -5V | - | - | - | 3 A | 2 A | 500 mA | - | - | - | 40W | ITE (Commercial) | 2.6 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.25" H (127.0mm x 76.2mm x 31.8mm) |
![]() |
TCI 500-148-T502 WATT ENCASED AC/DC POWER SUP |
9 |
|
![]() Datasheet |
TCI 500 (500W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 48V | - | - | - | - | - | 10.41 A | - | - | - | - | - | 500W | ITE (Commercial) | 4.25 kV | -30°C ~ 70°C | Adjustable Output, Baseplate, DC Input Capable, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.12" L x 3.27" W x 2.45" H (130.0mm x 83.0mm x 62.3mm) |
![]() |
TCI 500-112-T500 WATT ENCASED AC/DC POWER SUP |
8 |
|
![]() Datasheet |
TCI 500 (500W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 12V | - | - | - | - | - | 41.5 A | - | - | - | - | - | 498W | ITE (Commercial) | 4.25 kV | -30°C ~ 70°C | Adjustable Output, Baseplate, DC Input Capable, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.12" L x 3.27" W x 2.45" H (130.0mm x 83.0mm x 62.3mm) |
![]() |
TCI 500-124-T501 WATT ENCASED AC/DC POWER SUP |
4 |
|
![]() Datasheet |
TCI 500 (500W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 24V | - | - | - | - | - | 20.8 A | - | - | - | - | - | 499W | ITE (Commercial) | 4.25 kV | -30°C ~ 70°C | Adjustable Output, Baseplate, DC Input Capable, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.12" L x 3.27" W x 2.45" H (130.0mm x 83.0mm x 62.3mm) |
![]() |
CUS400M-12/FAC/DC CONVERTER 12V 250W |
12 |
|
![]() Datasheet |
CUS400M (400W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 20.83 A | - | - | - | - | - | 250W (400W Forced Air) | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.59" L x 3.54" W x 2.66" H (142.0mm x 90.0mm x 67.5mm) |
![]() |
EPG300-1324POWER SUPPLY EPG300-1324 |
24 |
|
![]() Datasheet |
EPG300 (300W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 12.5 A | - | - | - | - | - | 200W (300 Forced Air) | ITE (Commercial) | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.47" H (101.6mm x 50.8mm x 37.3mm) |
![]() |
EPG300-1312POWER SUPPLY EPG300-1312 |
22 |
|
![]() Datasheet |
EPG300 (300W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 18 A | - | - | - | - | - | 140W (216 Forced Air) | ITE (Commercial) | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.47" H (101.6mm x 50.8mm x 37.3mm) |
![]() |

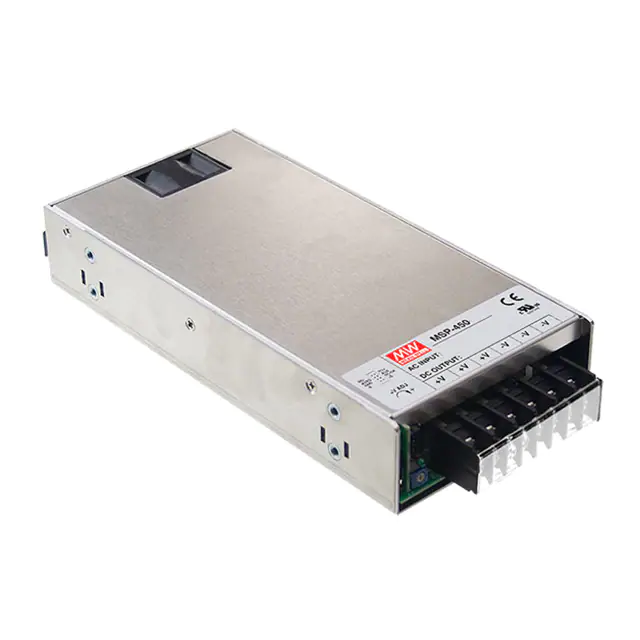

MSP-450-3.3AC/DC CONVERTER 3.3V 297W |
5 |
|
![]() Datasheet |
MSP-450 (450W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 3.3V | - | - | - | - | - | 90 A | - | - | - | - | - | 297W | Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 8.58" L x 4.13" W x 1.61" H (218.0mm x 105.0mm x 41.0mm) |
![]() |
MSP-450-5AC/DC CONVERTER 5V 450W |
4 |
|
![]() Datasheet |
MSP-450 (450W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 5V | - | - | - | - | - | 90 A | - | - | - | - | - | 450W | Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 8.58" L x 4.13" W x 1.61" H (218.0mm x 105.0mm x 41.0mm) |
![]() |
LCM300N-T-4AC/DC CONVERTER 12V 310W |
10 |
|
![]() Datasheet |
LCM300 (310W) | Bulk | Active | Front End | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 20 A | - | - | - | - | - | 310W | ITE (Commercial), Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 7.00" L x 4.00" W x 1.61" H (177.8mm x 101.6mm x 41.0mm) |
![]() |
CCP550PS15-AACDC 550W OPEN FRAME |
10 |
|
![]() Datasheet |
CCP550 (550W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC | 15V | - | - | - | - | - | 36.63 A | - | - | - | - | - | 300W (549W Forced Air) | ITE (Commercial), Medical | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.48" H (127.0mm x 76.2mm x 37.6mm) |
![]() |
CCP550PS36-AACDC 550W OPEN FRAME |
10 |
|
![]() Datasheet |
CCP550 (550W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC | 36V | - | - | - | - | - | 15.27 A | - | - | - | - | - | 300W (550W Forced Air) | ITE (Commercial), Medical | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.48" H (127.0mm x 76.2mm x 37.6mm) |
![]() |
CCP550PS48-AACDC 550W OPEN FRAME |
6 |
|
![]() Datasheet |
CCP550 (550W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC | 48V | - | - | - | - | - | 11.45 A | - | - | - | - | - | 300W (550W Forced Air) | ITE (Commercial), Medical | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.48" H (127.0mm x 76.2mm x 37.6mm) |
