Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Number of Outputs | Voltage - Input | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output 1 | Current - Output 2 | Current - Output 3 | Current - Output 4 | Current - Output 5 | Current - Output 6 | Power (Watts) | Applications | Voltage - Isolation | Operating Temperature | Features | Mounting Type | Size / Dimension |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
LFM200M280CSWITCHING POWER SUPPLIES AC-DC S |
0 |
|
- |
LFM200M (200W) | Tray | Active | Enclosed | 1 | 85 ~ 264 VAC, 115 ~ 370 VDC | 28V | - | - | - | - | - | 7.14 A | - | - | - | - | - | 170W (200W Forced Air) | Household Appliances, ITE (Commercial), Medical | 4.25 kV | -40°C ~ 80°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Standby Output, Universal Input | Chassis Mount | 3.09" L x 2.28" W x 1.00" H (78.5mm x 57.9mm x 25.4mm) |
![]() |
180ACMOP_12SC4OPEN FRAME AC DC CONVERTERS 1 OU |
5 |
|
![]() Datasheet |
180ACMOP_S4 (180W) | Retail Package | Active | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | - | - | - | - | - | - | 180W | ITE (Commercial), Medical | 4 kV | 0°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.18" H (127.0mm x 76.2mm x 30.0mm) |
![]() |
180ACMOP_24SC4OPEN FRAME AC DC CONVERTERS 1 OU |
5 |
|
![]() Datasheet |
180ACMOP_S4 (180W) | Retail Package | Active | Open Frame | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | - | - | - | - | - | - | 180W | ITE (Commercial), Medical | 4 kV | 0°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.18" H (127.0mm x 76.2mm x 30.0mm) |
![]() |
HRP-300N3-48PWR SUPP, BATT & COND |
12 |
|
![]() Datasheet |
HRP-300N3 (300W) | Bulk | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 48V | - | - | - | - | - | 7 A | - | - | - | - | - | 336W | ITE (Commercial) | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote Sense, Universal Input | Chassis Mount | 7.83" L x 4.13" W x 1.61" H (199.0mm x 105.0mm x 41.0mm) |
![]() |
TMM 40115CAC/DC CONVERTER 15V 40W |
6 |
|
![]() Datasheet |
TMM 40 (40W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 15V | - | - | - | - | - | 2.66 A | - | - | - | - | - | 40W | Industrial, ITE (Commercial), Medical | 4 kV | -40°C ~ 80°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.41" L x 2.51" W x 1.34" H (112.0mm x 63.8mm x 34.0mm) |
![]() |
CUT75-522/TAC/DC CONVERTER 5V +/-12V 75W |
7 |
|
![]() Datasheet |
CUT75 (75W) | Bulk | Active | Open Frame | 3 | 85 ~ 265 VAC | 5V | 12V | -12V | - | - | - | 8 A | 3 A | 1 A | - | - | - | 75W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.06" H (127.0mm x 76.2mm x 26.9mm) |
![]() |
VS75E-12AC/DC CONVERTER 6X12V 76W |
5 |
|
![]() Datasheet |
VS-E (150W) | Box | Active | Open Frame | 6 | 85 ~ 132 VAC | 12V | 12V | 12V | 12V | 12V | 12V | 6.3 A | 6.3 A | 6.3 A | 6.3 A | 6.3 A | 6.3 A | 76W | ITE (Commercial) | 2 kV | -10°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 5.91" L x 1.97" W x 1.14" H (150.1mm x 50.0mm x 29.0mm) |
![]() |
RPS-500-15AC/DC CONVERTER 15V 320W |
10 |
|
![]() Datasheet |
RPS-500 (500W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC, 113 ~ 370 VDC | 15V | - | - | - | - | - | 21.3 A | - | - | - | - | - | 320W (500W Forced Air) | Medical | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.69" H (127.0mm x 76.2mm x 43.0mm) |
![]() |
TML 40115CAC/DC CONVERTER 15V 40W |
10 |
|
![]() Datasheet |
TML (40W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC, 100 ~ 375 VDC | 15V | - | - | - | - | - | 2.666 A | - | - | - | - | - | 40W | ITE (Commercial) | 3 kV | -40°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.41" L x 2.50" W x 1.28" H (112.0mm x 63.5mm x 32.5mm) |
![]() |

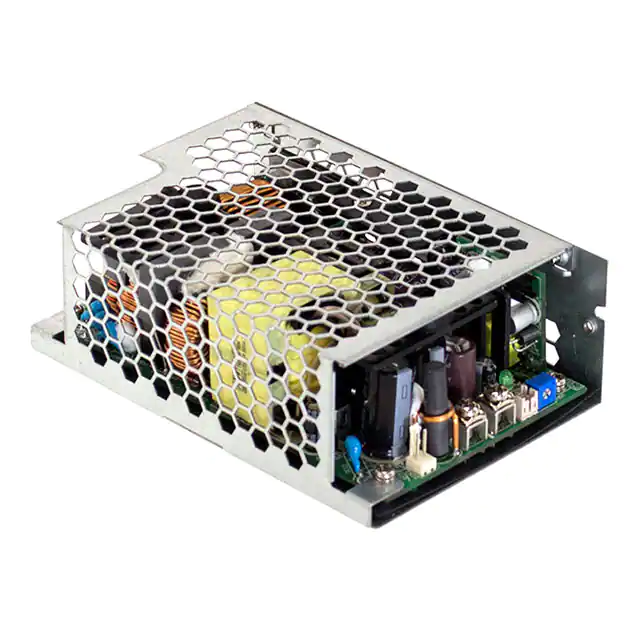

RPS-500-36-CAC/DC CONVERTER 36V 310W |
5 |
|
![]() Datasheet |
RPS-500 (500W) | Box | Active | Enclosed | 1 | 80 ~ 264 VAC, 113 ~ 370 VDC | 36V | - | - | - | - | - | 8.6 A | - | - | - | - | - | 310W (500W Forced Air) | Medical | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote Sense, Universal Input | Chassis Mount | 5.12" L x 3.39" W x 1.69" H (130.0mm x 86.0mm x 43.0mm) |
![]() |
RPS-500-15-CAC/DC CONVERTER 15V 311W |
4 |
|
![]() Datasheet |
RPS-500 (500W) | Box | Active | Enclosed | 1 | 80 ~ 264 VAC, 113 ~ 370 VDC | 15V | - | - | - | - | - | 20.7 A | - | - | - | - | - | 311W (500W Forced Air) | Medical | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote Sense, Universal Input | Chassis Mount | 5.12" L x 3.39" W x 1.69" H (130.0mm x 86.0mm x 43.0mm) |
![]() |
UHP-500-15AC/DC CONVERTER 15V 501W |
16 |
|
![]() Datasheet |
UHP-500 (500W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 15V | - | - | - | - | - | 33.4 A | - | - | - | - | - | 501W | Household Appliances, ITE (Commercial) | 3.75 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 9.13" L x 3.19" W x 1.22" H (232.0mm x 81.0mm x 31.0mm) |
![]() |
TXM 150-112AC/DC CONVERTER 12V 150W |
22 |
|
![]() Datasheet |
TXM 150 (150W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 12V | - | - | - | - | - | 12.5 A | - | - | - | - | - | 150W | ITE (Commercial) | 3 kV | -20°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.30" L x 3.87" W x 1.14" H (160.0mm x 98.3mm x 29.0mm) |
![]() |
VOFM-250C-12AC-DC, 250 W, 12 VDC, SINGLE OUT |
25 |
|
![]() Datasheet |
VOFM-250C (250W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 20.8 A | - | - | - | - | - | 250W | Medical | 4 kV | -40°C ~ 70°C (With Derating) | PFC, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.28" H (102.0mm x 51.0mm x 32.6mm) |
![]() |
VOFM-250C-24AC-DC, 250 W, 24 VDC, SINGLE OUT |
24 |
|
![]() Datasheet |
VOFM-250C (250W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 10.4 A | - | - | - | - | - | 250W | Medical | 4 kV | -40°C ~ 70°C (With Derating) | PFC, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.28" H (102.0mm x 51.0mm x 32.6mm) |
![]() |

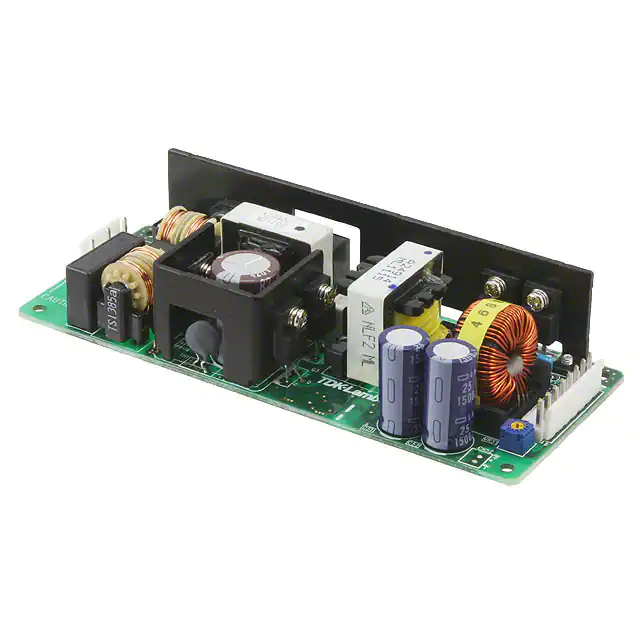

ZWS100BAF-15/LAC/DC CONVERTER 15V 100W |
3 |
|
![]() Datasheet |
ZWS100BAF (100W) | Bulk | Active | Open Frame | 1 | 85 ~ 265 VAC | 15V | - | - | - | - | - | 6.7 A | - | - | - | - | - | 100W | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input | Chassis Mount | 6.10" L x 2.44" W x 1.30" H (155.0mm x 62.0mm x 33.0mm) |
![]() |
TMM 40215CAC/DC CONVERTER +/-15V 40W |
5 |
|
![]() Datasheet |
TMM 40 (40W) | Box | Active | Enclosed | 2 | 85 ~ 264 VAC, 120 ~ 370 VDC | 15V | -15V | - | - | - | - | 1.33 A | 1.33 A | - | - | - | - | 40W | Industrial, ITE (Commercial), Medical | 4 kV | -40°C ~ 80°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.41" L x 2.51" W x 1.34" H (112.0mm x 63.8mm x 34.0mm) |
![]() |
CUT75-5FF/TBAC/DC CONVERTER 5V +/-15V 75W |
9 |
|
![]() Datasheet |
CUT75 (75W) | Bulk | Active | Open Frame | 3 | 85 ~ 265 VAC | 5V | 15V | -15V | - | - | - | 8 A | 2.5 A | 1 A | - | - | - | 75W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Baseplate, DC Input Capable, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.06" H (127.0mm x 76.2mm x 26.9mm) |
![]() |
CUT75-5FF/BAC/DC CONVERTER 5V +/-15V 75W |
8 |
|
![]() Datasheet |
CUT75 (75W) | Bulk | Active | Open Frame | 3 | 85 ~ 265 VAC | 5V | 15V | -15V | - | - | - | 8 A | 2.5 A | 1 A | - | - | - | 75W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Baseplate, DC Input Capable, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.06" H (127.0mm x 76.2mm x 26.9mm) |
![]() |
CUT75-522/BAC/DC CONVERTER 5V +/-12V 75W |
5 |
|
![]() Datasheet |
CUT75 (75W) | Bulk | Active | Open Frame | 3 | 85 ~ 265 VAC | 5V | 12V | -12V | - | - | - | 8 A | 3 A | 1 A | - | - | - | 75W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Baseplate, DC Input Capable, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.06" H (127.0mm x 76.2mm x 26.9mm) |
