Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Number of Outputs | Voltage - Input | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output 1 | Current - Output 2 | Current - Output 3 | Current - Output 4 | Current - Output 5 | Current - Output 6 | Power (Watts) | Applications | Voltage - Isolation | Operating Temperature | Features | Mounting Type | Size / Dimension |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
ZPSA20-9AC/DC CONVERTER 9V 20W |
23 |
|
![]() Datasheet |
ZPSA20 (14-20W) | Bulk | Active | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 9V | - | - | - | - | - | 2.45 A | - | - | - | - | - | 20W | ITE (Commercial) | 3 kV | 0°C ~ 70°C | DC Input Capable, Universal Input | Chassis Mount | 3.50" L x 2.00" W x 0.79" H (88.9mm x 50.8mm x 20.0mm) |
![]() |

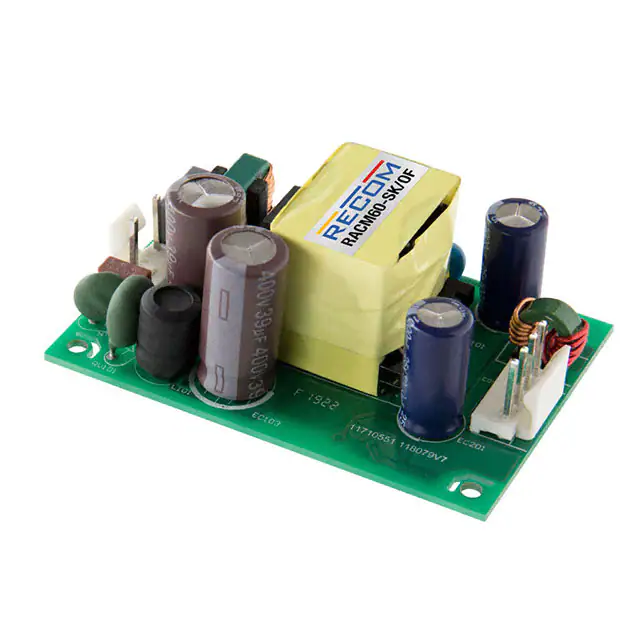

RACM60-12SK/OF/2X4AC/DC CONVERTER 12V 60W |
1 |
|
![]() Datasheet |
POWERLINE RACM60-K/OF (60W) | Bulk | Active | Open Frame | 1 | 80 ~ 264 VAC, 120 ~ 370 VDC | 12V | - | - | - | - | - | 5 A | - | - | - | - | - | 60W | Household Appliances, ITE (Commercial), Medical | 4 kV | -40°C ~ 85°C (With Derating) | Universal Input | Chassis Mount | 4.00" L x 2.09" W x 1.24" H (101.6mm x 53.0mm x 31.5mm) |
![]() |
LFA15F-12AC/DC CONVERTER 12V 15W |
20 |
|
![]() Datasheet |
LFA (15W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 1.3 A | - | - | - | - | - | 15W | ITE (Commercial) | - | -10°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | - |
![]() |
LFA15F-24AC/DC CONVERTER 24V 15W |
11 |
|
![]() Datasheet |
LFA (15W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 700 mA | - | - | - | - | - | 15W | ITE (Commercial) | - | -10°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | - |
![]() |
LFA15F-15AC/DC CONVERTER 15V |
11 |
|
![]() Datasheet |
LFA (15W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 15V | - | - | - | - | - | 1 A | - | - | - | - | - | - | ITE (Commercial) | 3 kV | -10°C ~ 70°C | - | Chassis Mount | 3.44" L x 1.97" W x 0.87" H (87.4mm x 50.0mm x 22.1mm) |
![]() |
RACM60-05SK/OFAC/DC CONVERTER 5V 40W |
8 |
|
![]() Datasheet |
POWERLINE RACM60-K/OF (60W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC, 120 ~ 370 VDC | 5V | - | - | - | - | - | 8 A | - | - | - | - | - | 40W | Household Appliances, ITE (Commercial), Medical | 4 kV | -40°C ~ 85°C (With Derating) | Universal Input | Chassis Mount | 3.09" L x 2.09" W x 1.24" H (78.4mm x 53.0mm x 31.5mm) |
![]() |
LFA10F-15-SNAC/DC CONVERTER 15V |
14 |
|
![]() Datasheet |
LFA (10W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 15V | - | - | - | - | - | 700 mA | - | - | - | - | - | - | ITE (Commercial) | 3 kV | -10°C ~ 70°C | - | Chassis Mount | 2.89" L x 1.97" W x 0.87" H (73.4mm x 50.0mm x 22.1mm) |
![]() |

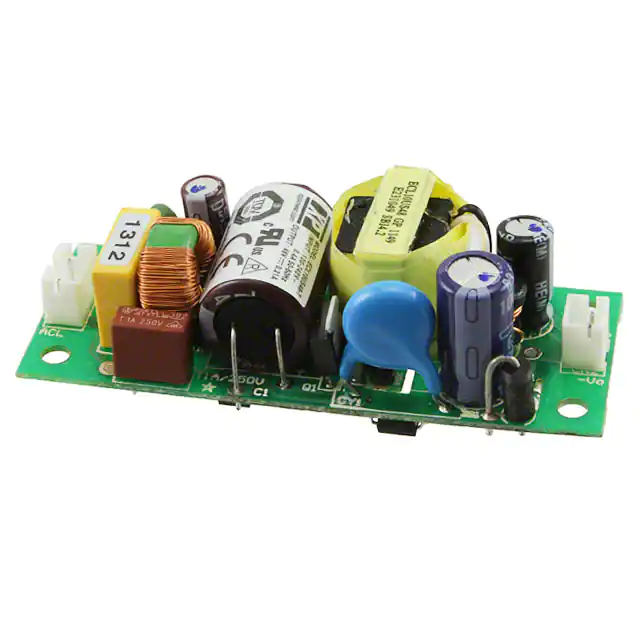

ECL10US48-TAC/DC CONVERTER 48V 10W |
22 |
|
![]() Datasheet |
ECL (10W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 48V | - | - | - | - | - | 210 mA | - | - | - | - | - | 10W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.46" L x 1.36" W x 0.88" H (87.9mm x 34.6mm x 22.4mm) |
![]() |

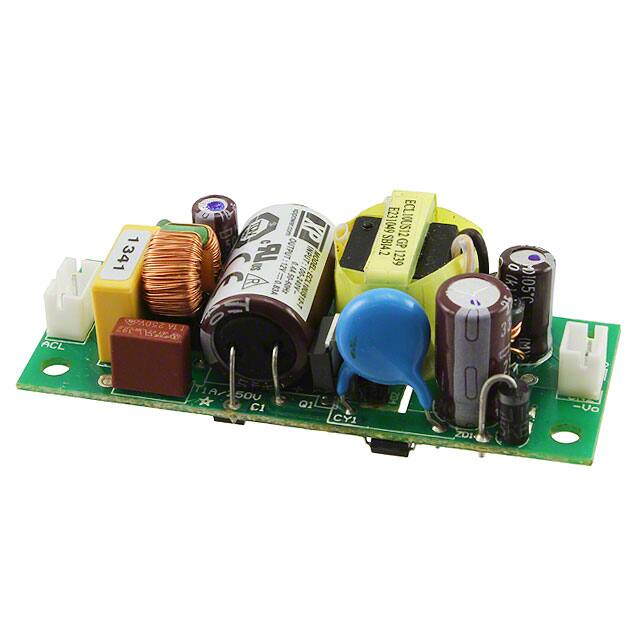

ECL10US12-TAC/DC CONVERTER 12V 10W |
14 |
|
![]() Datasheet |
ECL (10W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 1.08 A | - | - | - | - | - | 10W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.46" L x 1.36" W x 0.88" H (87.9mm x 34.6mm x 22.4mm) |
![]() |

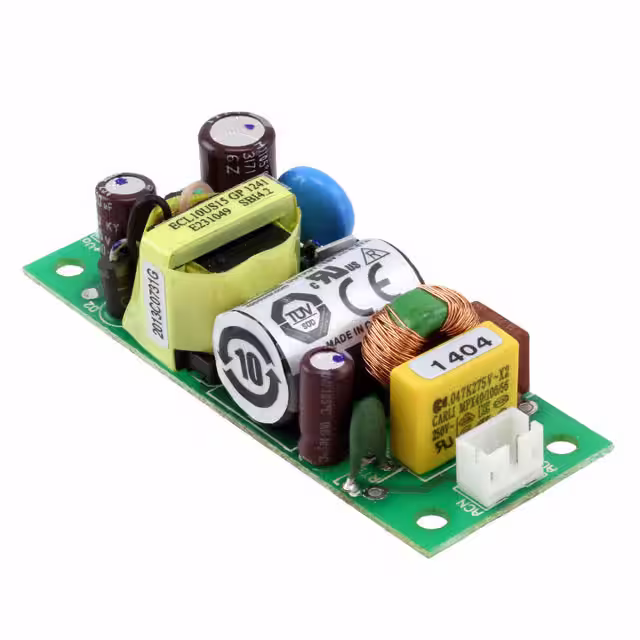

ECL10US15-TAC/DC CONVERTER 15V 10W |
8 |
|
![]() Datasheet |
ECL (10W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 15V | - | - | - | - | - | 670 mA | - | - | - | - | - | 10W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.46" L x 1.36" W x 0.88" H (87.9mm x 34.6mm x 22.4mm) |
![]() |

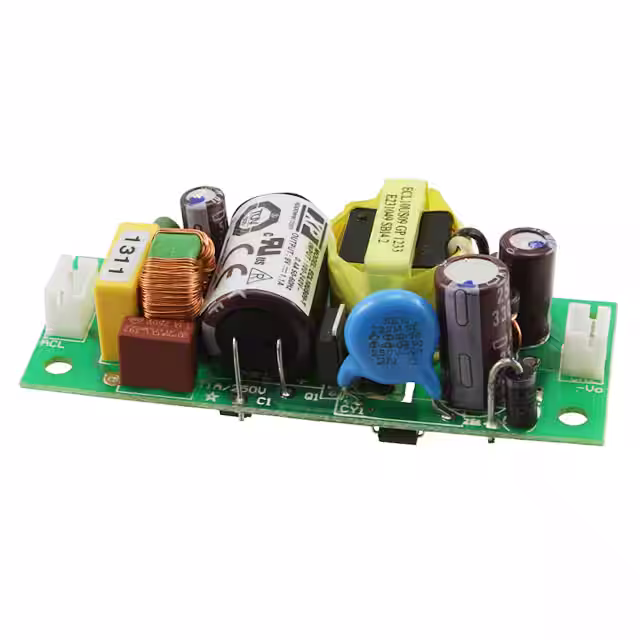

ECL10US09-TAC/DC CONVERTER 9V 10W |
7 |
|
![]() Datasheet |
ECL (10W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 9V | - | - | - | - | - | 1.1 A | - | - | - | - | - | 10W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.46" L x 1.36" W x 0.88" H (87.9mm x 34.6mm x 22.4mm) |
![]() |
TXM 015-112AC/DC CONVERTER 12V 16W |
17 |
|
![]() Datasheet |
TXM 015 (15W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 127 ~ 375 VDC | 12V | - | - | - | - | - | 1.3 A | - | - | - | - | - | 16W | ITE (Commercial) | 3 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.11" L x 2.01" W x 1.13" H (79.0mm x 51.0mm x 28.8mm) |
![]() |
TXLN 018-124AC/DC CONVERTER 24V 18W |
83 |
|
![]() Datasheet |
TXLN 018 (18W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 375 VDC | 24V | - | - | - | - | - | 750 mA | - | - | - | - | - | 18W | ITE (Commercial) | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 2.44" L x 2.00" W x 1.10" H (62.0mm x 50.8mm x 28.0mm) |
![]() |
TXM 015-103AC/DC CONVERTER 3.3V 13W |
16 |
|
![]() Datasheet |
TXM 015 (15W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 127 ~ 375 VDC | 3.3V | - | - | - | - | - | 4 A | - | - | - | - | - | 13W | ITE (Commercial) | 3 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.11" L x 2.01" W x 1.13" H (79.0mm x 51.0mm x 28.8mm) |
![]() |
LFA10F-5-SNAC/DC CONVERTER 5V |
10 |
|
![]() Datasheet |
LFA (10W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 5V | - | - | - | - | - | 2 A | - | - | - | - | - | - | ITE (Commercial) | 3 kV | -10°C ~ 70°C | - | Chassis Mount | 2.89" L x 1.97" W x 0.87" H (73.4mm x 50.0mm x 22.1mm) |
![]() |
TXM 015-124AC/DC CONVERTER 24V 17W |
28 |
|
![]() Datasheet |
TXM 015 (15W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 127 ~ 375 VDC | 24V | - | - | - | - | - | 700 mA | - | - | - | - | - | 17W | ITE (Commercial) | 3 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.11" L x 2.01" W x 1.13" H (79.0mm x 51.0mm x 28.8mm) |
![]() |
TXM 015-105AC/DC CONVERTER 5V 15W |
17 |
|
![]() Datasheet |
TXM 015 (15W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 127 ~ 375 VDC | 5V | - | - | - | - | - | 3 A | - | - | - | - | - | 15W | ITE (Commercial) | 3 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.11" L x 2.01" W x 1.13" H (79.0mm x 51.0mm x 28.8mm) |
![]() |
TXLN 018-112AC/DC CONVERTER 12V 18W |
66 |
|
![]() Datasheet |
TXLN 018 (18W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 375 VDC | 12V | - | - | - | - | - | 1.5 A | - | - | - | - | - | 18W | ITE (Commercial) | 3 kV | -20°C ~ 70°C | Adjustable Output, Universal Input | Chassis Mount | 2.44" L x 2.00" W x 1.10" H (62.0mm x 50.8mm x 28.0mm) |
![]() |
CFM60S300AC/DC CONVERTER 30V 60W |
44 |
|
![]() Datasheet |
CFM60S (60W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 30V | - | - | - | - | - | 2 A | - | - | - | - | - | 60W | ITE (Commercial) | 4.242 kV | 0°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.20" H (101.6mm x 50.8mm x 30.5mm) |
![]() |
CFM60S050AC/DC CONVERTER 5V 40W |
38 |
|
![]() Datasheet |
CFM60S (60W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 5V | - | - | - | - | - | 8 A | - | - | - | - | - | 40W | ITE (Commercial) | 4.242 kV | 0°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.20" H (101.6mm x 50.8mm x 30.5mm) |
