Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Number of Outputs | Voltage - Input | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output 1 | Current - Output 2 | Current - Output 3 | Current - Output 4 | Current - Output 5 | Current - Output 6 | Power (Watts) | Applications | Voltage - Isolation | Operating Temperature | Features | Mounting Type | Size / Dimension |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
TPP 450-124B-MAC/DC CONVERTER 24V 450W |
9 |
|
![]() Datasheet |
TPP 450B-M (450W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 24V | - | - | - | - | - | 18.75 A | - | - | - | - | - | 450W | ITE (Commercial), Medical | 4 kV | -40°C ~ 80°C (With Derating) | Adjustable Output, PFC, Standby Output, Remote On/Off, Universal Input | Chassis Mount | 5.83" L x 3.15" W x 1.60" H (148.1mm x 80.0mm x 40.6mm) |
![]() |
HEP-600-20AC/DC CONVERTER 20V 560W |
5 |
|
![]() Datasheet |
HEP-600 (600W) | Box | Active | Enclosed | 1 | 90 ~ 305 VAC, 127 ~ 431 VDC | 20V | - | - | - | - | - | 28 A | - | - | - | - | - | 560W | ITE (Commercial) | 3.75 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC | Chassis Mount | 11.02" L x 5.67" W x 1.91" H (280.0mm x 144.0mm x 48.5mm) |
![]() |
SE-1500-5AC/DC CONVERTER 5V 1500W |
15 |
|
![]() Datasheet |
SE-1500 (1500W) | Box | Active | Enclosed | 1 | 180 ~ 264 VAC, 254 ~ 370 VDC | 5V | - | - | - | - | - | 300 A | - | - | - | - | - | 1500W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote On/Off, Remote Sense | Chassis Mount | 10.94" L x 7.00" W x 2.50" H (278.0mm x 177.8mm x 63.5mm) |
![]() |
SE-1500-27AC/DC CONVERTER 27V 1501W |
7 |
|
![]() Datasheet |
SE-1500 (1500W) | Box | Active | Enclosed | 1 | 180 ~ 264 VAC, 254 ~ 370 VDC | 27V | - | - | - | - | - | 55.6 A | - | - | - | - | - | 1501W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote On/Off, Remote Sense | Chassis Mount | 10.94" L x 7.00" W x 2.50" H (278.0mm x 177.8mm x 63.5mm) |
![]() |
MEB-750A24B AAA24V/750W ENCLOSED POWER, C14 |
13 |
|
![]() Datasheet |
MEB-750A (750W) | Box | Active | Enclosed, Conformal Coated | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 26.04 A | - | - | - | - | - | 625W | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, I2C Interface, Load Sharing, PFC, PMBus™, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 7.00" L x 4.00" W x 1.57" H (177.8mm x 101.6mm x 40.0mm) |
![]() |
MEB-750A48T AAA48V/750W MEDICAL POWER |
8 |
|
![]() Datasheet |
MEB-750A (750W) | Box | Active | Enclosed, Conformal Coated | 1 | 85 ~ 264 VAC | 48V | - | - | - | - | - | 15.63 A | - | - | - | - | - | 750W | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 7.00" L x 4.00" W x 1.57" H (177.8mm x 101.6mm x 40.0mm) |
![]() |
RSP-1000-15AC/DC CONVERTER 15V 750W |
5 |
|
![]() Datasheet |
RSP-1000 (1000W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 15V | - | - | - | - | - | 50 A | - | - | - | - | - | 750W | ITE (Commercial) | 3 kV | -20°C ~ 60°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Universal Input | Chassis Mount | 11.61" L x 5.00" W x 1.61" H (295.0mm x 127.0mm x 41.0mm) |
![]() |
LCM600L-NAC/DC CONVERTER 12V 600W |
9 |
|
![]() Datasheet |
LCM600 (600W) | Bulk | Active | Front End | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 52 A | - | - | - | - | - | 600W | ITE (Commercial), Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 7.50" L x 4.50" W x 2.40" H (190.5mm x 114.3mm x 61.0mm) |
![]() |
SHP650PS12-EFAC/DC CONVERTER 12V 650W |
8 |
|
![]() Datasheet |
SHP (650W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 50 A | - | - | - | - | - | 650W | ITE (Commercial) | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 9.18" L x 4.00" W x 2.50" H (233.2mm x 101.6mm x 63.5mm) |
|
GWS500-12AC/DC CONVERTER 12V 500W |
3 |
|
![]() Datasheet |
GWS (500W) | Bulk | Active | Enclosed | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 42 A | - | - | - | - | - | 500W | ITE (Commercial) | 3 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 8.58" L x 4.13" W x 1.61" H (218.0mm x 105.0mm x 41.0mm) |
![]() |
EMH350PS18AC/DC CONVERTER 18V 350W |
8 |
|
![]() Datasheet |
EMH (350W) | Box | Active | Open Frame | 1 | 80 ~ 275 VAC | 18V | - | - | - | - | - | 19.5 A | - | - | - | - | - | 350W | ITE (Commercial), Medical | 4 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.43" H (127.0mm x 76.2mm x 36.3mm) |
![]() |

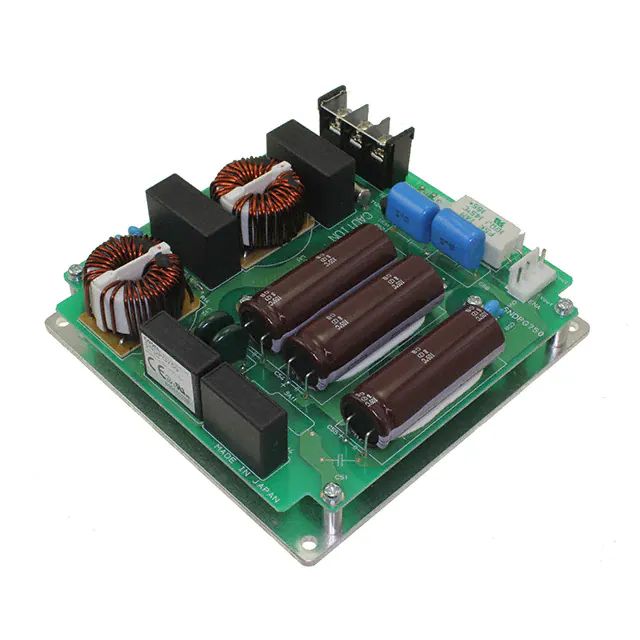

SNDPG750AC/DC CONVERTER 360V |
2 |
|
![]() Datasheet |
SNDPG (750W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 360V | - | - | - | - | - | - | - | - | - | - | - | - | ITE (Commercial) | 2.8 kV | -20°C ~ 95°C | - | Chassis Mount | 5.00" L x 4.92" W x 1.75" H (127.0mm x 125.0mm x 44.5mm) |
![]() |
GHA700F-24-J1AC/DC CONVERTER 24V 401W |
3 |
|
![]() Datasheet |
GHA700F (700W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 16.7 A | - | - | - | - | - | 401W (701W Forced Air) | ITE (Commercial), Medical | 4 kV | -20°C ~ 80°C (With Derating) | Adjustable Output, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.50" H (127.0mm x 76.2mm x 38.0mm) |
![]() |
LCM1000W-T-4AC/DC CONVERTER 48V 1000W |
10 |
|
![]() Datasheet |
LCM1000 (1000W) | Bulk | Active | Front End | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 20.8 A | - | - | - | - | - | 1000W | ITE (Commercial), Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, I2C Interface, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 10.00" L x 5.20" W x 2.43" H (254.0mm x 132.0mm x 61.7mm) |
![]() |
GSP750PS48-EFAC/DC CONVERTER 48V 750W |
3 |
|
![]() Datasheet |
GSP750 (750W) | Box | Active | Enclosed | 1 | 80 ~ 264 VAC | 48V | - | - | - | - | - | 15.6 A | - | - | - | - | - | 750W | ITE (Commercial), Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 10.00" L x 4.00" W x 1.65" H (254.0mm x 101.6mm x 41.9mm) |
![]() |
PBR650PS24CAC/DC CONVERTER 24V 650W |
2 |
|
![]() Datasheet |
PBR650 (650W) | Box | Active | Enclosed | 1 | 80 ~ 264 VAC | 24V | - | - | - | - | - | 27.09 A | - | - | - | - | - | 650W | ITE (Commercial), Medical | 4 kV | -10°C ~ 70°C (With Derating) | Remote Sense, Standby Output, Universal Input | Chassis Mount | 8.00" L x 4.00" W x 2.58" H (203.2mm x 101.6mm x 65.5mm) |
![]() |
TEX 120-124AC/DC CONVERTER 24V 120W |
15 |
|
![]() Datasheet |
TEX (120W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 85 ~ 375 VDC | 24V | - | - | - | - | - | 5 A | - | - | - | - | - | 120W | Hazardous Locations, Industrial, ITE (Commercial), Laboratory | - | -40°C ~ 85°C (With Derating) | Adjustable Output, IP67, Universal Input | Chassis Mount | 6.85" L x 3.66" W x 2.20" H (174.0mm x 93.0mm x 55.9mm) |
![]() |
FCM400PS15AC/DC CONVERTER 15V 400W |
12 |
|
![]() Datasheet |
FCM (400W) | Box | Active | Enclosed | 1 | 80 ~ 275 VAC | 15V | - | - | - | - | - | 26.6 A | - | - | - | - | - | 400W | ITE (Commercial), Medical | 4 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 6.00" L x 4.00" W x 1.93" H (152.4mm x 101.6mm x 49.0mm) |
![]() |
VPS1000-1024AC/DC CONVERTER 24V 1000W |
4 |
|
![]() Datasheet |
VPS1000 (1000W) | Bulk | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 390 VDC | 24V | - | - | - | - | - | 41.67 A | - | - | - | - | - | 1000W | ITE (Commercial) | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.51" L x 5.00" W x 1.61" H (241.5mm x 127.0mm x 41.0mm) |
![]() |
RCP-1000-48-CAC/DC CONVERTER 48V 1008W |
14 |
|
![]() Datasheet |
RCP-1000 (1000W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 48V | - | - | - | - | - | 21 A | - | - | - | - | - | 1008W | ITE (Commercial) | 3 kV | -20°C ~ 60°C (With Derating) | Adjustable Output, I2C Interface, PFC, Remote On/Off, Universal Input | Rack Mount | 11.61" L x 5.00" W x 1.61" H (295.0mm x 127.0mm x 41.0mm) |
